Weights listed are approximate. If you require an exact shipping weight to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
CRL
CRL-U.S. Aluminum 550 Geared Hinge Door Clear Anodized w/ Panic
CRL-U.S. Aluminum 550 Geared Hinge Door Clear Anodized w/ Panic
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ51811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware and one cylinder (SKU: CZ51811)
- Designed for 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accommodated (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements (door widths under 36" / 914 mm may not pass A.D.A. inspection)
- Custom fabricated to accept a wide range of optional hardware applications, including gear hinge and protruding handle assemblies

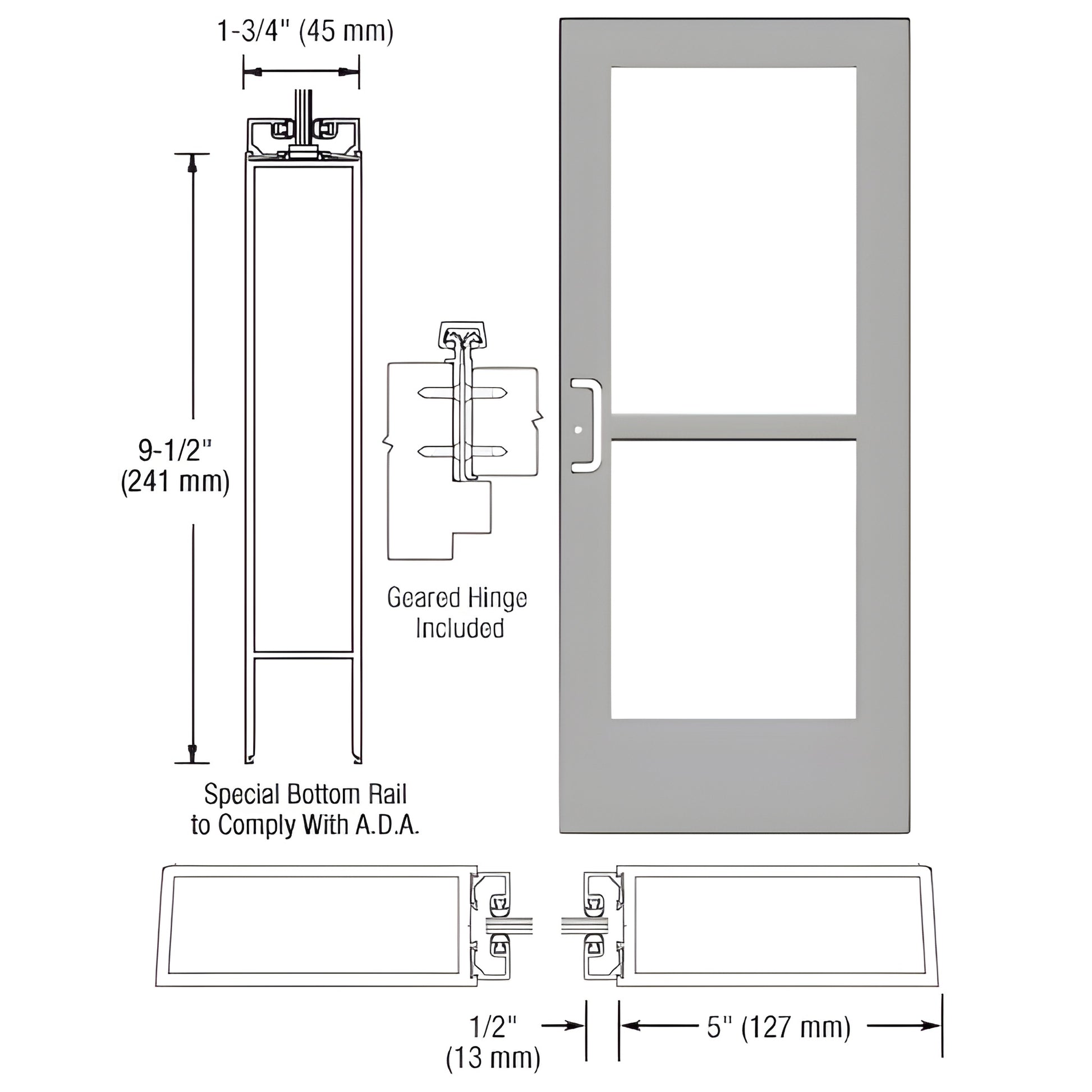

This CRL Custom Wide Stile Entrance Door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail and a 9-1/2" (241 mm) bottom rail. Stiles are prepped for gear hinge hardware and glass stops are set for 1/4" (6 mm) tempered glass supplied by others. Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage.
Order the CZ51811 CRL Custom Wide Stile Entrance Door today for durable, ADA-aware storefront performance — contact us for custom hardware options and exact shipping weight.
Specifications
BIM Objects - rvt
