CRL-U.S. Aluminum 550 Geared Hinge - Wide Stile Black Anodized Panic

• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass sold separately)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
• Custom fabricated to accept a wide range of optional hardware applications
• Includes standard panic pull, hanging hardware, concealed vertical-rod panic hardware, and one cylinder

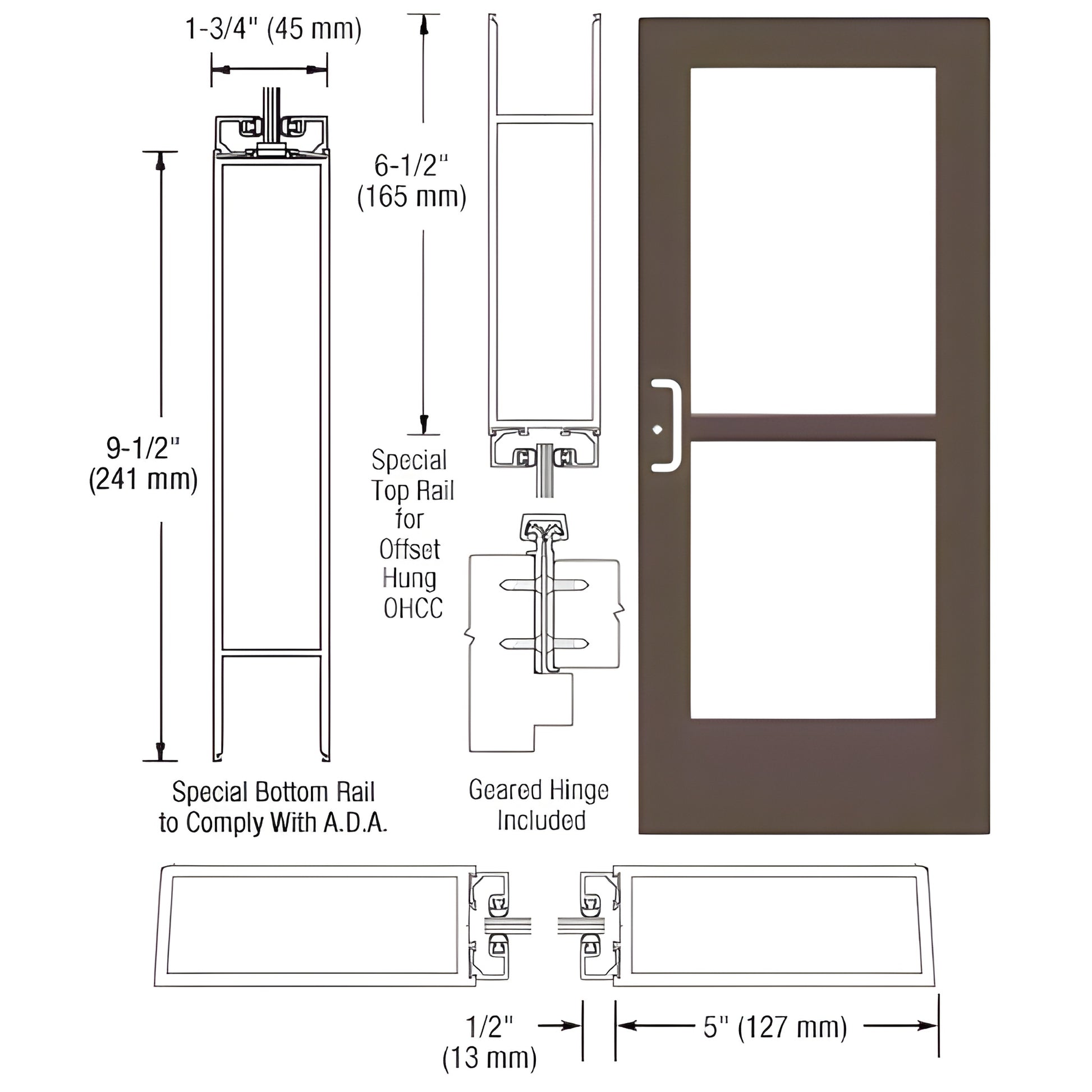

This CRL Custom Wide Stile Entrance Door (SKU: CZ51922) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. The door is supplied with stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). It is ready for custom fabrication to accommodate optional hardware—ideal for commercial entryways that require panic hardware, concealed vertical rod systems, or heavy-duty hanging hardware.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection criteria.

For pricing, lead times, or to request exact shipping weight for SKU CZ51922, contact CRL Customer Service or add the item to your cart to get a shipping estimate.
