CRL-U.S. Aluminum 550 Geared Hinge, Wide Stile — Surface-Mount Closer
CRL-U.S. Aluminum 550 Geared Hinge, Wide Stile — Surface-Mount Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

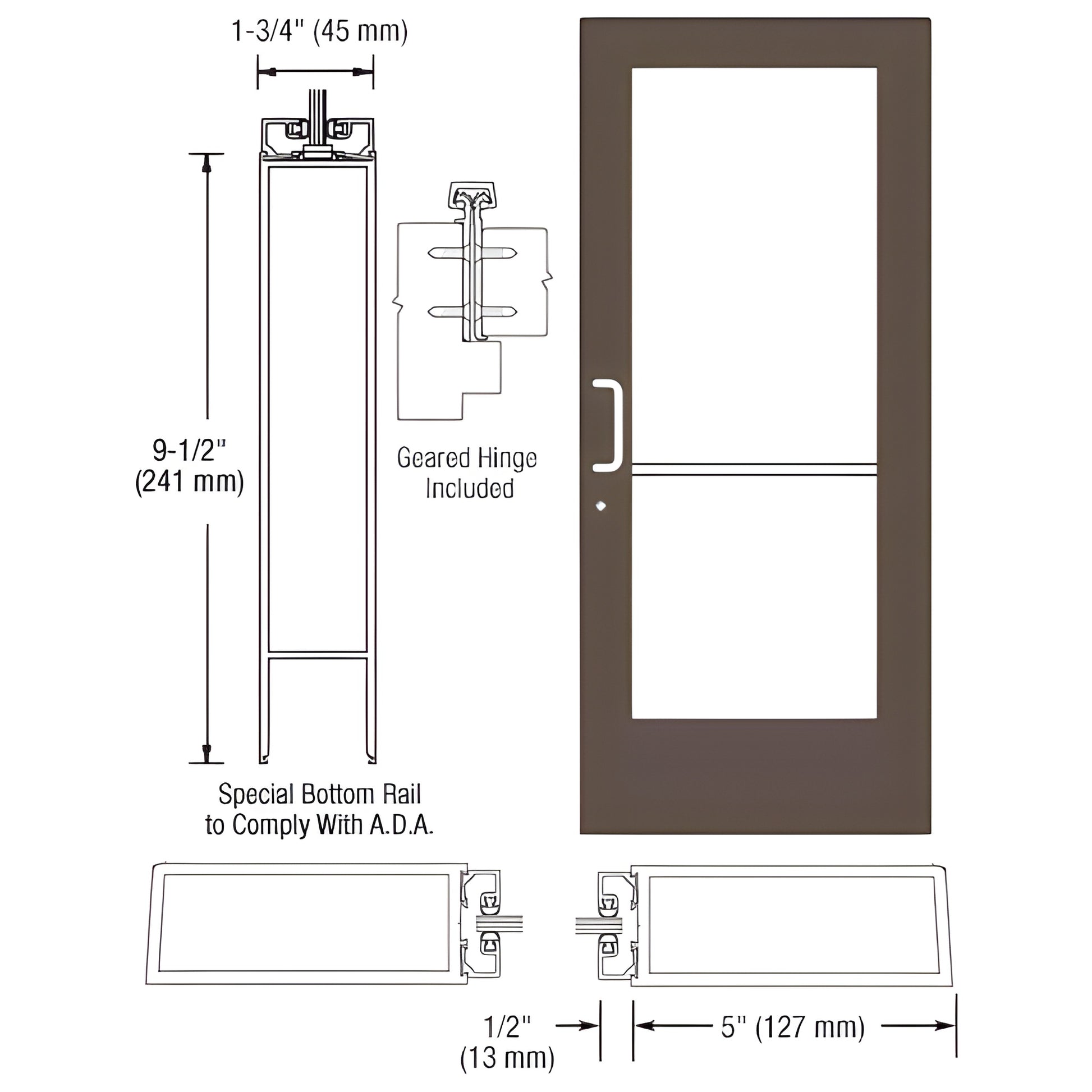

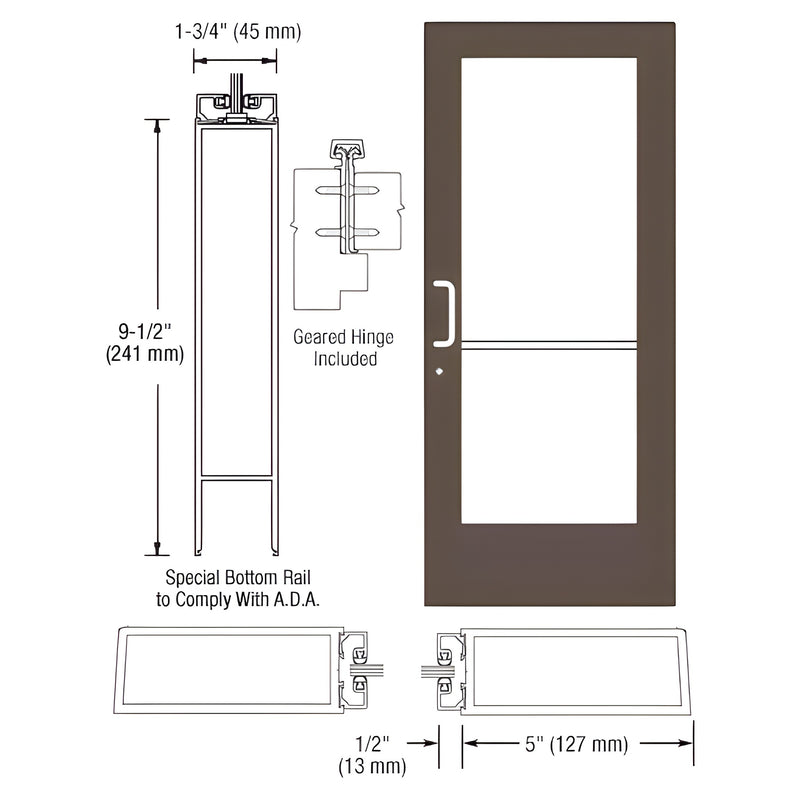

Custom Wide Stile Entrance Door (SKU: DE51822) — Built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard construction includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accept a wide range of optional commercial hardware applications.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Key differentiators: commercial-grade wide stile design, ADA-compliant bottom rail, configurable for insulated glass units and a wide range of hardware—ideal for commercial entrances and storefronts.
Ready to order or need a custom configuration? Contact CRL Customer Service to get started.
Specifications
BIM Objects - rvt
