CRL-U.S. Aluminum 550 Kynar Wide-Stile Geared Hinge Entrance Door
CRL-U.S. Aluminum 550 Kynar Wide-Stile Geared Hinge Entrance Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE52971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with all standard hardware (boxed separately)
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept a wide range of optional hardware applications (stiles prepared for Gear Hinge hardware)

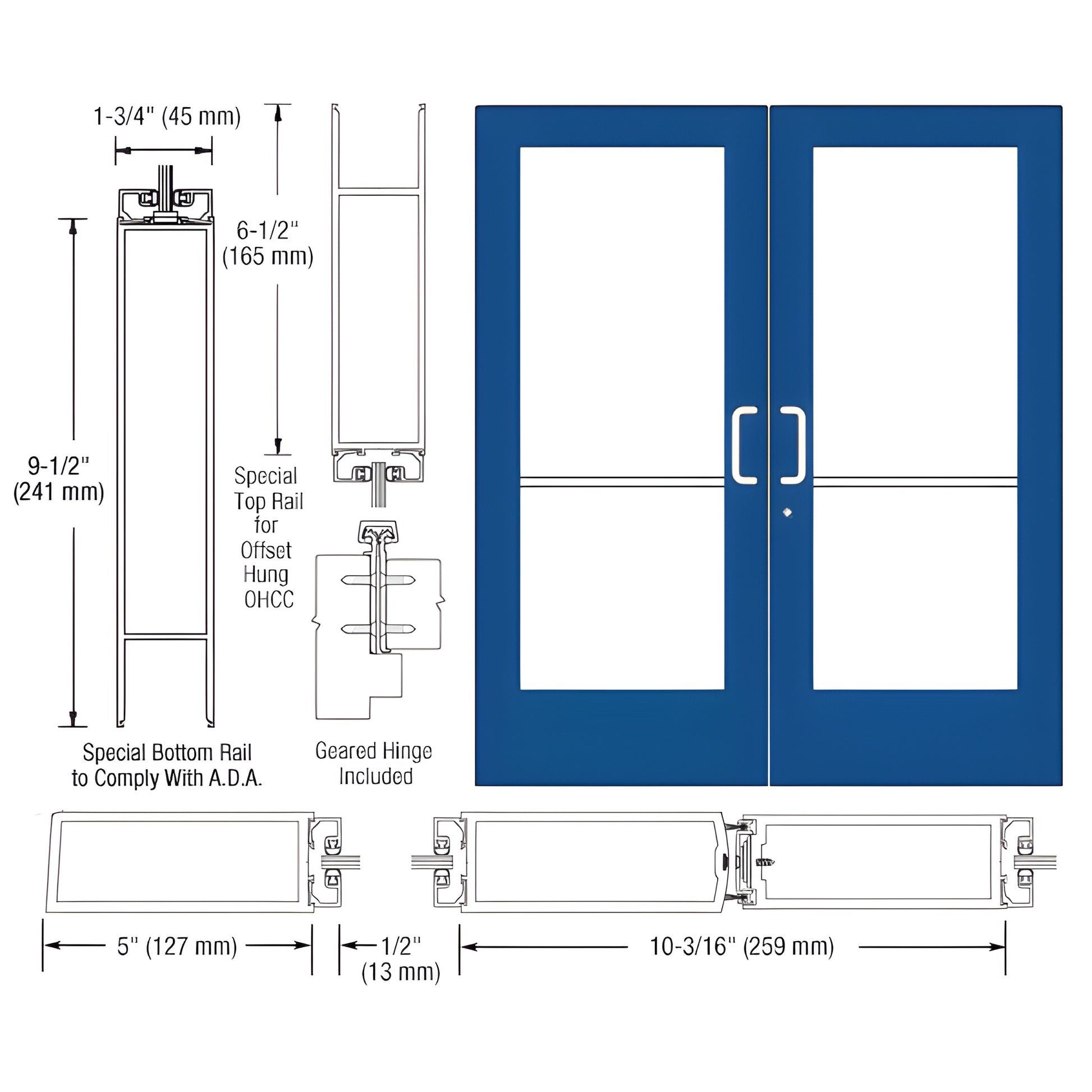

This Custom Wide Stile Entrance Door (SKU DE52971) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed for commercial and institutional entrances, the door arrives ready to receive 1/4" (6 mm) tempered glass and can be custom fabricated to accept optional hardware such as pivots, handles, and Gear Hinge systems. All protruding hardware is boxed separately to prevent transit damage and must be installed on site.
Order SKU DE52971 for a customizable, ADA-compliant commercial wide stile entrance door. Contact us to specify glass and hardware options.
Specifications
BIM Objects - rvt
