CRL-U.S. Aluminum 550 KYNAR Wide-Stile Geared Hinge Panic Door
CRL-U.S. Aluminum 550 KYNAR Wide-Stile Geared Hinge Panic Door
Regular price
$1,871.49 CAD
Regular price
Sale price
$1,871.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ51871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Selected panic hardware and one cylinder ordered and added separately
- Includes standard panic pull and hanging hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

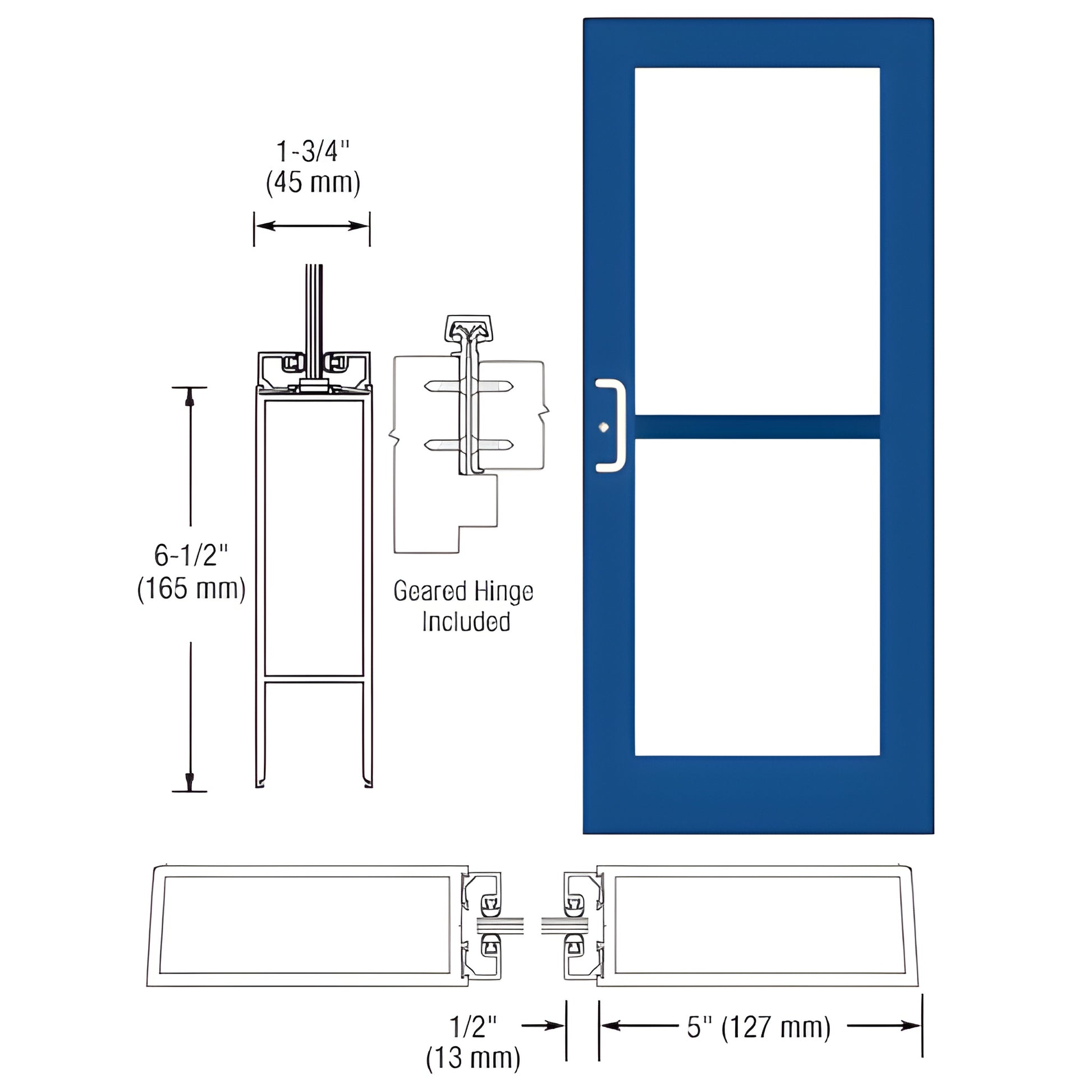

This Custom Wide Stile Entrance Door (SKU: DZ51871) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefront and institutional use, it includes stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (supplied by others). The door is ready for custom fabrication to accommodate optional hardware applications and specialty panic hardware.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not comply with A.D.A. inspection requirements. For exact shipping weight or special handling, contact CRL Customer Service before ordering.
Specifications
BIM Objects - rvt
