CRL-U.S. Aluminum 550 Offset Pivot Door - Surface-Mount Closer

• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass not included)
• 9-1/2" (241 mm) bottom rail available to meet A.D.A. and Title 24 applications for commercial storefronts
• Custom fabricated to accept optional hardware applications for storefront and commercial entrance installations
• Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders; protruding hardware ships boxed separately to prevent transit damage

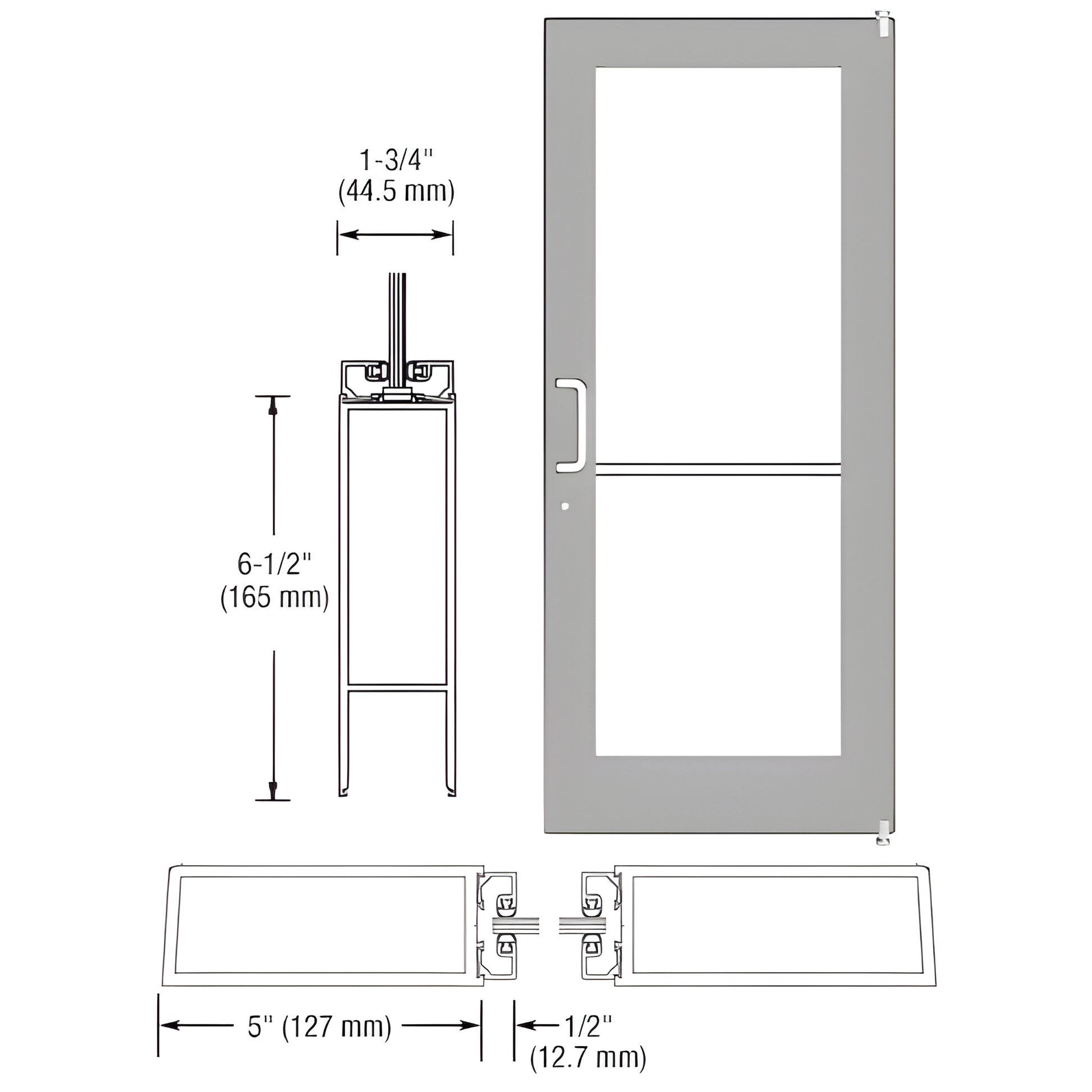

This Custom Wide Stile Entrance Door (SKU: DC51211) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. It ships with stiles prepared for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Doors are ready for custom fabrication to accommodate a wide range of optional commercial hardware.

Note: Door widths under 36" (914 mm) may not meet A.D.A. inspection. Customers must install the included protruding hardware (handles, pivots, etc.) after delivery.

Order your custom wide stile entrance door (DC51211) or contact CRL for a quote and ADA compliance guidance.
