CRL-U.S. Aluminum Clear Anodized Custom Single Series 550 Wide Stile Offset Pivot Entrance Door for Overhead Concealed Door Closer

Product Details

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Custom Fabricated to Accept Optional Hardware Applications
• 9-1/2" (241 mm) Bottom Rail Available to Comply With A.D.A. and Title 21 Applications

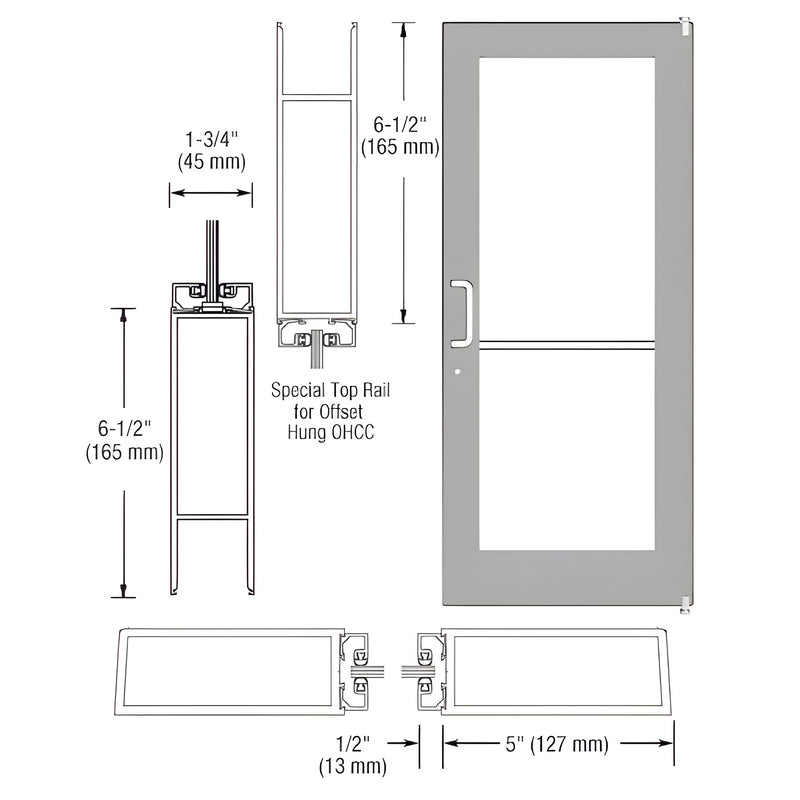

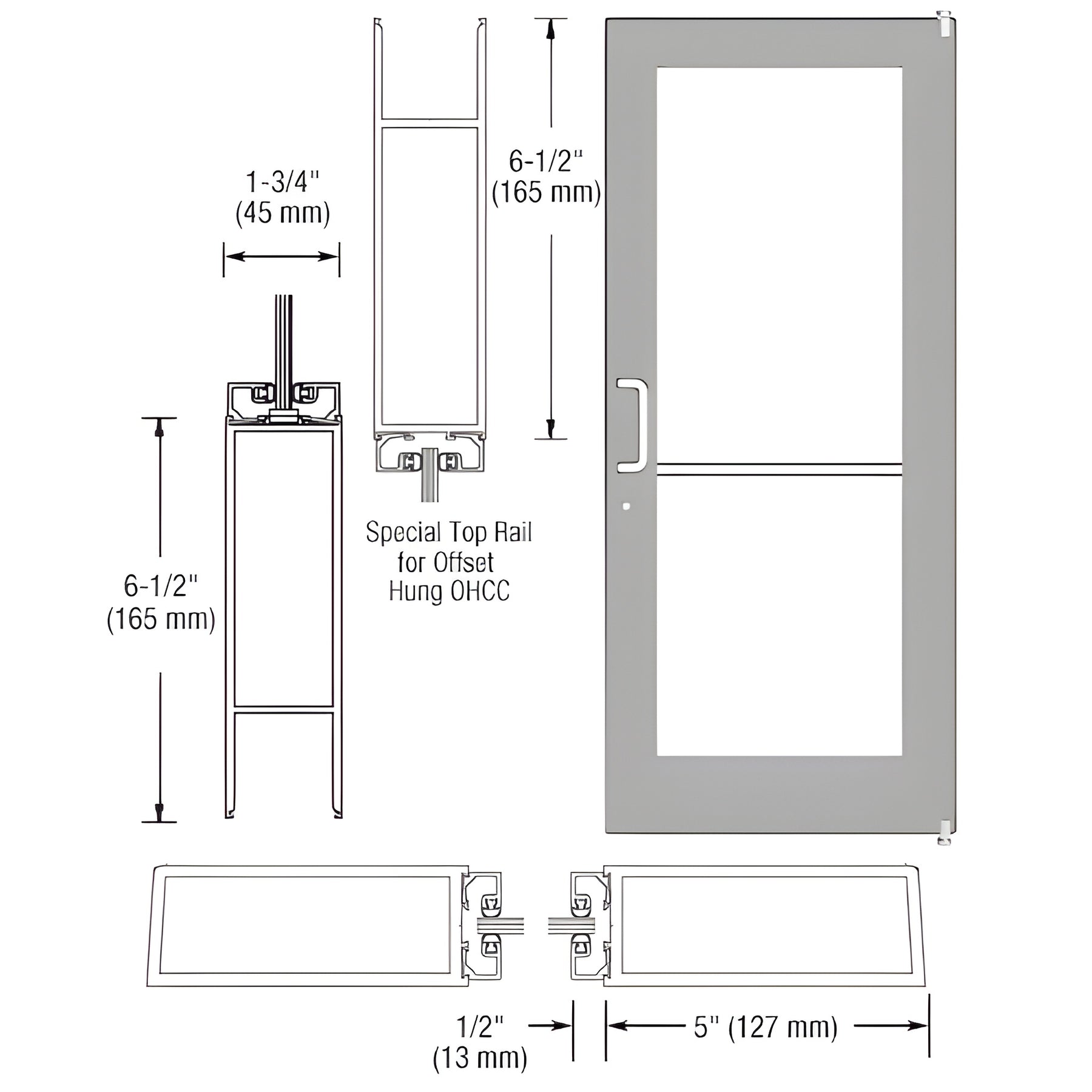

This Custom Wide Stile Entrance Door is built with 5" (127 mm) Stiles, 5-1/2" (140 mm) Top Rail, and 6-1/2" (165 mm) Bottom Rail. Standard features include stiles for Offset Pivot hardware, glass stops for 1/4” (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
