CRL-U.S. Aluminum 550 Series Black Anodized Butt-Hinged Entry Door

• SKU: DZ51522
• Includes standard panic pull and hanging hardware
• Selected panic hardware and one cylinder ordered and added separately
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit accepted (glass not included)
• 9-1/2" (241 mm) bottom rail available for A.D.A. and Title 24 applications
• Custom fabricated to accept a wide range of optional hardware applications

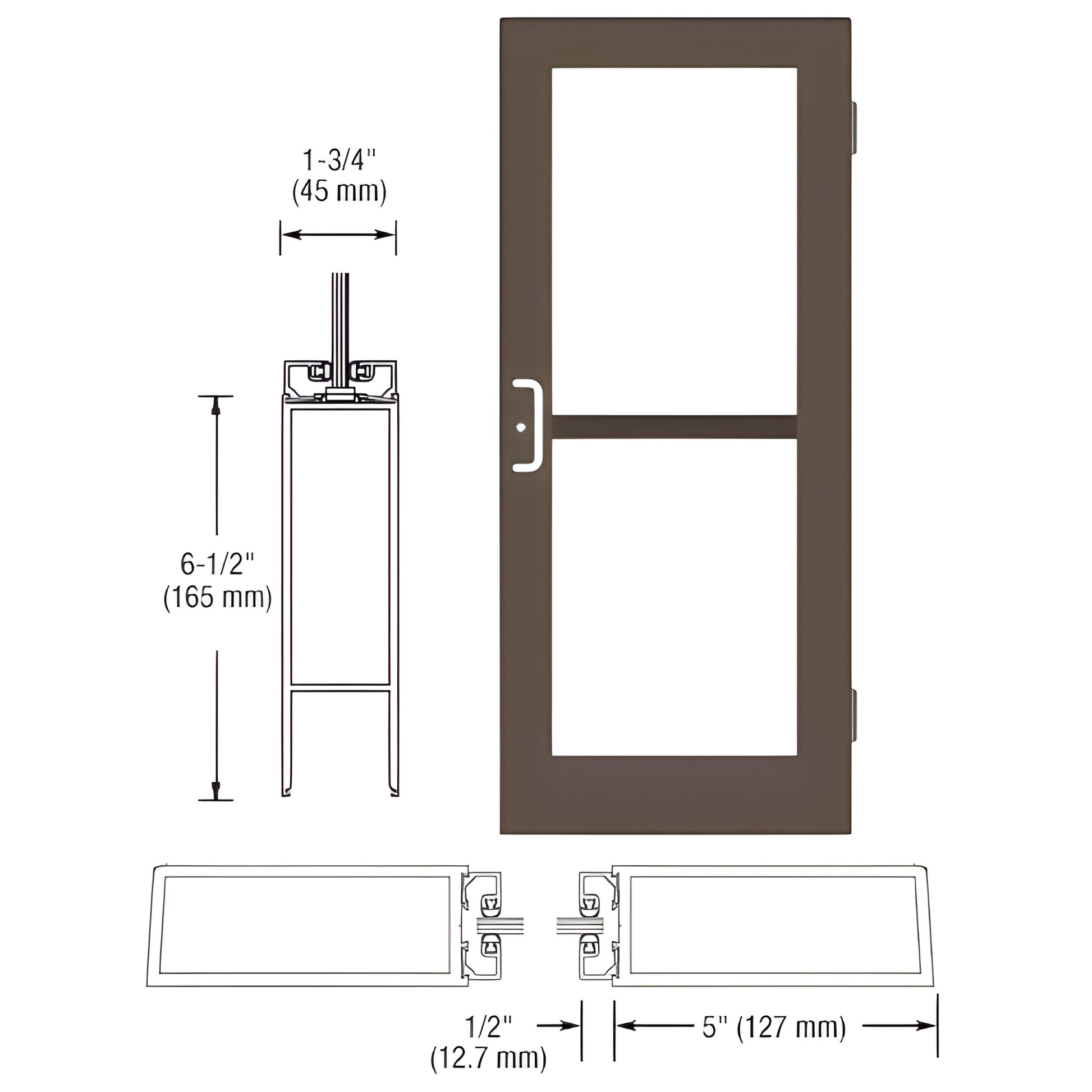

Custom Wide Stile Entrance Door built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles prepped for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accept optional entry hardware, panic devices, and ADA-compliant upgrades.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Why choose DZ51522: Custom-fabricated wide stile entrance door engineered for secure panic hardware integration, ADA-compatible bottom rail option, and flexible glass options for storefront or commercial entrance installations.

Order DZ51522 or contact us for custom sizing and hardware options.
