CRL-U.S. Aluminum 550 Stile Geared Hinge Door, Clear Anodized, Panic

• Selected panic hardware and single-cylinder lock ordered and added separately
• Includes standard panic pull and hanging hardware
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)

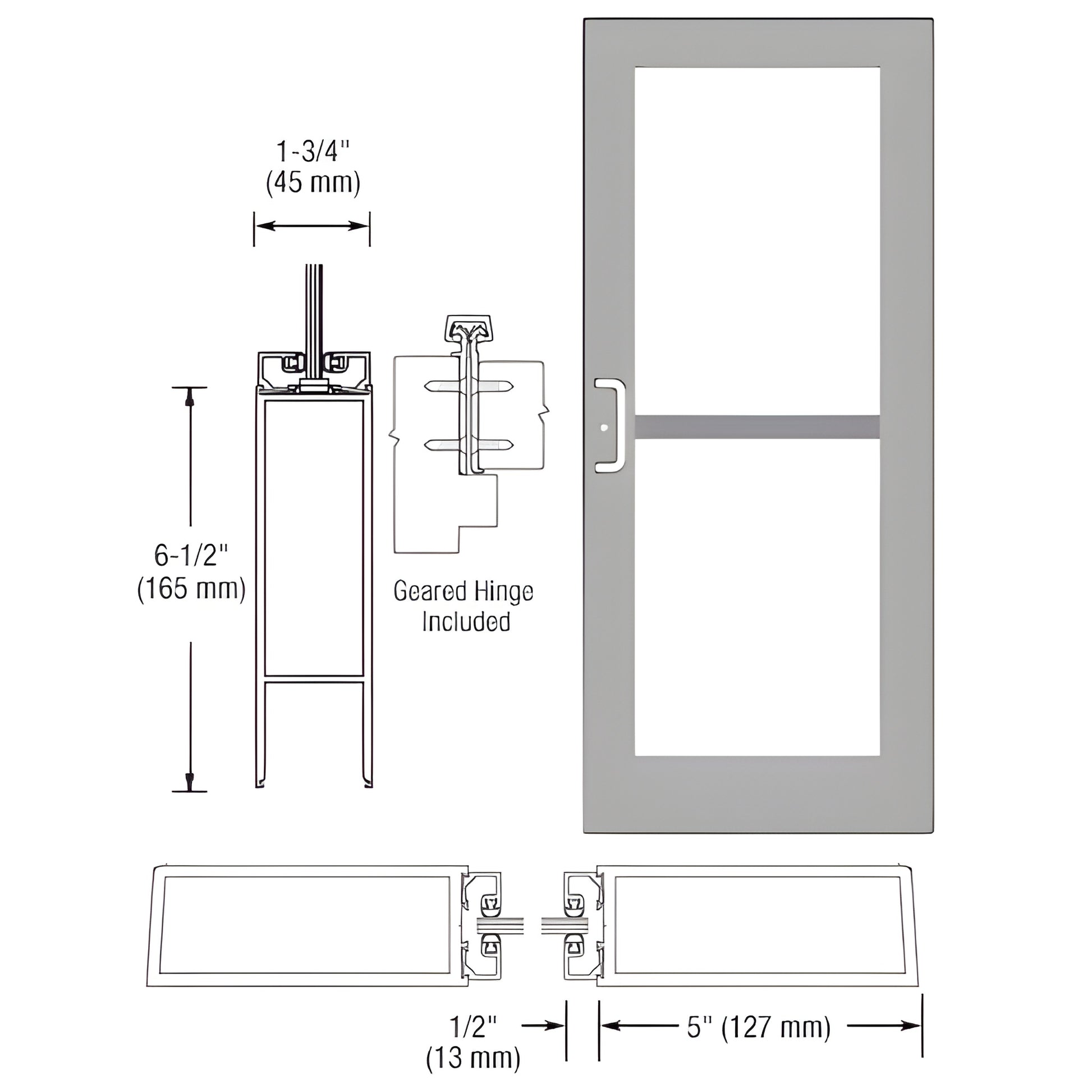

• 6-1/2" (165 mm) bottom rail; 5" (127 mm) stiles; 5-1/2" (140 mm) top rail
• Custom fabricated to accept a wide range of optional hardware applications and gear-hinge installations

This Custom Wide Stile Entrance Door (SKU: DZ51811) is designed for commercial entry use and built with heavy-duty 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles prepped for gear hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accept optional locks, panic devices, and other commercial door hardware for storefront, office, or institutional applications.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection requirements. Glass and optional hardware sold separately.

Order the DZ51811 custom wide stile entrance door for durable, hardware-ready commercial entries. Contact us to confirm specs and lead times.
