CRL-U.S. Aluminum 550 White KYNAR Butt Hinge Pair - Panic Doors
CRL-U.S. Aluminum 550 White KYNAR Butt Hinge Pair - Panic Doors
Regular price
$3,187.06 CAD
Regular price
Sale price
$3,187.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ52552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Selected panic hardware and one-cylinder core ordered and added separately
- Includes standard panic pull and hanging hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail available to meet ADA and Title 24/21 applications
- Custom fabricated to accept a wide range of optional hardware applications

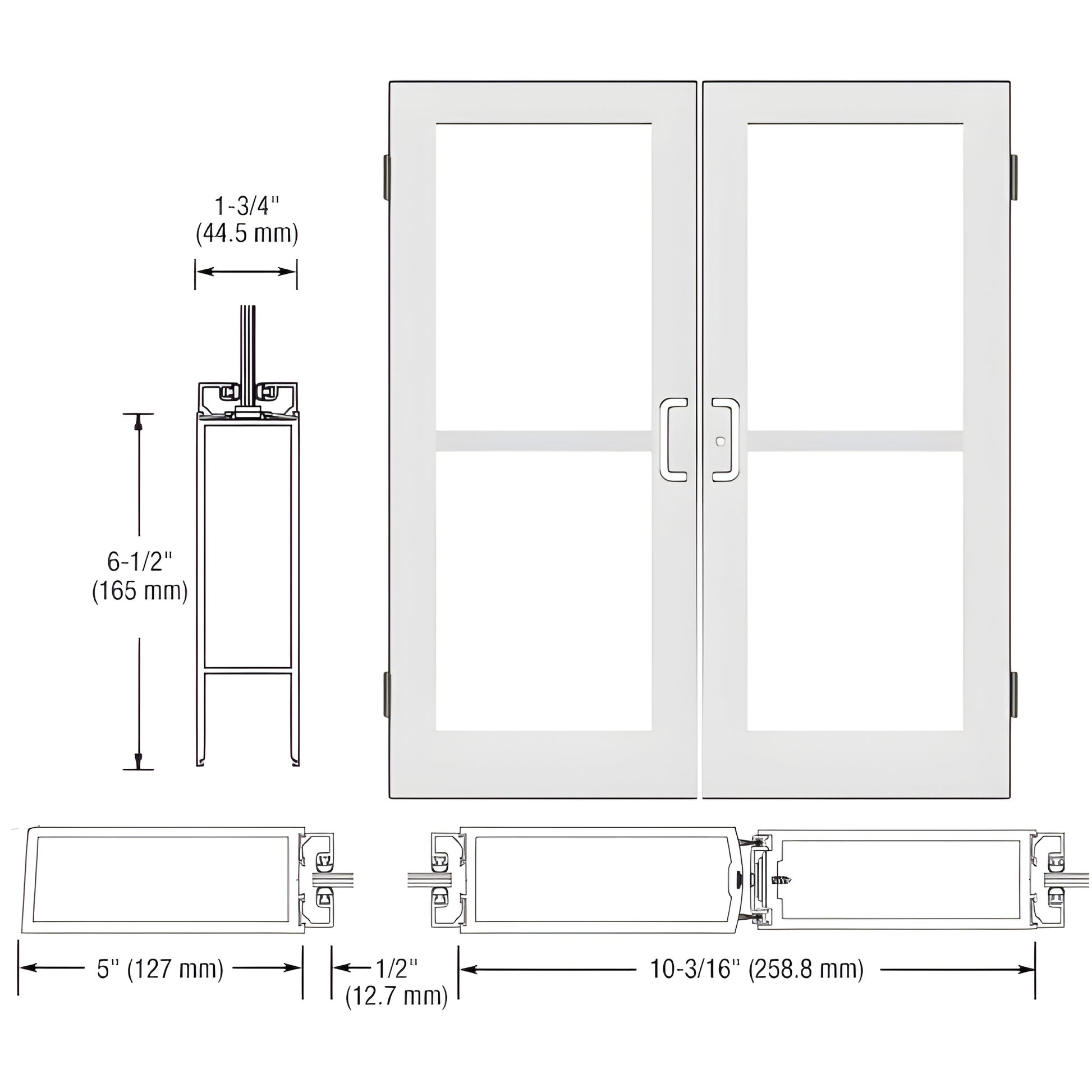

This CRL Custom Wide Stile Entrance Door (SKU: DZ52552) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard design includes stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Built for commercial storefront and high-traffic applications, the door is ready for custom fabrication to accommodate optional panic and access control hardware.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed after delivery.
Contact CRL Customer Service to confirm hardware compatibility or request exact shipping weight. Order SKU DZ52552 today to spec a commercial wide-stile entrance door for your storefront project.
Specifications
BIM Objects - rvt
