CRL-U.S. Aluminum 550 White KYNAR Custom Wide-Stile Door Butt Hinge

• Accommodates 1/4" (6 mm) tempered glass; can accept 1" (25 mm) tempered insulating glass unit (IGU) — glass not included
• 9-1/2" (241 mm) bottom rail option available for A.D.A. and Title 24/21 compliance
• Custom fabricated to accept a wide range of optional hardware applications
• Includes standard panic pull and hanging hardware
• Selected panic hardware and one cylinder are ordered and added separately

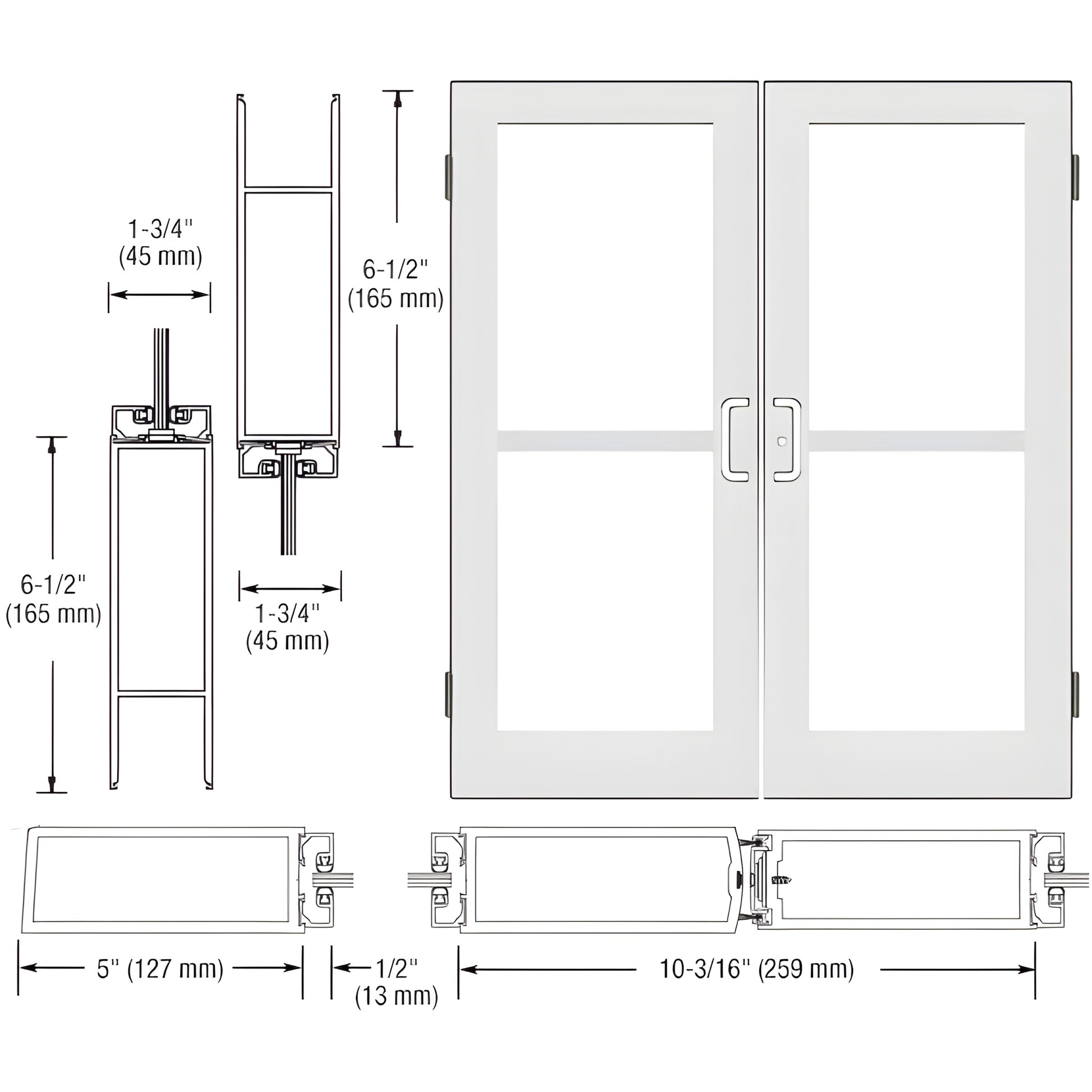

This Custom Wide Stile Entrance Door (SKU: DZ52452) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction provides stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication to support commercial-grade hardware and ADA-compliant threshold options, this door is ideal for storefront, commercial entry, and institutional applications.

Customer must install the included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.

Need a quote or lead time for SKU DZ52452? Contact CRL Sales to confirm specs, options, and delivery — get your custom wide stile entrance door started today.
