CRL-U.S. Aluminum 550 White Kynar Offset Pivot Door, Concealed Closer
CRL-U.S. Aluminum 550 White Kynar Offset Pivot Door, Concealed Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51152
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

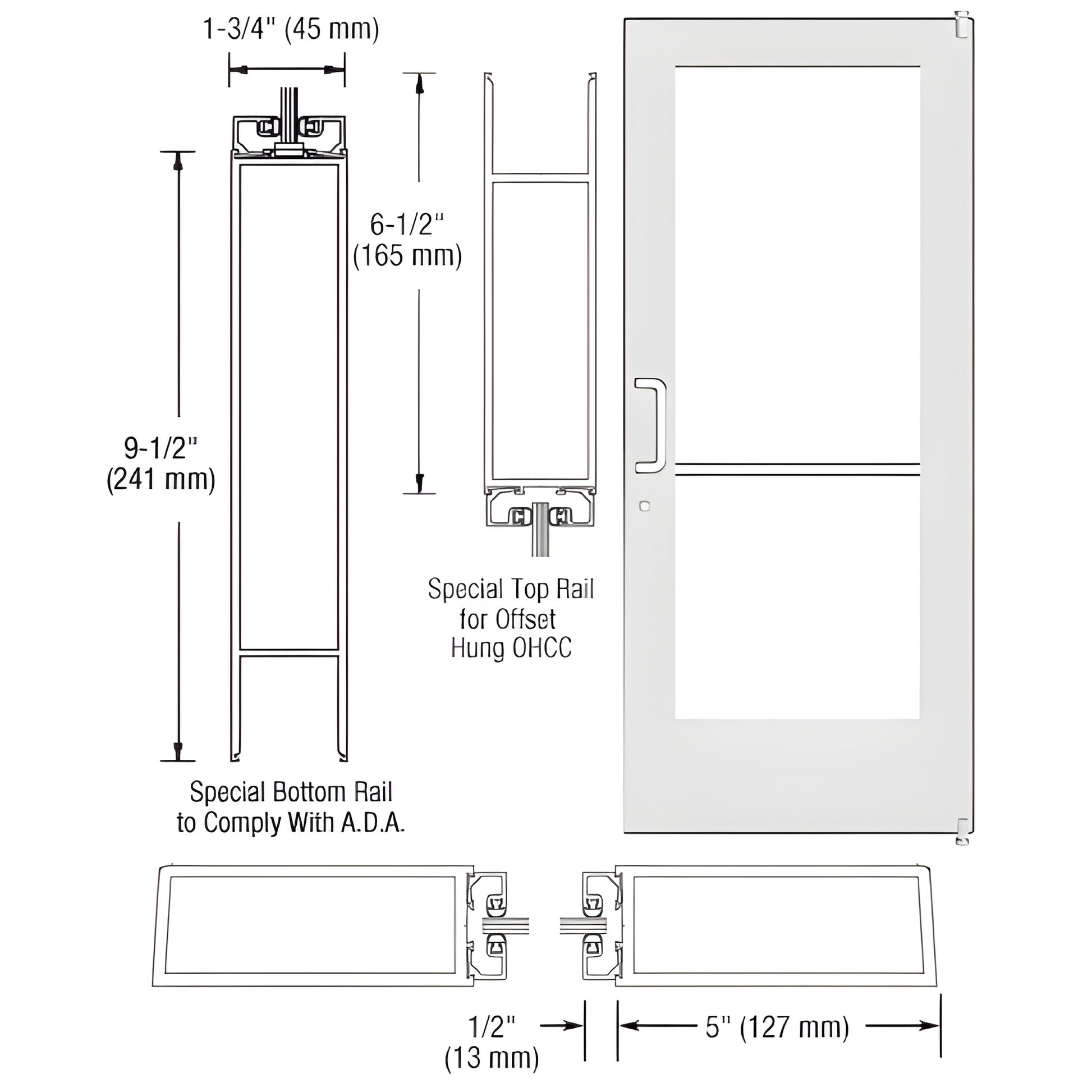

- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
This Custom Wide Stile Entrance Door (SKU: DE51152) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial entrances, it ships ready for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass. The door is custom-fabricated to accept a wide range of optional hardware applications, making it ideal for storefront, office, and institutional remodel projects.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Key differentiators: ADA-compliant bottom rail, factory-ready for offset pivot hardware, keyed-alike security cylinders, and optional insulated tempered glass compatibility.
Ready to specify? Contact us to confirm options and order SKU DE51152.
Specifications
BIM Objects - rvt
