CRL-U.S. Aluminum 550 White KYNAR Wide-Stile Butt-Hinge Entrance Door
CRL-U.S. Aluminum 550 White KYNAR Wide-Stile Butt-Hinge Entrance Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ52552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

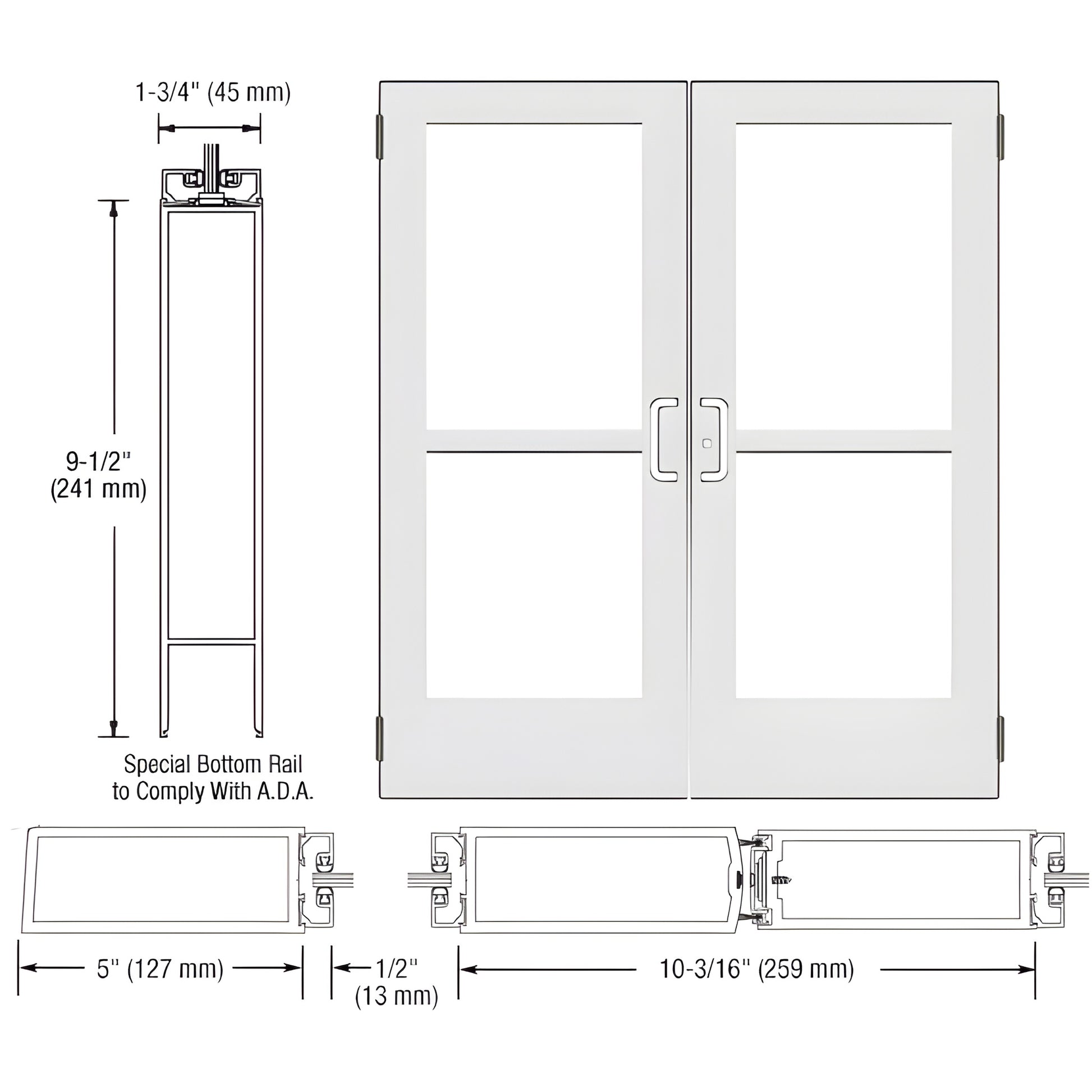

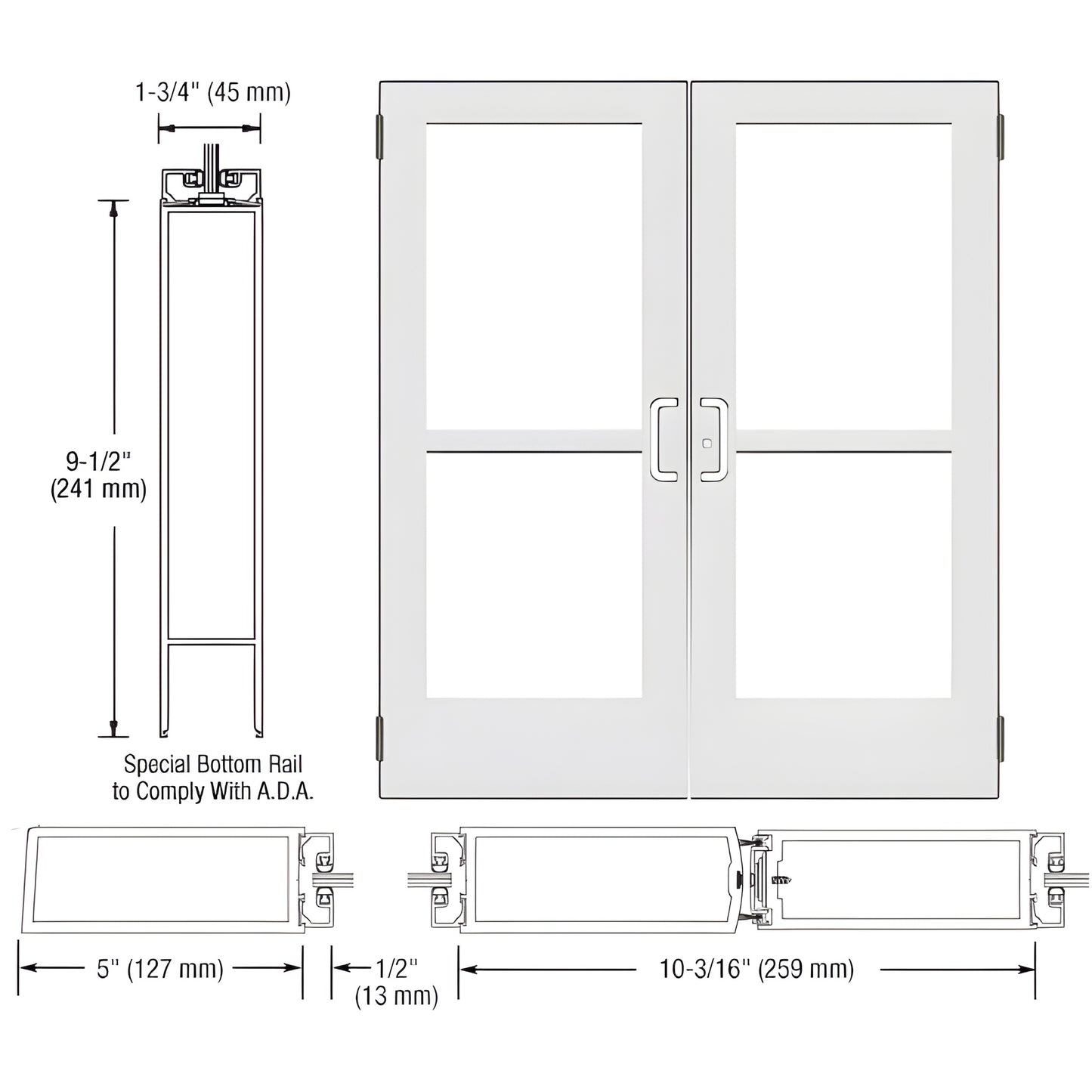

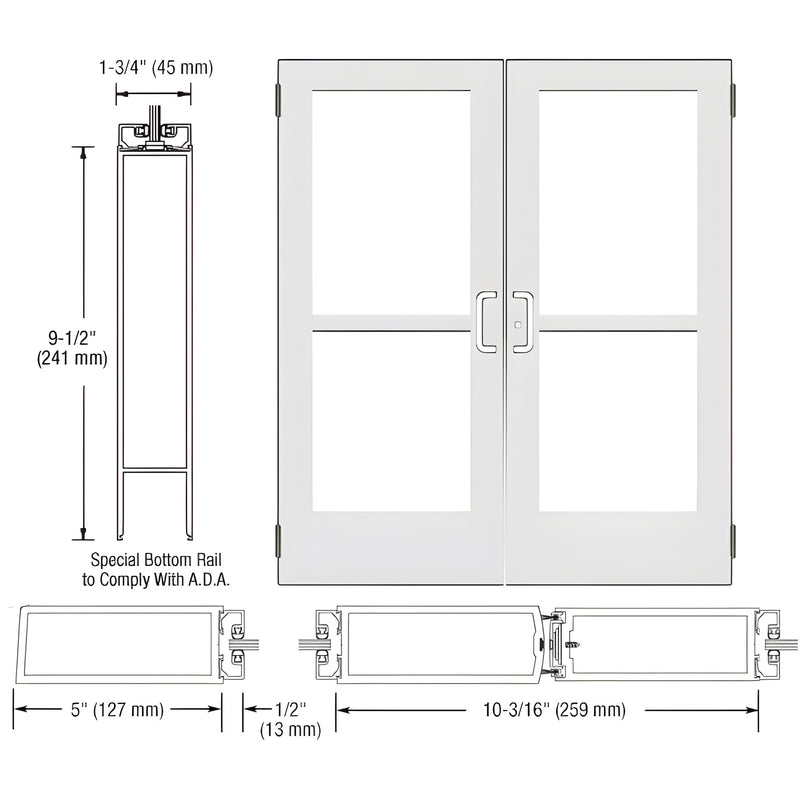

This CRL Custom Wide Stile Entrance Door (SKU: CZ52552) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed as a wide stile glass entrance door, it ships with stiles prepped for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The frame is custom-fabricated and ready for a wide range of optional hardware applications, including concealed vertical rod panic hardware—making it ideal for commercial entrance and storefront retrofit projects.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
Call or order online to configure hardware options and place your CZ52552 custom wide stile entrance door.
Specifications
BIM Objects - rvt
