CRL-U.S. Aluminum 550 White KYNAR Wide-Stile Geared-Hinge Doors
CRL-U.S. Aluminum 550 White KYNAR Wide-Stile Geared-Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE52952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass with the option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept optional hardware applications

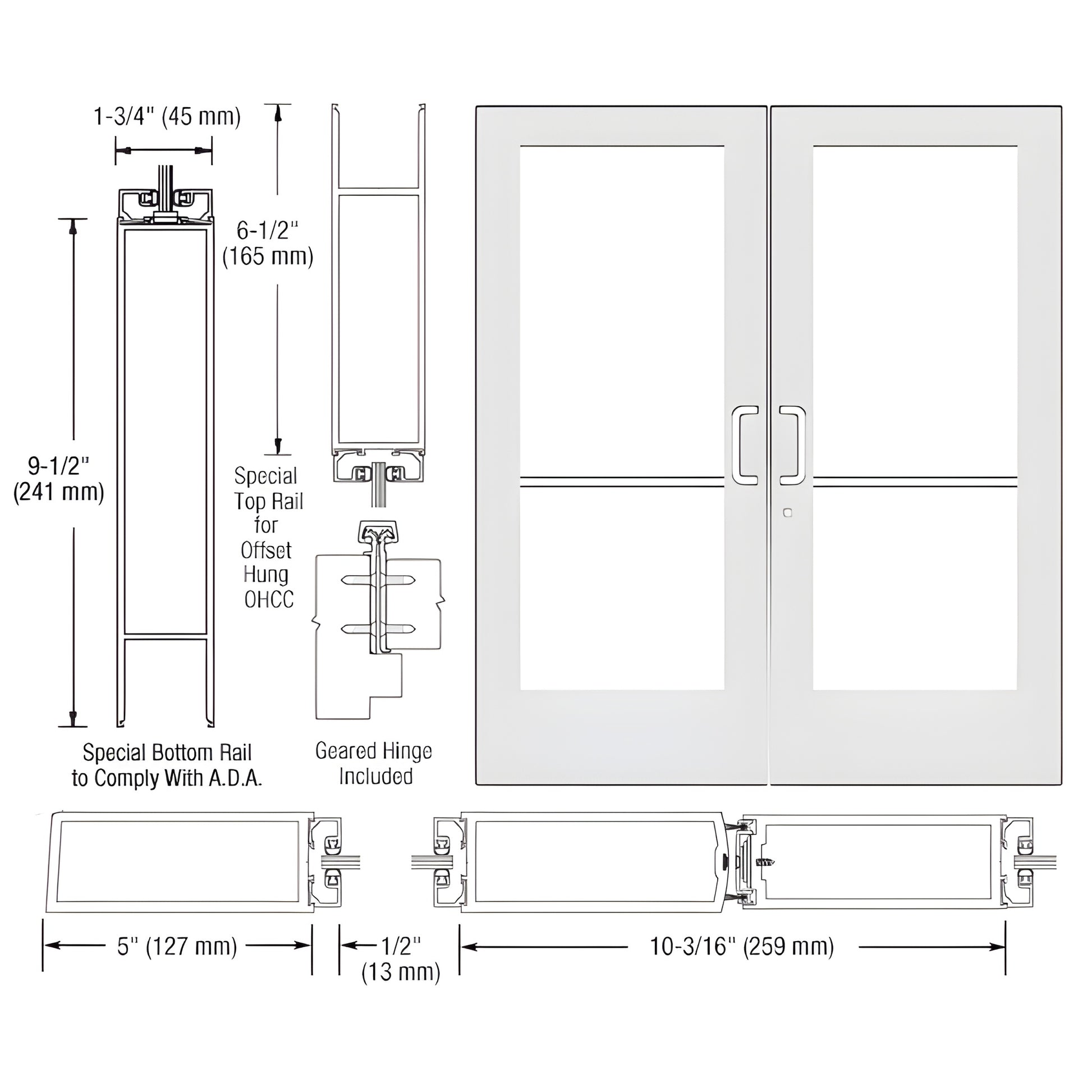

This Custom Wide Stile Entrance Door (SKU: DE52952) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial and institutional entryways, it ships with stiles configured for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to accommodate a wide range of optional hardware applications, making it an ideal choice for ADA-compliant entrances and high-traffic installations.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage in transit and must be installed by the customer.
For pricing, lead times, or to request custom hardware options for SKU DE52952, contact CRL Customer Service today.
Specifications
BIM Objects - rvt
