CRL-U.S. Aluminum 550 White KYNAR Wide-Stile Offset Pivot Entry Door

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
• Custom fabricated to accept a wide range of optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

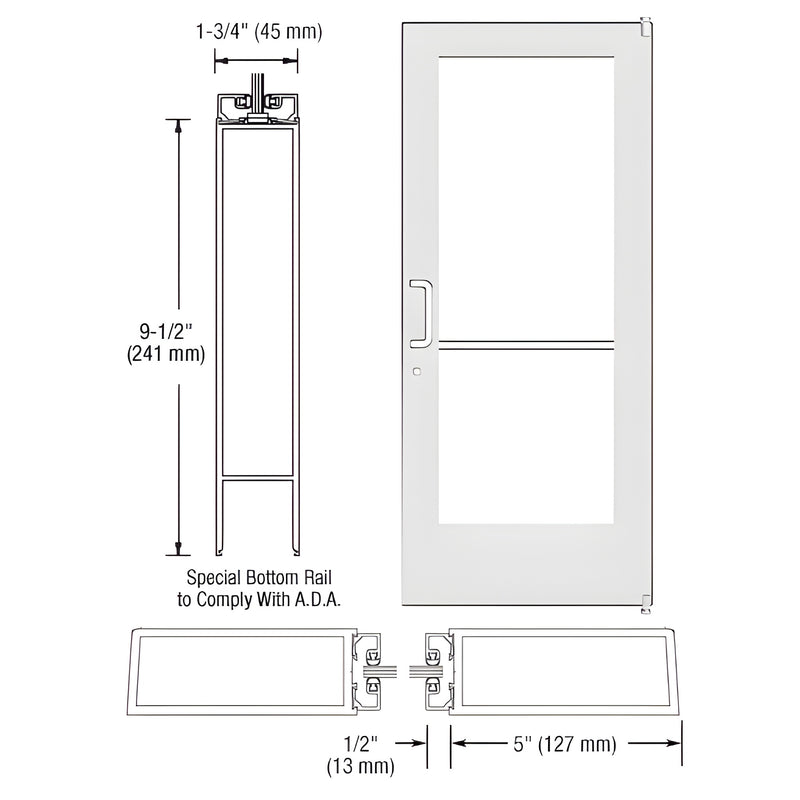

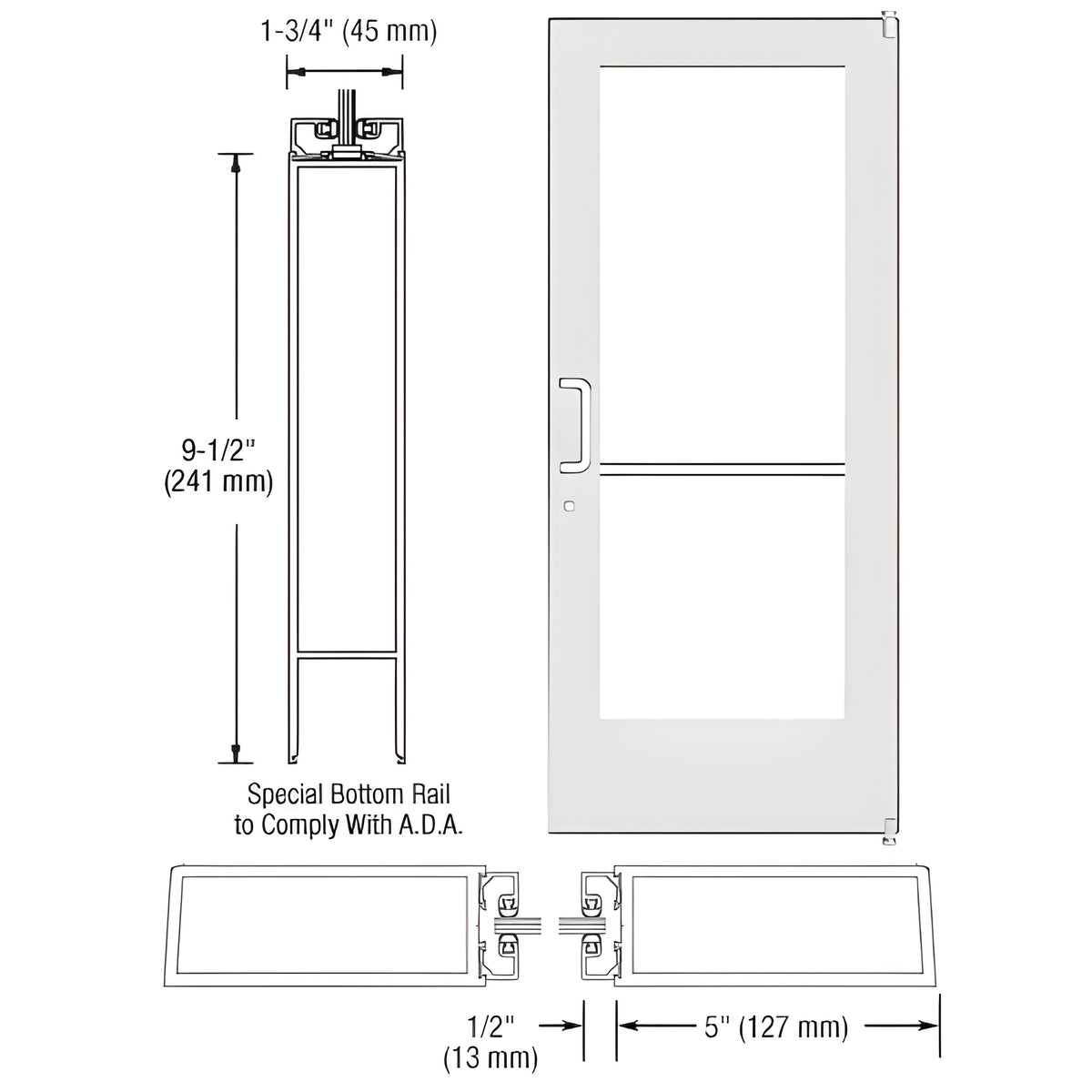

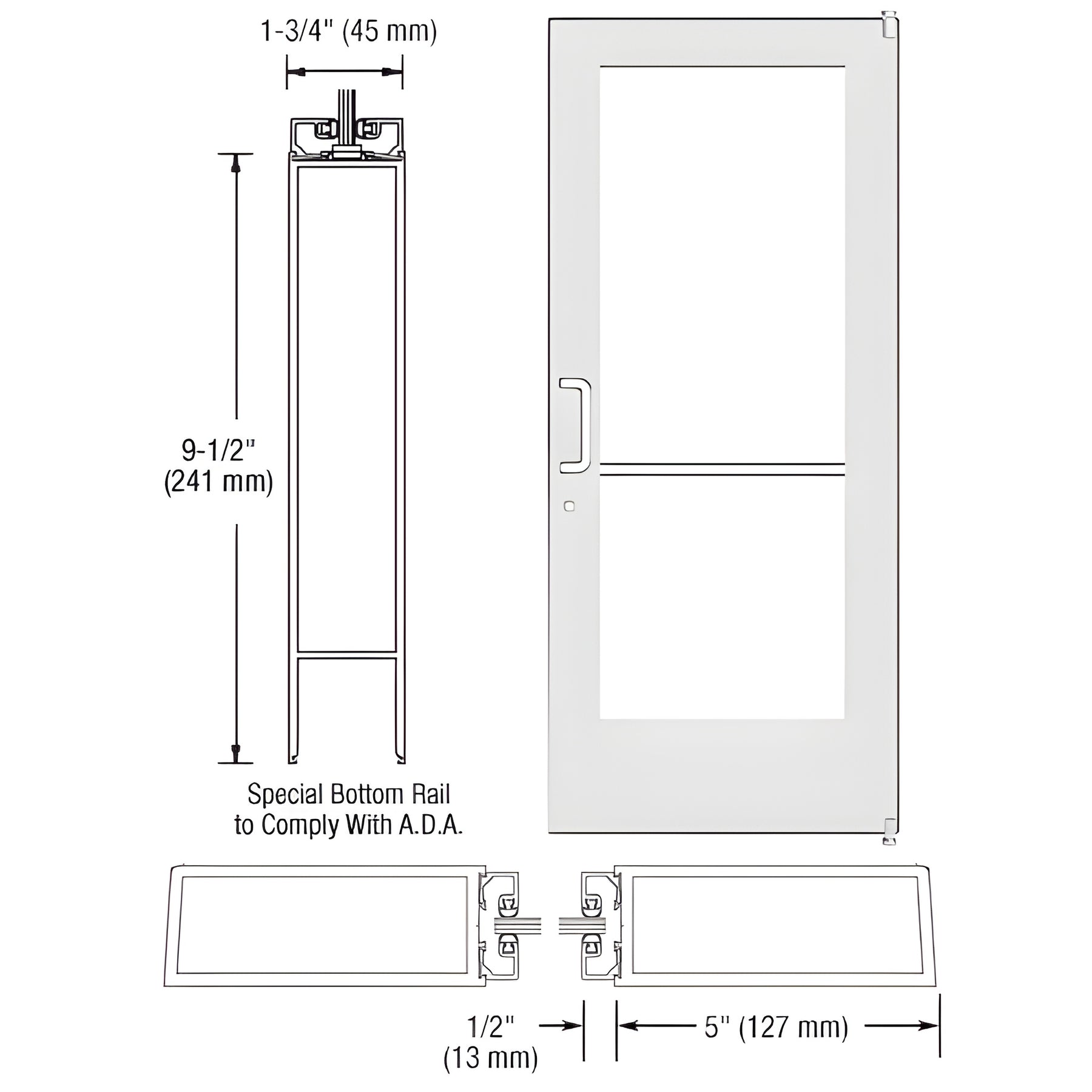

This Custom Wide Stile Entrance Door (SKU: DE51252) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial and architectural applications, the door ships with stiles prepped for Offset Pivot hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Built for durability and easy on-site customization, it is ready for optional hardware integration to meet project-specific requirements.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet ADA inspection criteria.

Key differentiators: ADA-compliant bottom rail, offset-pivot-ready stiles, optional insulated glass compatibility, and included keyed-alike cylinders for streamlined security.

Ready to specify this custom wide stile entrance door for your project? Contact CRL or add SKU DE51252 to your quote.
