CRL-U.S. Aluminum 550 Wide-Stile Butt Hinge Entrance Door, Custom Kynar
CRL-U.S. Aluminum 550 Wide-Stile Butt Hinge Entrance Door, Custom Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4” (6 mm) tempered glass (glass not included) with optional 1” (25 mm) tempered insulating unit
- 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance
- Custom fabricated to accept a wide range of optional hardware applications

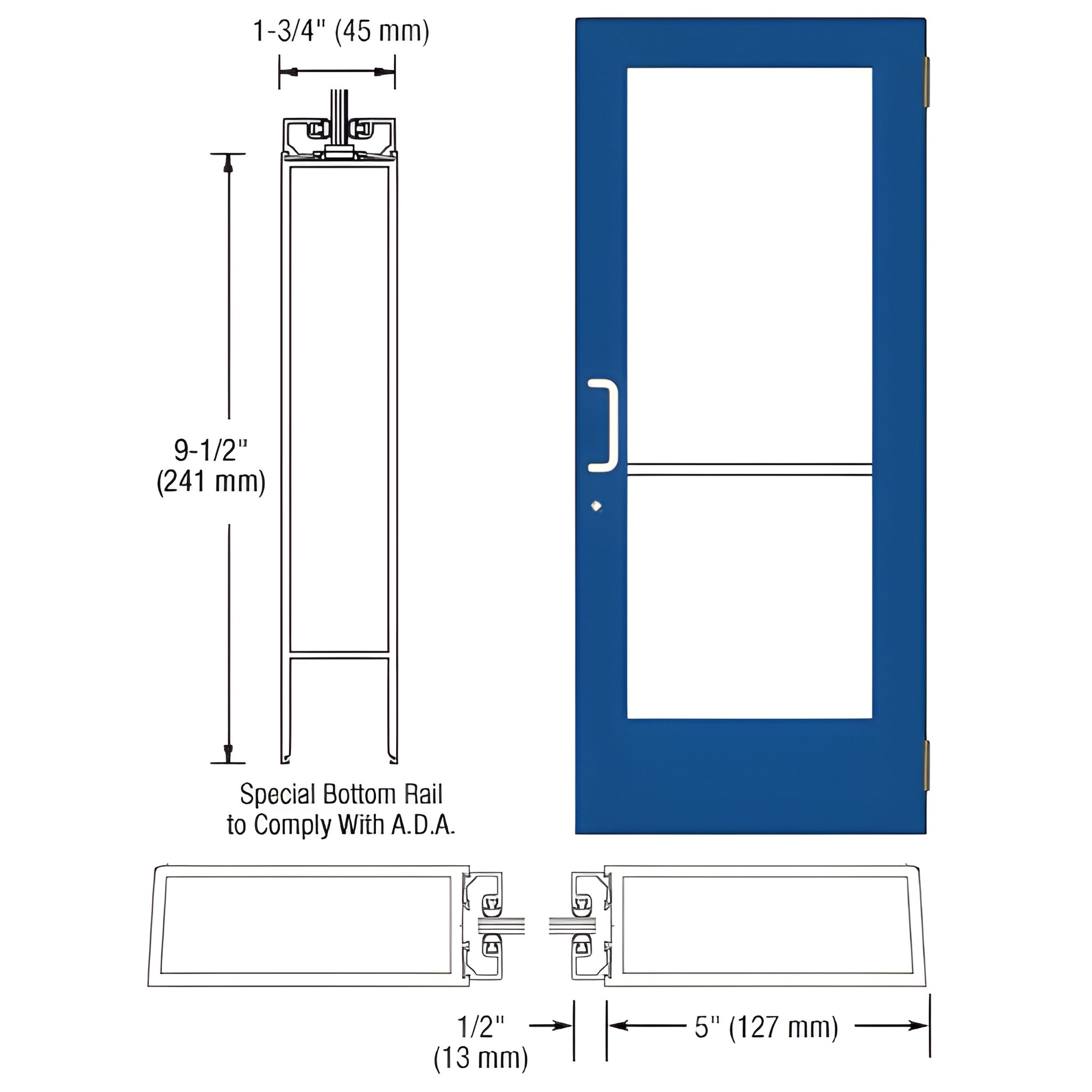

This Custom Wide Stile Entrance Door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Stiles are prepared for butt hinge hardware and include glass stops sized for 1/4” (6 mm) tempered glass supplied by others. Ready for custom fabrication to support commercial storefront and entrance door hardware options.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
SKU: DE51571
Order this ADA-compliant custom wide stile entrance door (SKU DE51571) or contact us for custom hardware options and a shipping weight estimate.
