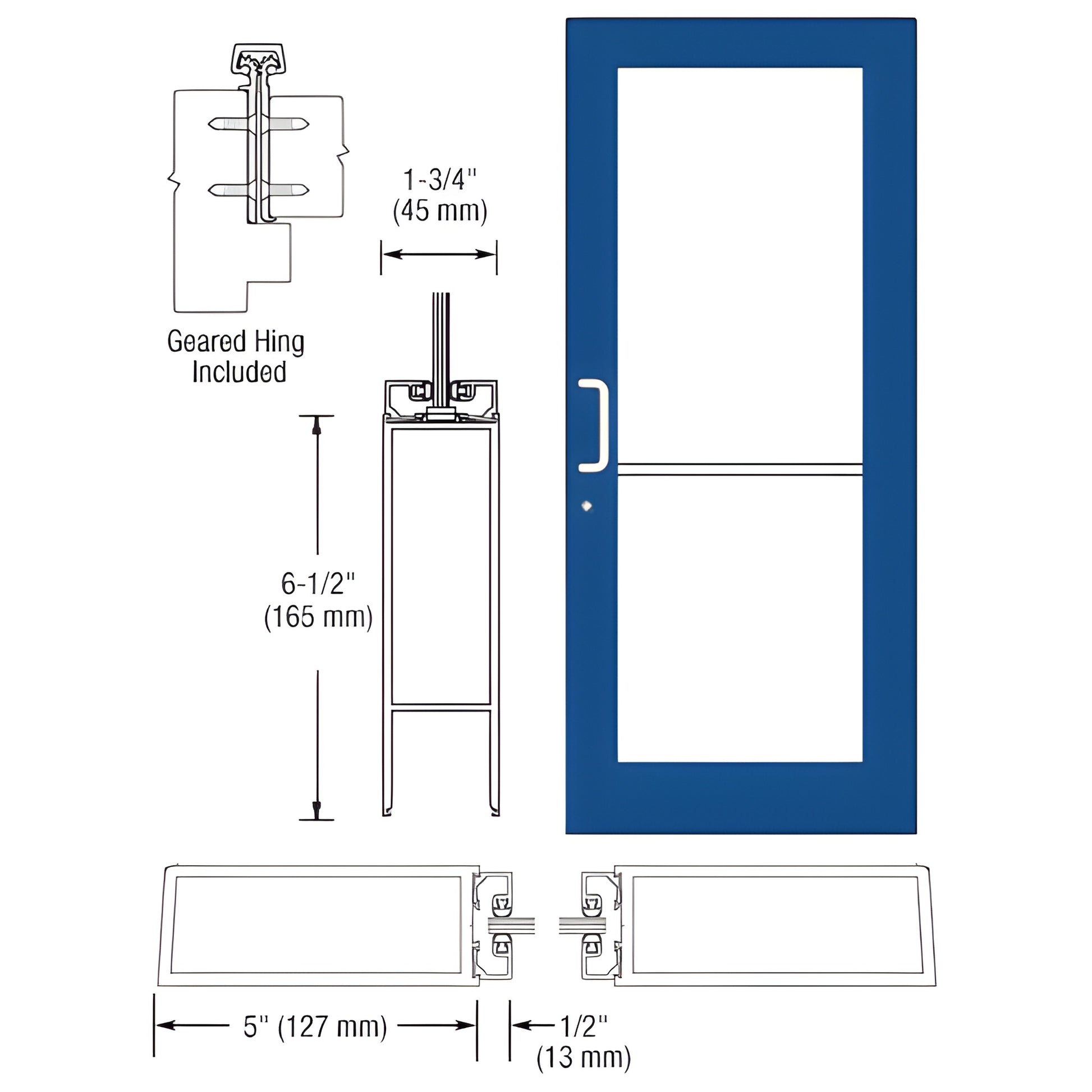

• Blue commercial wide-stile entrance door diagram with glass & hardware; 5" stiles, 6-1/2" bottom rail. SKU DC51871
1 1

CRL

CRL-U.S. Aluminum 550 Wide Stile Entry Door KYNAR Geared Hinge

CRL-U.S. Aluminum 550 Wide Stile Entry Door KYNAR Geared Hinge

$1,721.97 CAD
$1,721.97 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DC51871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 6-1/2" (165 mm) Bottom Rail
  • Custom fabricated to accept optional hardware applications
  • Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
  • Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)

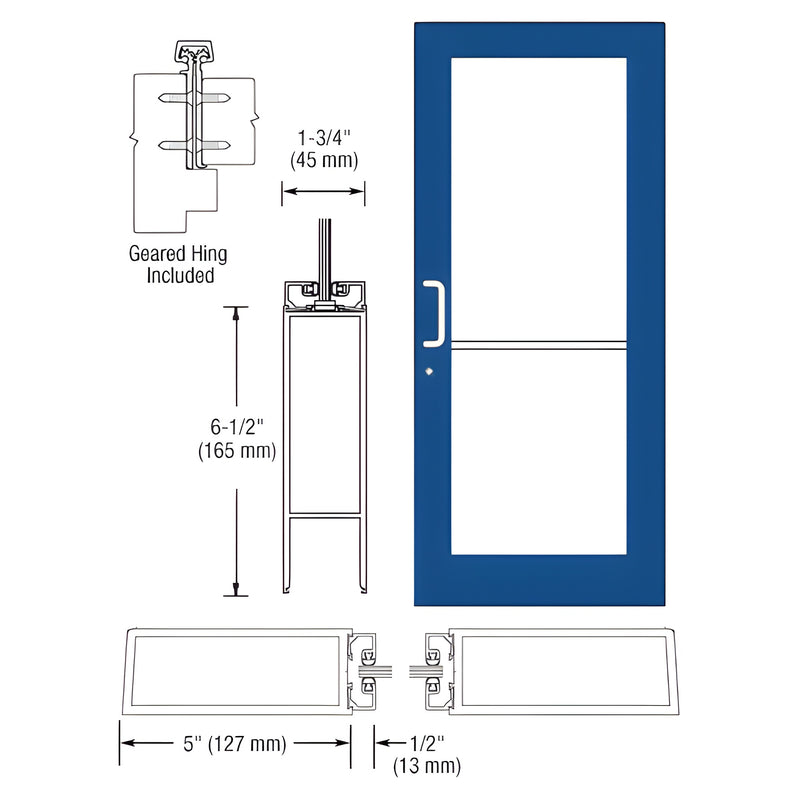

This Custom Wide Stile Entrance Door (SKU: DC51871) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefront and entrance applications, it ships ready for Gear Hinge hardware and glass stops for 1/4" tempered glass. Custom fabrication options make it ideal for retrofit or new-construction projects requiring MS Hookbolt locks, keyed-alike cylinders, and versatile hardware configurations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Order or request a quote for SKU DC51871 to confirm options and lead times.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
