CRL-U.S. Aluminum 550 Wide-Stile Geared Hinge Entrance Door - Kynar
CRL-U.S. Aluminum 550 Wide-Stile Geared Hinge Entrance Door - Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be fitted (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

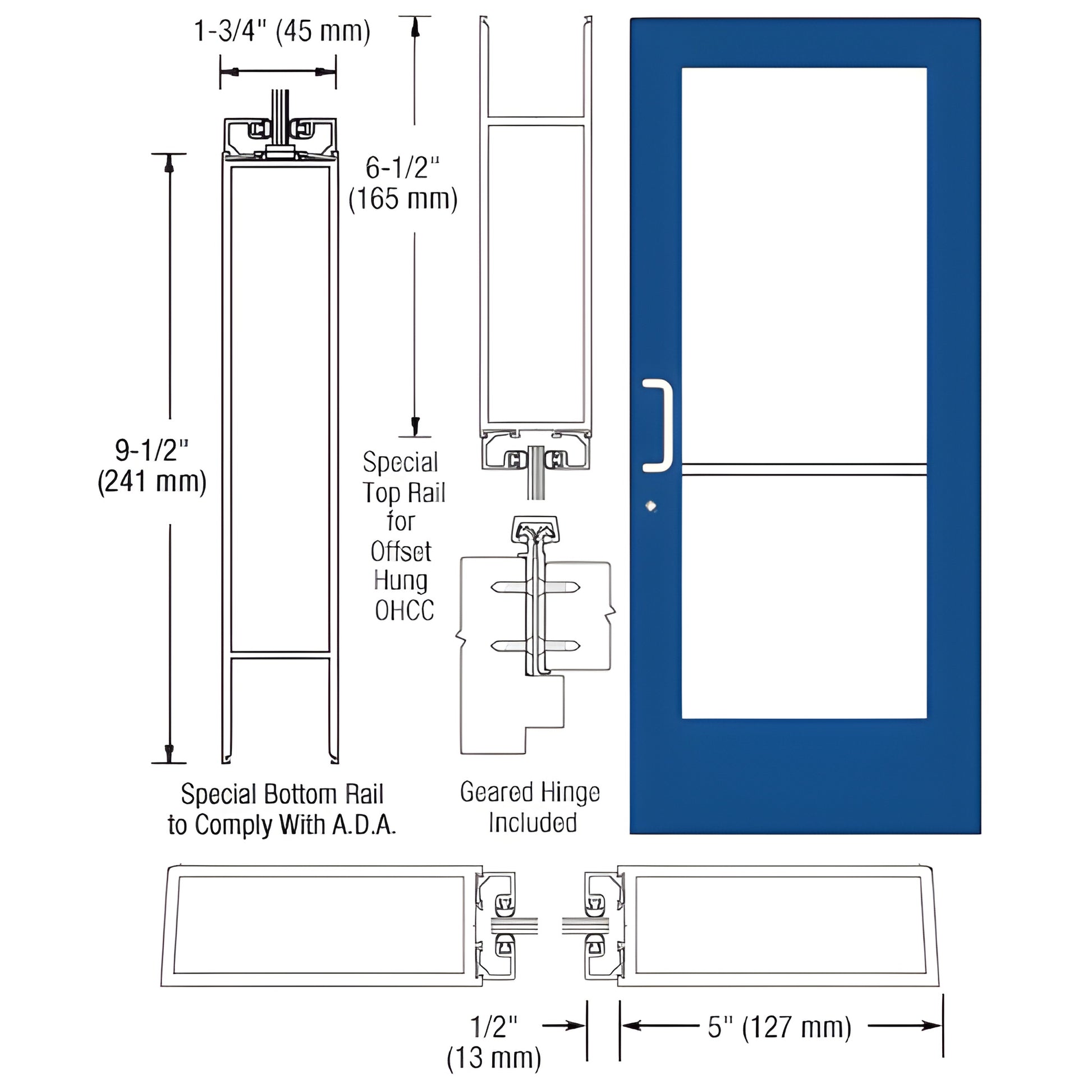

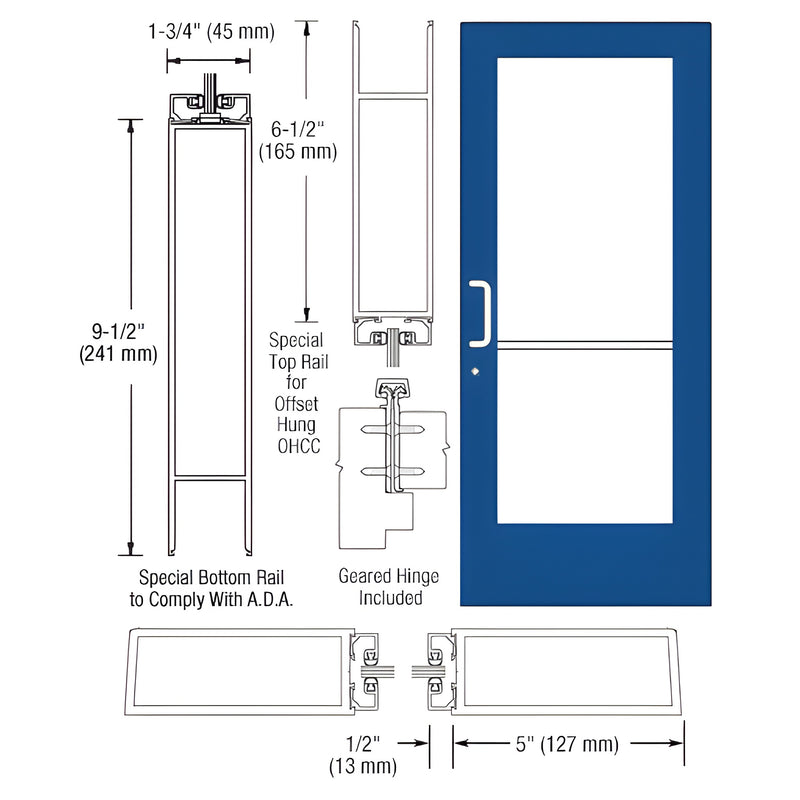

This Custom Wide Stile Entrance Door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Built for commercial applications, it ships with stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Designed for custom fabrication to accept a variety of optional hardware for ADA-compliant commercial glass entrance installations.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
SKU: DE51971 — Order this custom wide stile, ADA-capable commercial glass entrance door or contact us for a quote and hardware options.
Specifications
BIM Objects - rvt
