Product Details
- C-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
- .062" Nominal Wall Thickness
- Thermally Broken System for Exceptional Thermal Performance
- Stainless Steel 4-Bar Hinges and Diecast Cam Locking Handles
All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside for 1" Glazing (not included). Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.
Operating Hardware Includes: Standard 4-Bar Stainless Steel Hinges and Cam Locking Handles.
Optional Hardware Includes: Limit device, friction adjuster, access control lock, and Screens Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, and extruded sill flashing

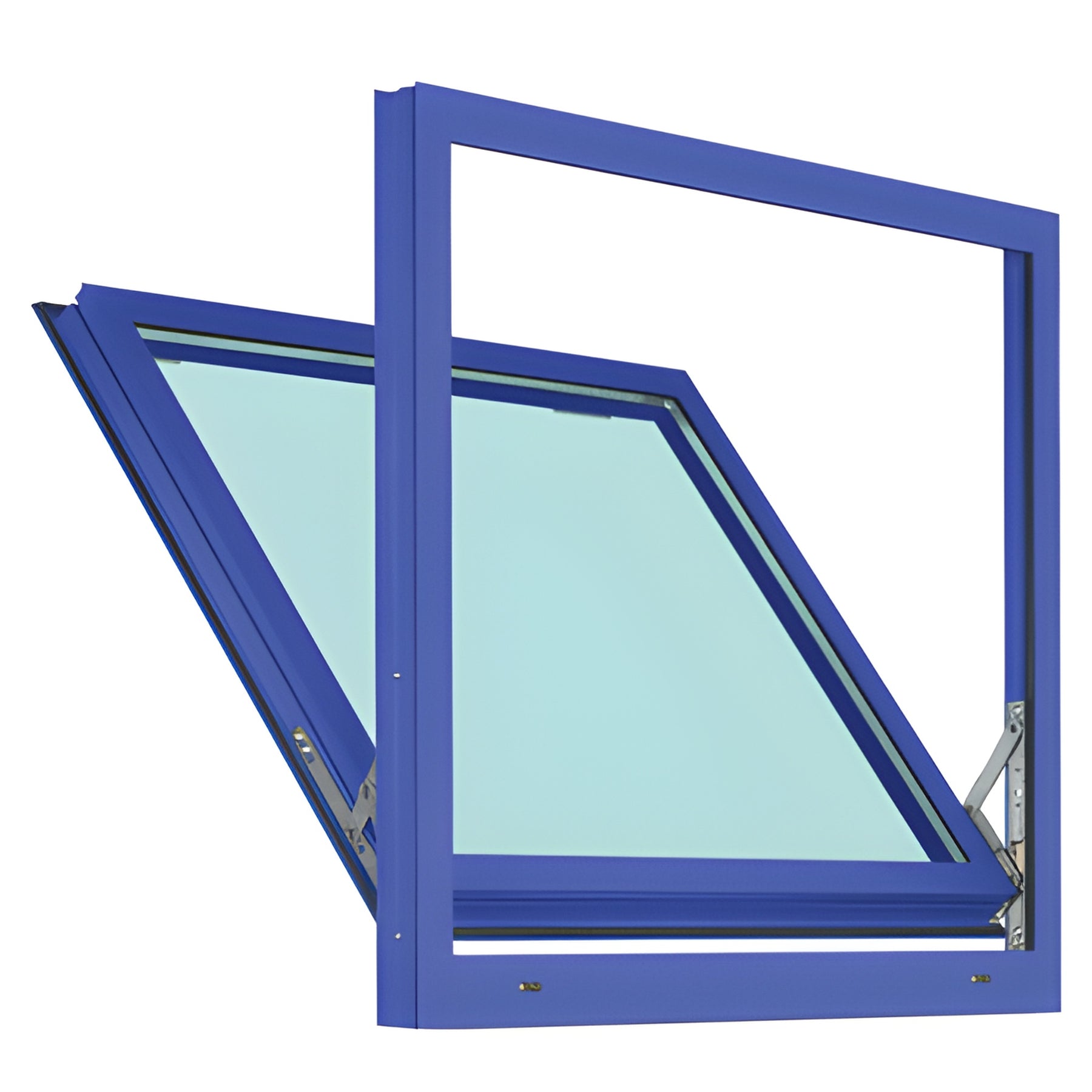

Configurations: Project-In Top Vent (Hopper) Standard 4-bar Stainless Steel hinges will have a limit based on the hinge length and the weight of the sash. No 90 degree 4-bar hinges at Project-In vents 90 degree 4-bar Stainless Steel hinges are available for casement windows requiring Egress.
