Product Details
- .062" Nominal Wall Thickness
- C-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
- Thermally Broken System for Exceptional Thermal Performance
- Stainless Steel 4-Bar Hinges and Diecast Cam Locking Handles
All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside for 1" Glazing(not included). Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.

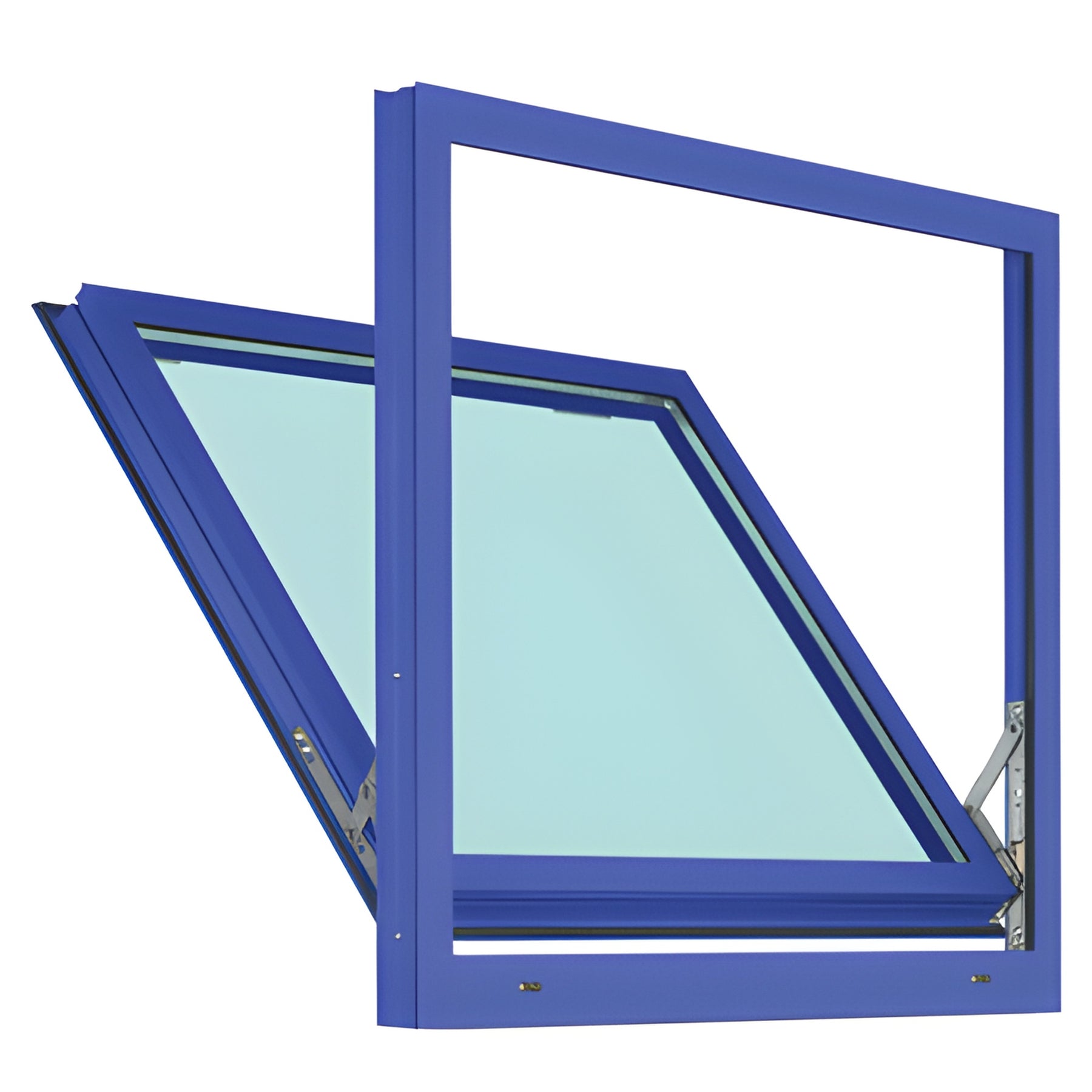

Configurations: Project-In Top Vent (Hopper) Standard 4-bar Stainless Steel hinges will have a limit based on the hinge length and the weight of the sash. No 90 degree 4-bar hinges at Project-In vents 90 degree 4-bar Stainless Steel hinges are available for casement windows requiring Egress.
