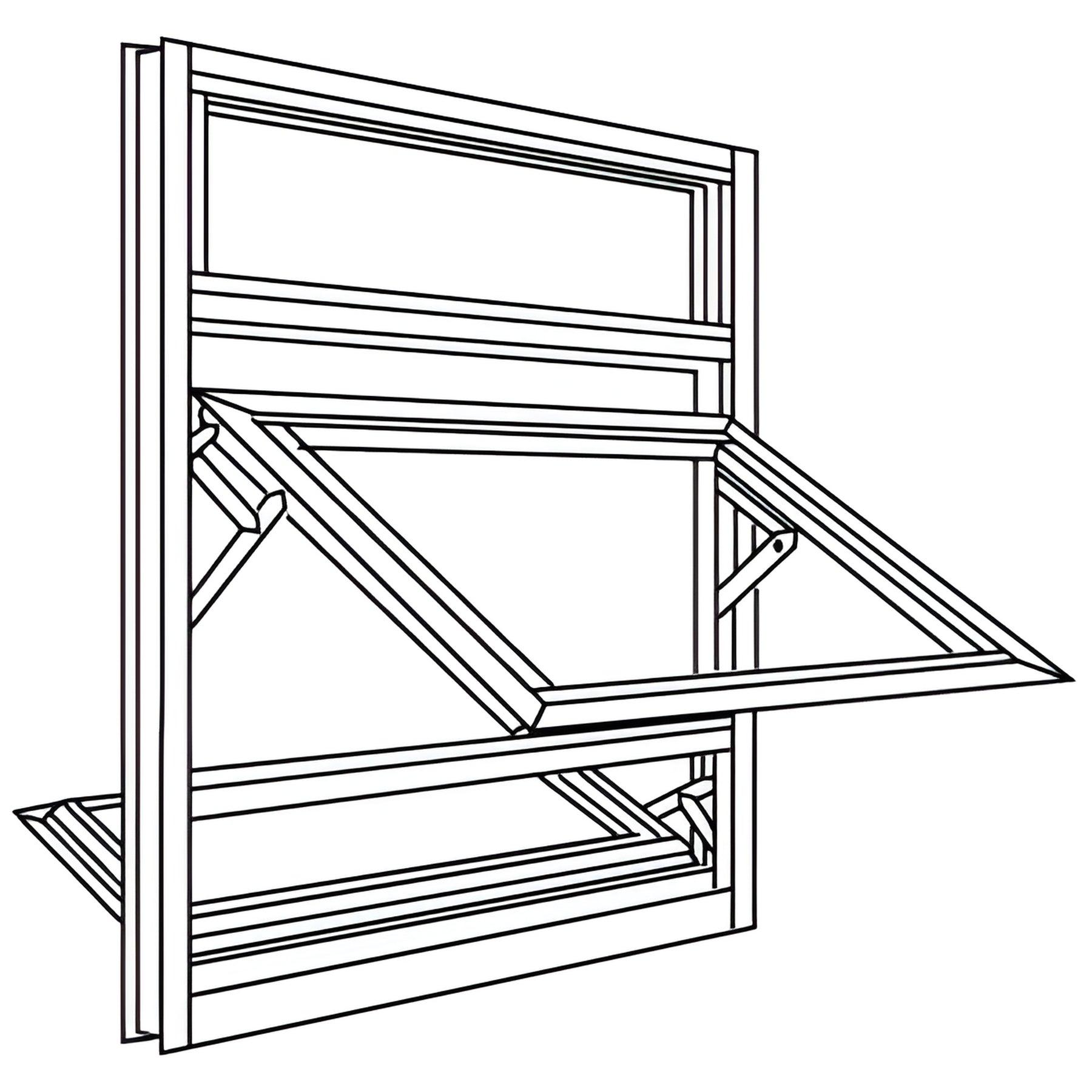

CRL-U.S. Aluminum 7200 Triple-Stack Window Kynar® Paint 1" Glazing
Item# TV23071
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- C-90 AAMA rated for fixed windows
- .062" nominal wall thickness
- C-75 AAMA rated for casement windows and project-in top vent
- CW-75 AAMA rated for project-out bottom vent
All window units are factory-built for dry glaze with exterior glazing tape and an internal E.P.D.M. elastomeric wedge. Vent construction uses tubular members that are mitered, reinforced with an extruded aluminum corner key, and hydraulically crimped for long-term structural integrity—ideal for commercial aluminum window frames and high-performance storefronts.
Operating hardware includes: stainless steel 4-bar hinges and cam locking handles.
Optional hardware includes: 90° 4-bar stainless steel hinge (egress), 5-knuckle butt hinges, roto operator, limit device, friction adjuster, lift handle lock, access control lock, screens, wicket box, two-point locking handles, and security locks—useful for secure casement windows and egress-compliant installations.
Optional extrusions include: head and jamb channels, mulling bars, subsills, corners, nail fin adapters, and extruded sill flashing for retrofit and new-construction applications.
SKU: TV23071. Shipping weights are approximate; contact CRL Customer Service for verified weights or shipping-cost estimates before ordering. Product images represent the actual product or a close representation—actual colors may vary by monitor settings.
Order or request a quote for SKU TV23071 today to get pricing and lead times.
