Product Details
- Thermally Broken System for Exceptional Thermal Performance
- Stainless Steel 4-Bar Hinges and Die Cast Cam Locking Handles
- .062" Nominal Wall Thickness
- CW-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside for 1" (not included). Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.
Optional Hardware Includes: Roto operator, limit device, friction adjuster, lift handle lock, screens, and wicket box
Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, and extruded sill flashing

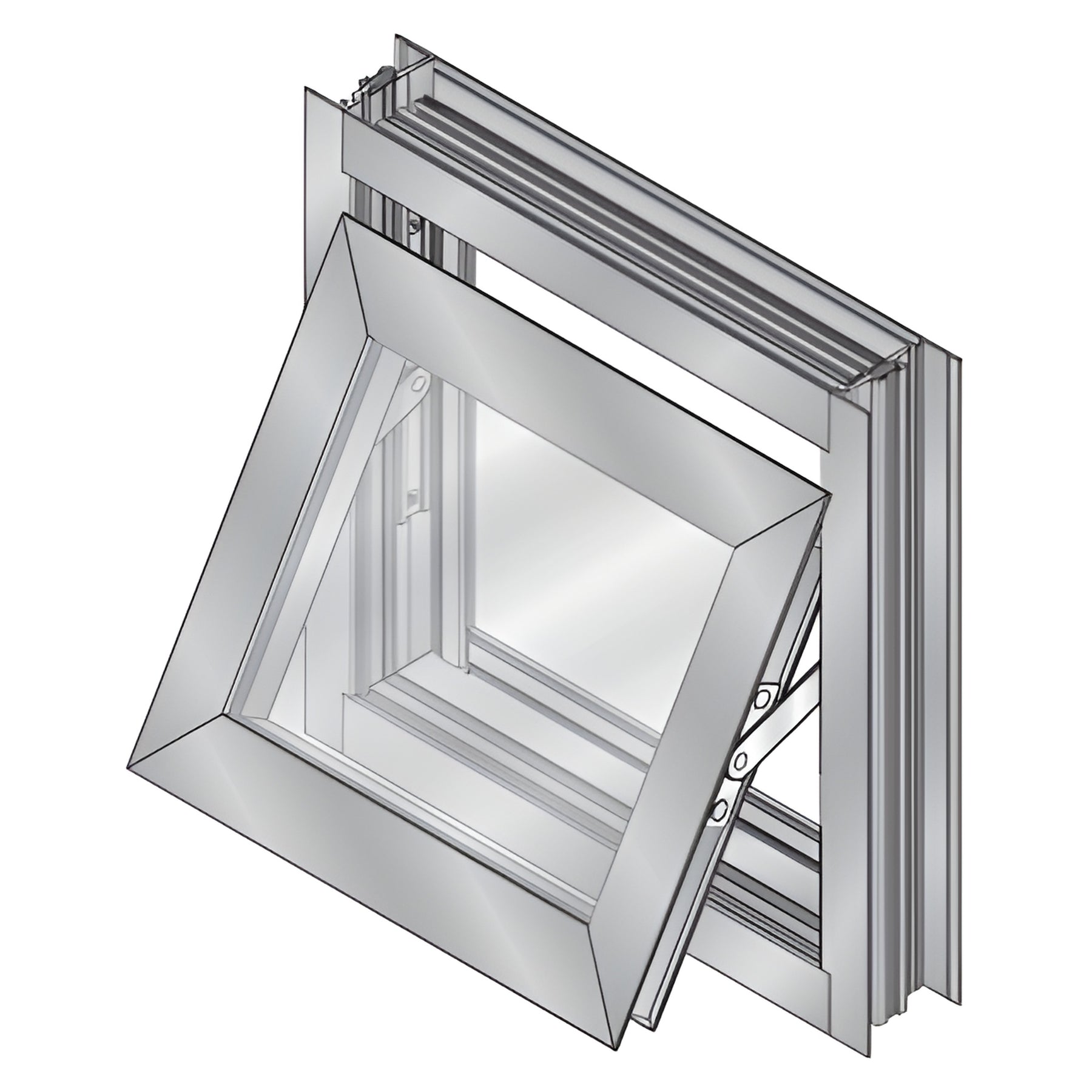

Configurations: Project-Out Bottom Vent (Awning) Standard 4-bar Stainless Steel hinges will have a limit based on the hinge length and the weight of the sash. No 90 degree 4-bar hinges available for Project-out vents 90 degree 4-bar Stainless Steel hinges are available for casement windows requiring Egress.
