CRL-U.S. Aluminum 72x84 Bronze Anodized Entrance Door S250 Gear Hinge
CRL-U.S. Aluminum 72x84 Bronze Anodized Entrance Door S250 Gear Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. for accessible entrance applications
- Custom fabricated to accept optional hardware applications for commercial storefronts
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

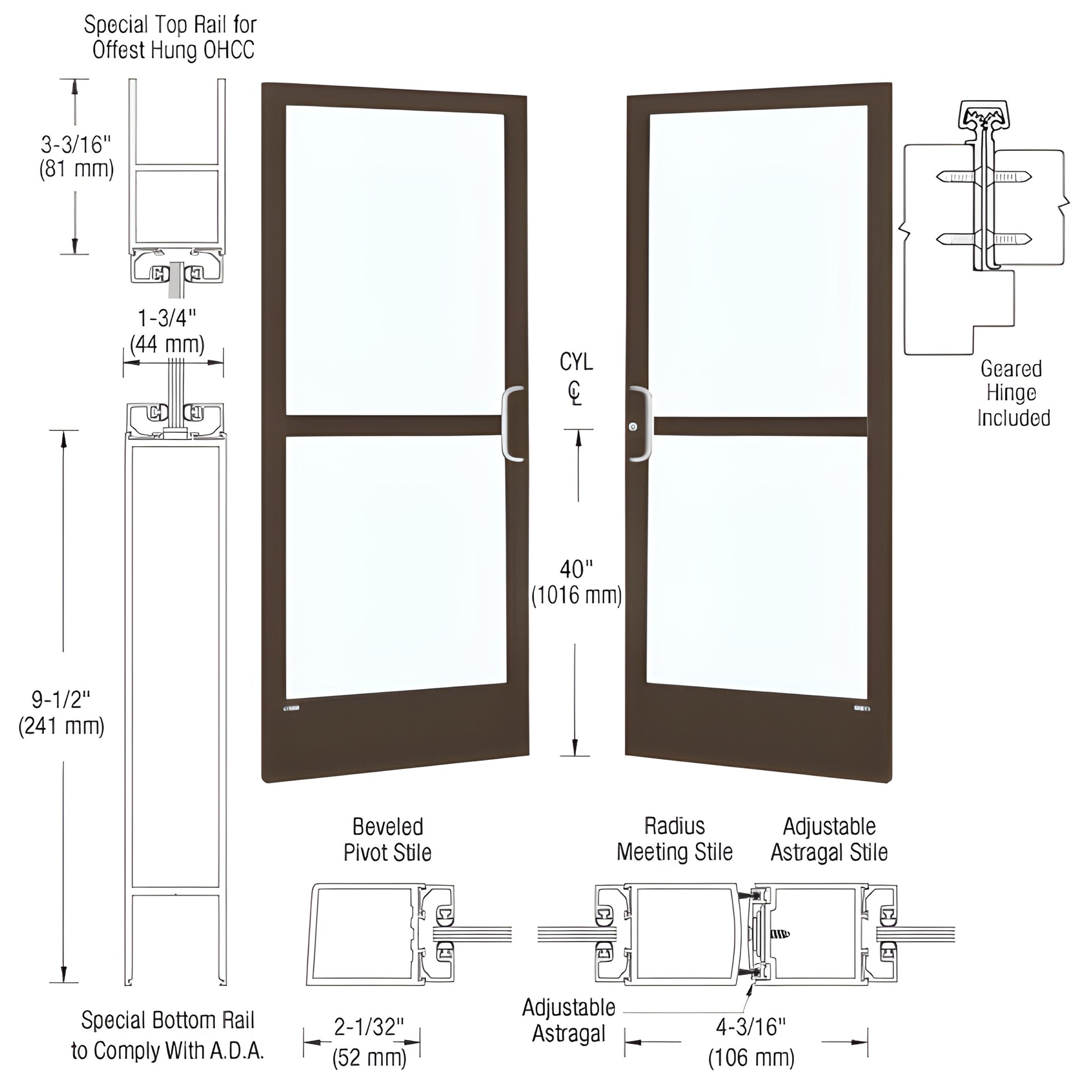

This CRL Custom Narrow Stile Entrance Door (SKU: CZ22922) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard design includes stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication, this narrow stile entrance door supports a wide range of optional commercial hardware and panic devices.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order the CZ22922 CRL Custom Narrow Stile Entrance Door today or contact CRL Customer Service for customization and shipping details.
Specifications
BIM Objects - rvt
