CRL-U.S. Aluminum 72x84 Bronze Black Anodized Series 250 Door Hinge
CRL-U.S. Aluminum 72x84 Bronze Black Anodized Series 250 Door Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE22522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Custom-fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) ADA-compliant bottom rail

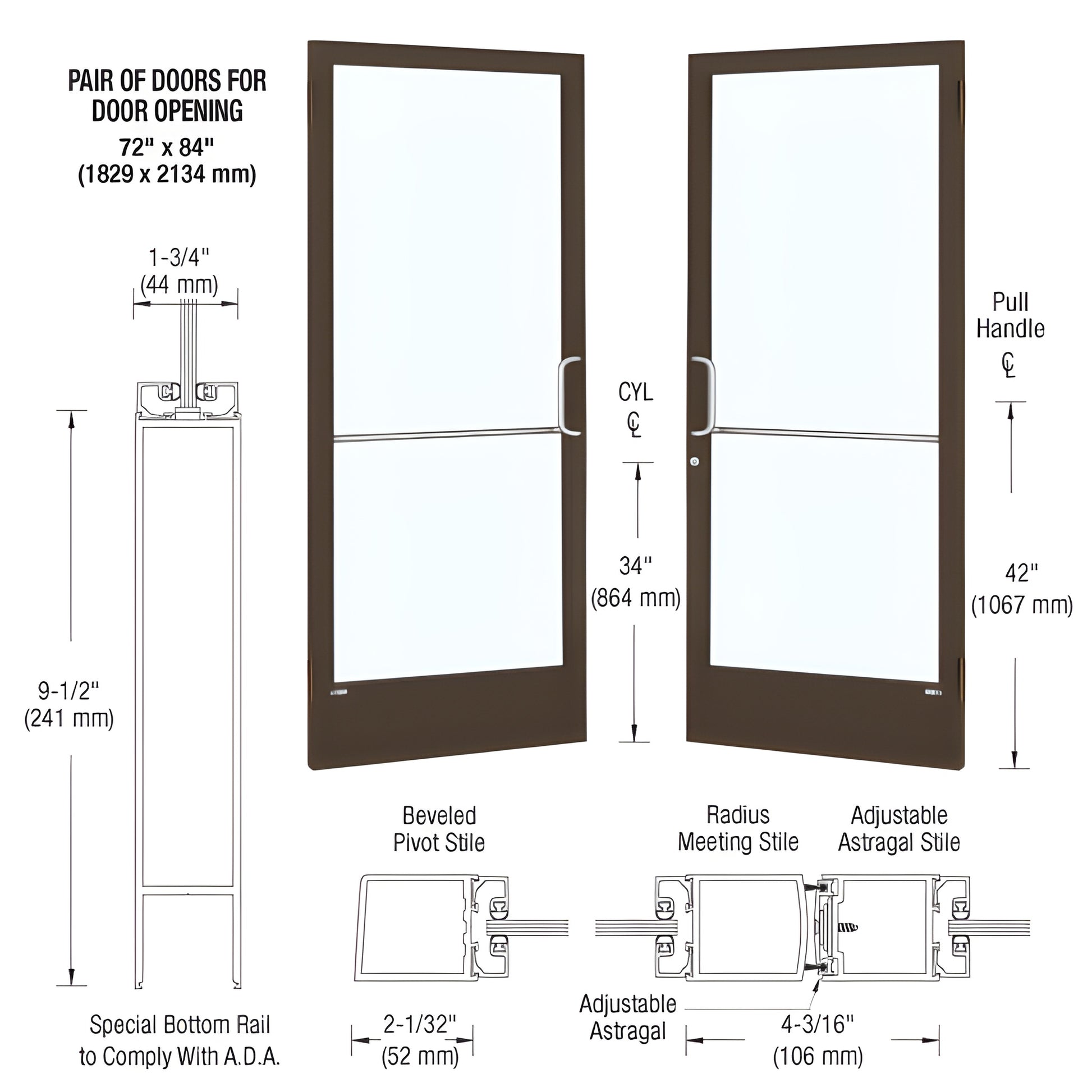

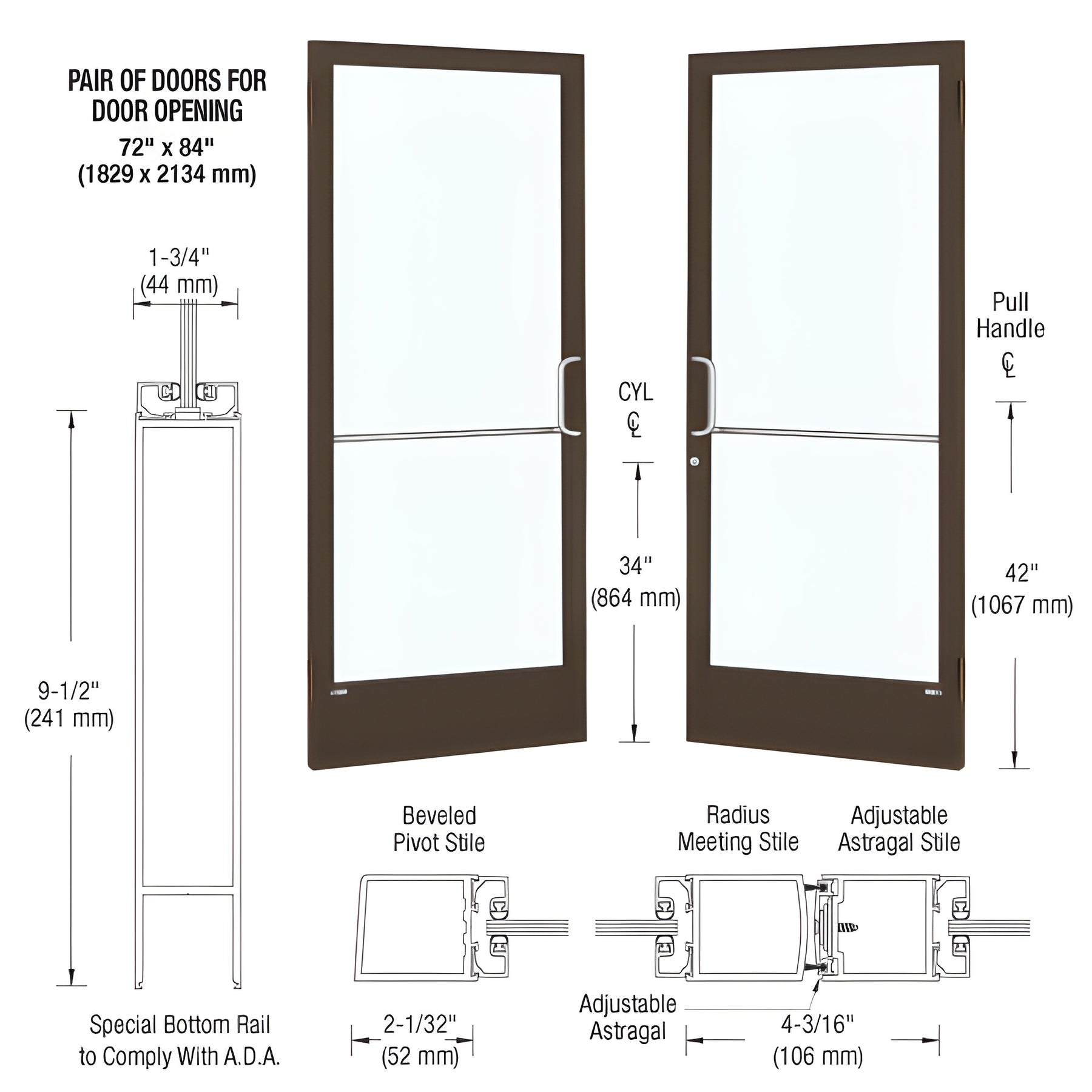

This Custom Narrow Stile Entrance Door (SKU: DE22522) features 2" (51 mm) narrow stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail to meet A.D.A. requirements. Standard construction includes stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Designed for easy on-site customization and a wide range of optional hardware installations.
Included protruding hardware (handles, pivots, etc.) ships boxed separately—customer installation required to avoid transit damage.
Specifications
BIM Objects - rvt
