CRL-U.S. Aluminum 72x84 Clear Anodized Door Pair for OHCC, Gear Hinge
CRL-U.S. Aluminum 72x84 Clear Anodized Door Pair for OHCC, Gear Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC22911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail option available for A.D.A. and Title 24 compliance
- Custom fabricated to accept optional hardware applications and gear hinge preparations

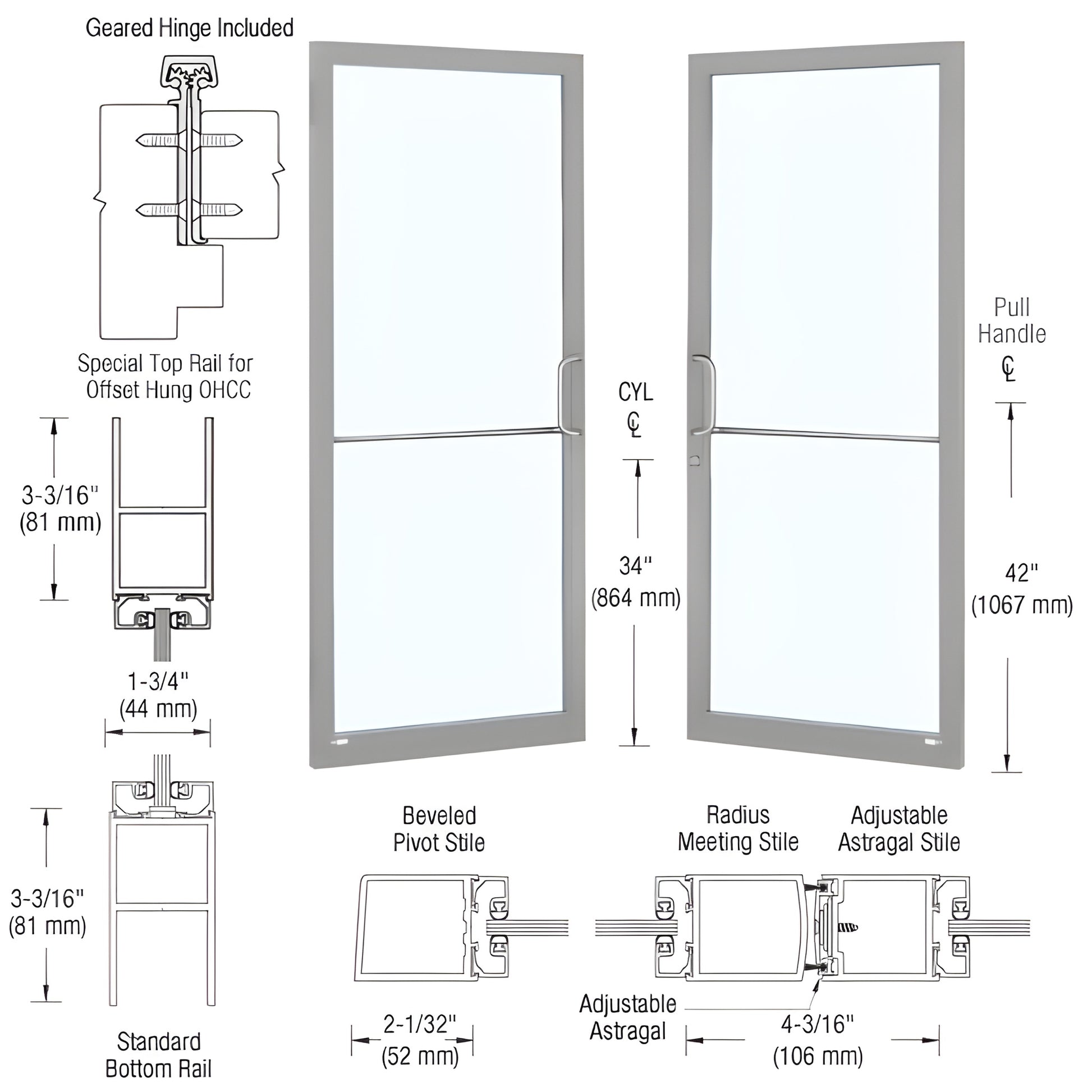

CRL Custom Narrow Stile Entrance Door—SKU: DC22911—is built with 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard features include stiles prepped for gear hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Ready for custom fabrication to accommodate a wide range of optional hardware applications.
Customer installation required for protruding hardware (handles, pivots, etc.), which ships boxed separately to avoid transit damage.
Order SKU DC22911 or contact CRL Customer Service to confirm specifications and shipping details.
Specifications
BIM Objects - rvt
