CRL-U.S. Aluminum 72x84 Clear Anodized Pair - Series250 Entrance Door
Item# DC22411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- Includes active and inactive leaf with all standard hardware (boxed separately to prevent transit damage)
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass sold separately)
- 9-1/2" (241 mm) bottom rail option available to meet A.D.A. and Title 24 applications
- Custom fabricated to accept a wide range of optional hardware applications

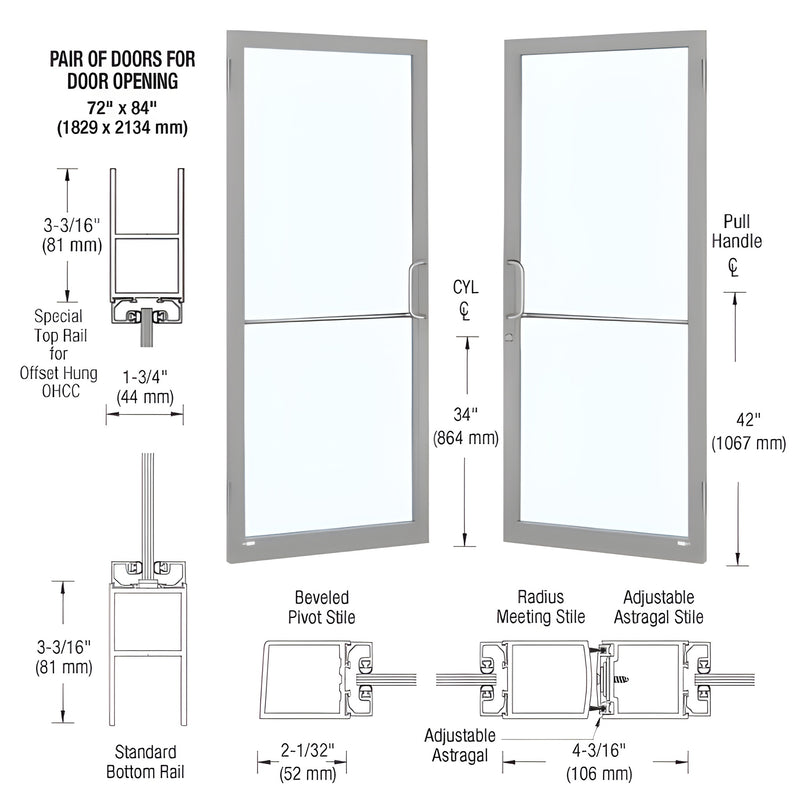

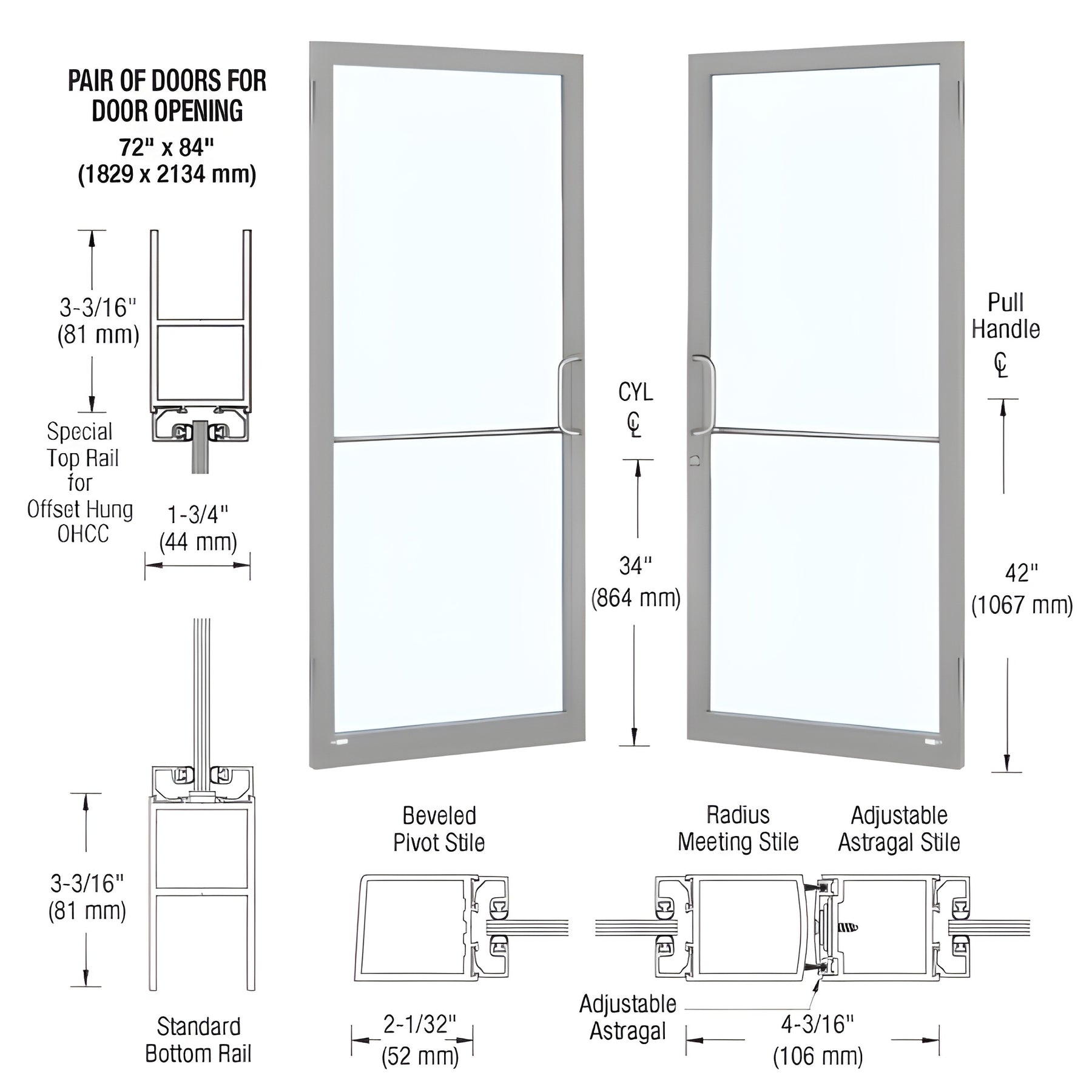

This CRL Custom Narrow Stile Entrance Door (SKU: DC22411) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail and a 3-3/16" (81 mm) bottom rail. Standard design includes stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Built for custom narrow-stile storefront and commercial entrance installations and compatible with optional insulating glass and specialty hardware.
Customer must install included protruding hardware (handles, pivots, etc.), which is shipped separately in a boxed kit to avoid damage.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.
Buy now: contact CRL Customer Service to confirm options, lead times and exact shipping weight for SKU DC22411.
