CRL-U.S. Aluminum 72x84 Kynar® Narrow Stile Butt Hinge Pair Door
CRL-U.S. Aluminum 72x84 Kynar® Narrow Stile Butt Hinge Pair Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE22471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes Active and Inactive Leaf with all standard hardware
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept optional hardware applications

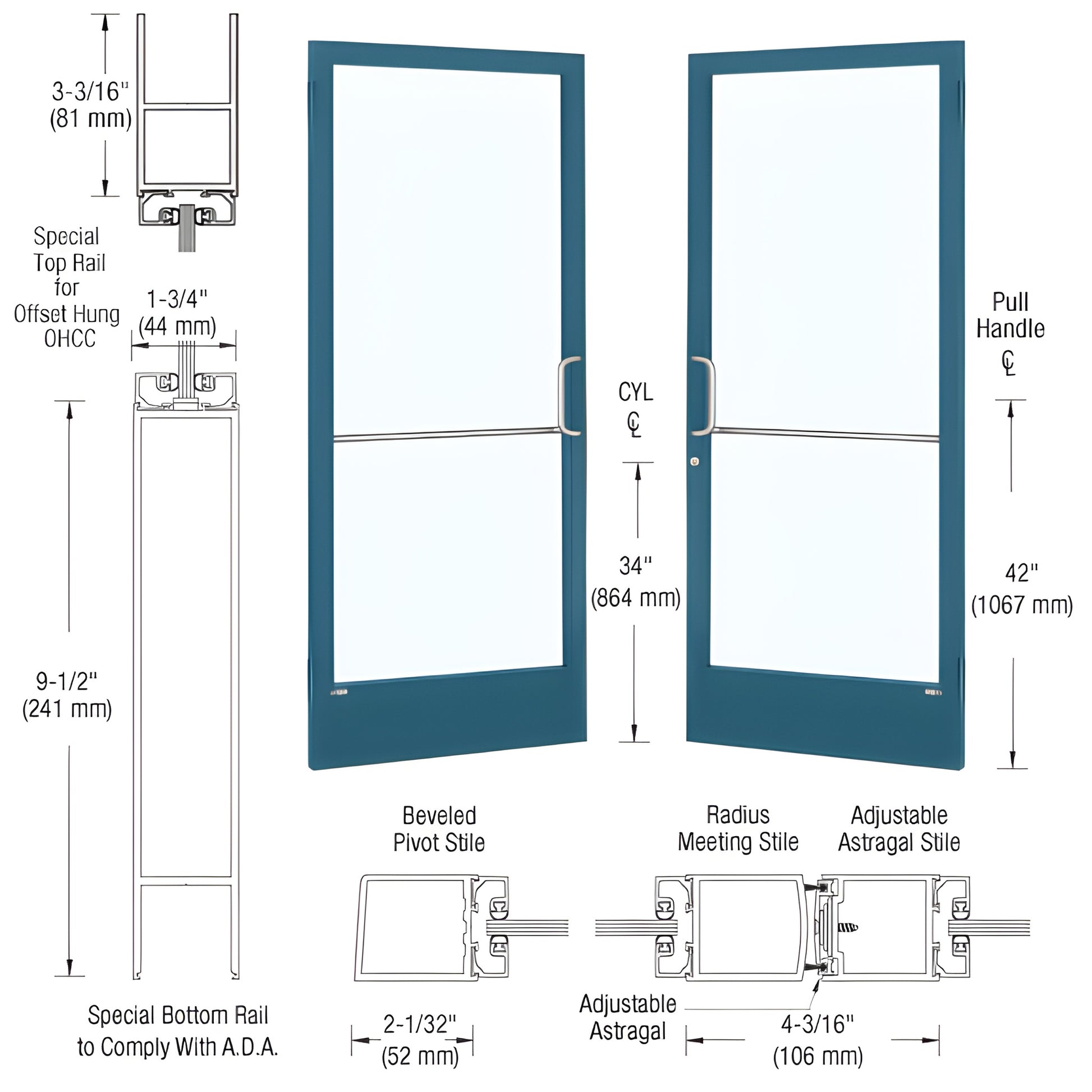

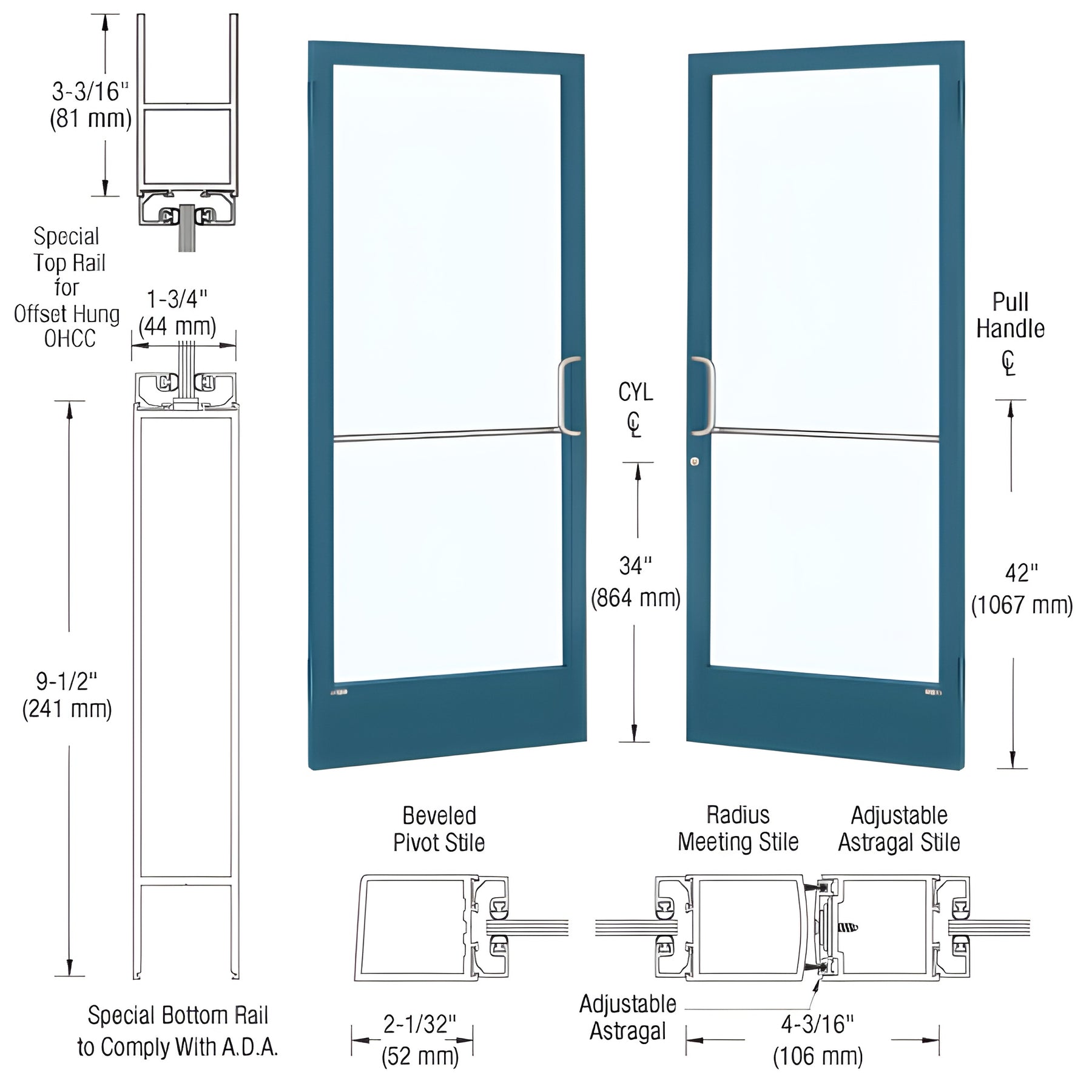

This Custom Narrow Stile Entrance Door (SKU: DE22471) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail to meet ADA requirements. Standard design accommodates butt hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The door is factory-ready for custom fabrication to accept a wide range of optional entrance hardware and commercial door fittings.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
Specifications
BIM Objects - rvt
