CRL-U.S. Aluminum 72x84 KYNAR® Narrow-Stile Gear Hinge Door Pair
CRL-U.S. Aluminum 72x84 KYNAR® Narrow-Stile Gear Hinge Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC22971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes Active and Inactive Leaf with all standard hardware (handles and pivots boxed separately to prevent transit damage)
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail option available for A.D.A. and Title 24/21 compliance
- Custom fabricated to accept a wide range of optional hardware applications and commercial storefront accessories

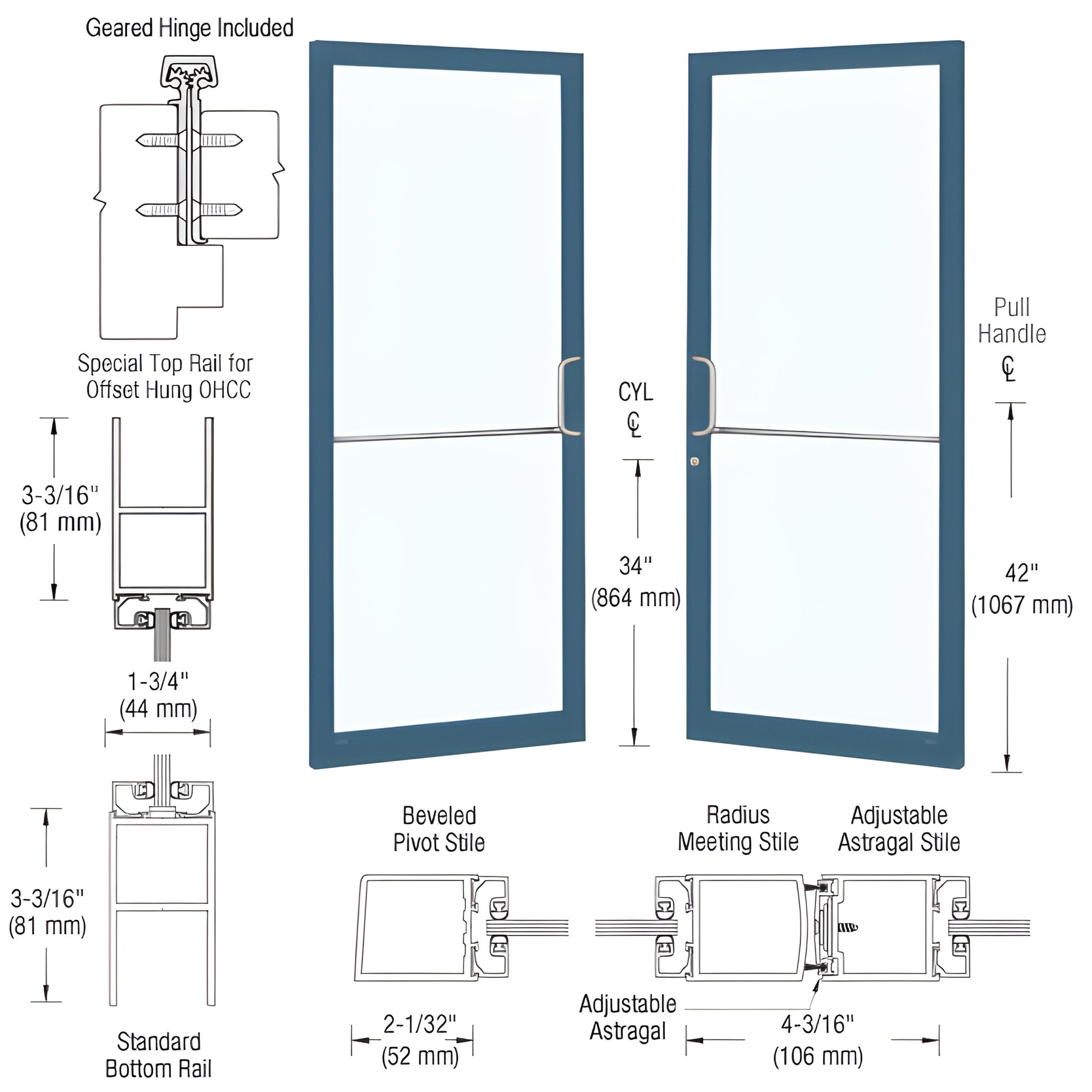

CRL Custom Narrow Stile Entrance Door (SKU: DC22971) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard provisions include stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Built for commercial storefront and office entrances, this narrow stile entrance door is ready for custom fabrication to meet specific hardware and accessibility requirements.
Customer installation required for included protruding hardware (handles, pivots, etc.), which is shipped separately to avoid damage.
Order SKU DC22971 or contact us for custom hardware options and lead times.
Specifications
BIM Objects - rvt
