CRL-U.S. Aluminum 72x84 Kynar® Paint Narrow Stile Butt-Hinge Entrance Door
CRL-U.S. Aluminum 72x84 Kynar® Paint Narrow Stile Butt-Hinge Entrance Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit also accepted (glass not included)
- 7-1/2" (191 mm) bottom rail available to meet A.D.A. and Title 24/21 applications
- Custom fabricated to accept a wide range of optional hardware applications
- Includes both active and inactive leaf with all standard hardware

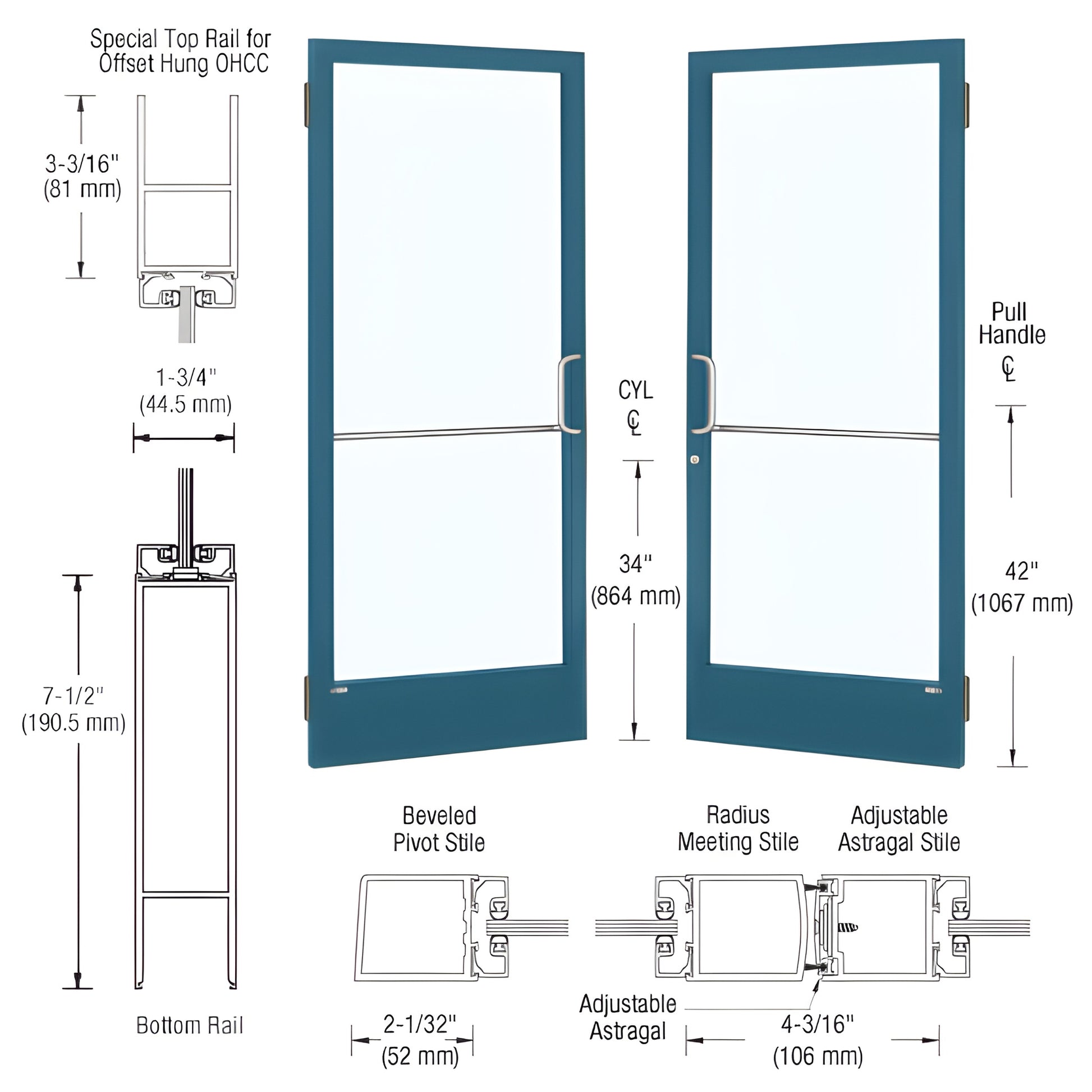

This Custom Narrow Stile Entrance Door (SKU: HE22471) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Door is ready for custom fabrication for commercial storefront and narrow stile entrance door hardware options.
Note: Customer must install protruding hardware (handles, pivots, etc.) shipped separately in boxed packaging to prevent transit damage.
Ordering tip: Specify required glass thickness and hardware options when you request a quote.
Specifications
BIM Objects - rvt
