CRL-U.S. Aluminum 72x84 KYNAR Painted Entrance Doors, Gear Hinge

• Includes standard push/pull, hanging hardware, MS Hookbolt Lock, and two keyed-alike cylinders
• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications
• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)

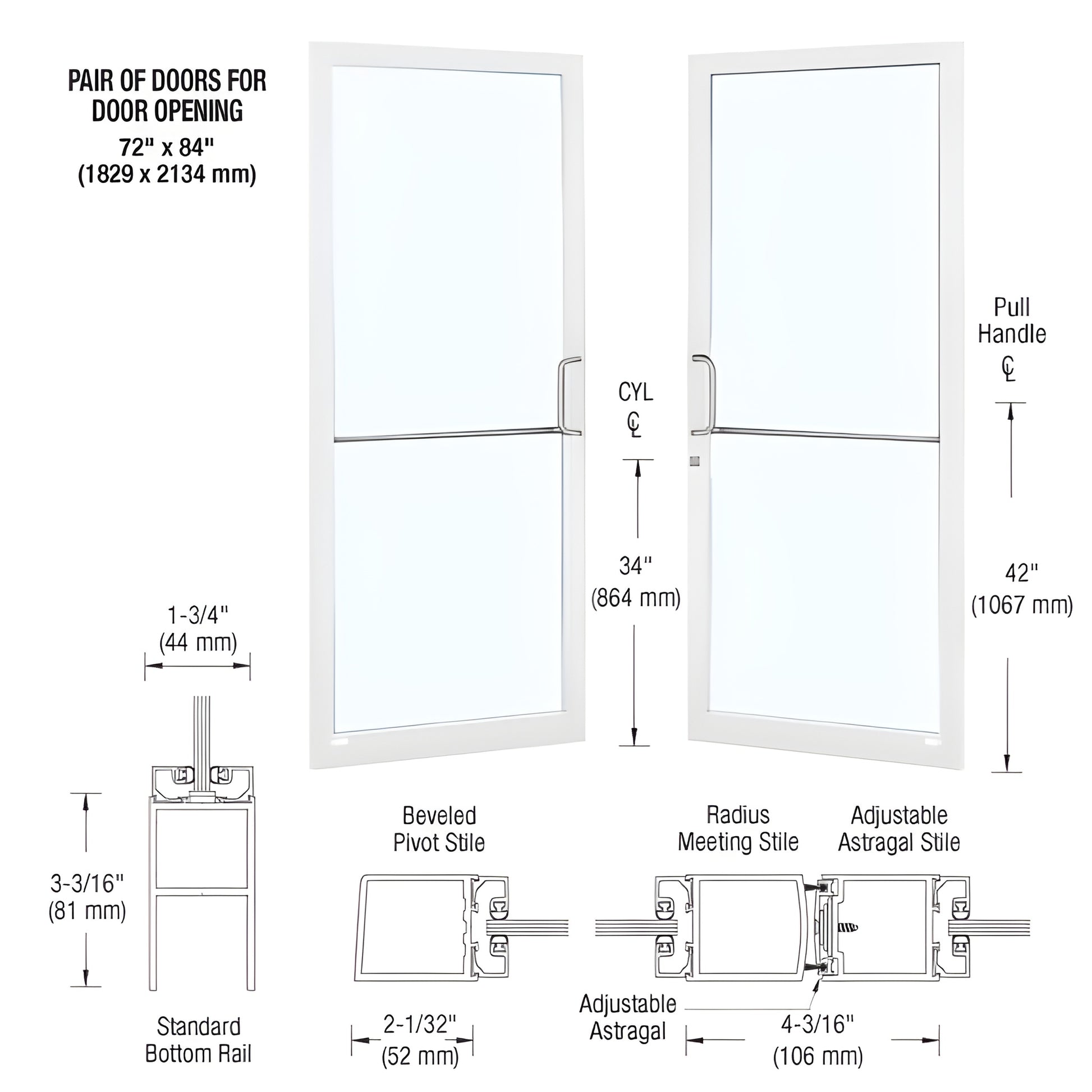

This Custom Narrow Stile Entrance Door (SKU: DC22852) is engineered for commercial storefronts and institutional entrances. Built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail, it ships ready for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass. Designed for easy customization, the frame accepts a wide range of optional hardware and can be configured for ADA and Title 21 compliance when ordered with the 9-1/2" bottom rail.

Note: included protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage and must be installed by the customer.

Order SKU DC22852 or contact CRL for custom hardware options and ADA configurations.
