CRL-U.S. Aluminum 72x84 Kynar Painted Narrow Stile Entrance Doors S250
Item# CZ22471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

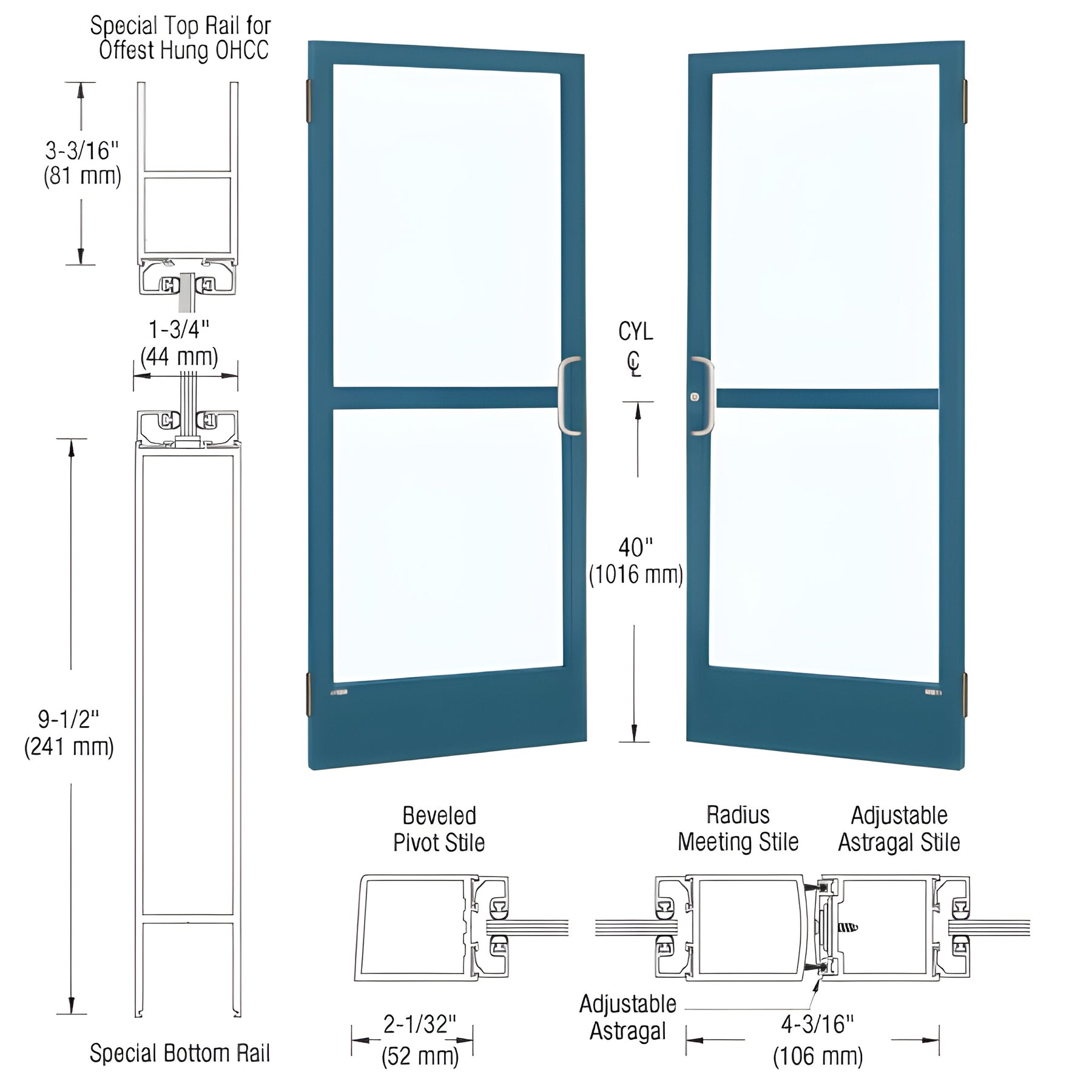

This CRL Custom Narrow Stile Entrance Door (SKU CZ22471) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Built for commercial narrow-stile entrance applications, it includes stiles prepared for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to support a wide range of optional hardware configurations, including concealed vertical rod panic hardware.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.
For pricing or to order SKU CZ22471, contact CRL Customer Service or request a quote today.
BIM Objects - rvt
