CRL-U.S. Aluminum 72x84 Narrow Stile Entry Door Pair w/ Gear Hinge
Item# CZ22871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with standard concealed vertical rod panic hardware

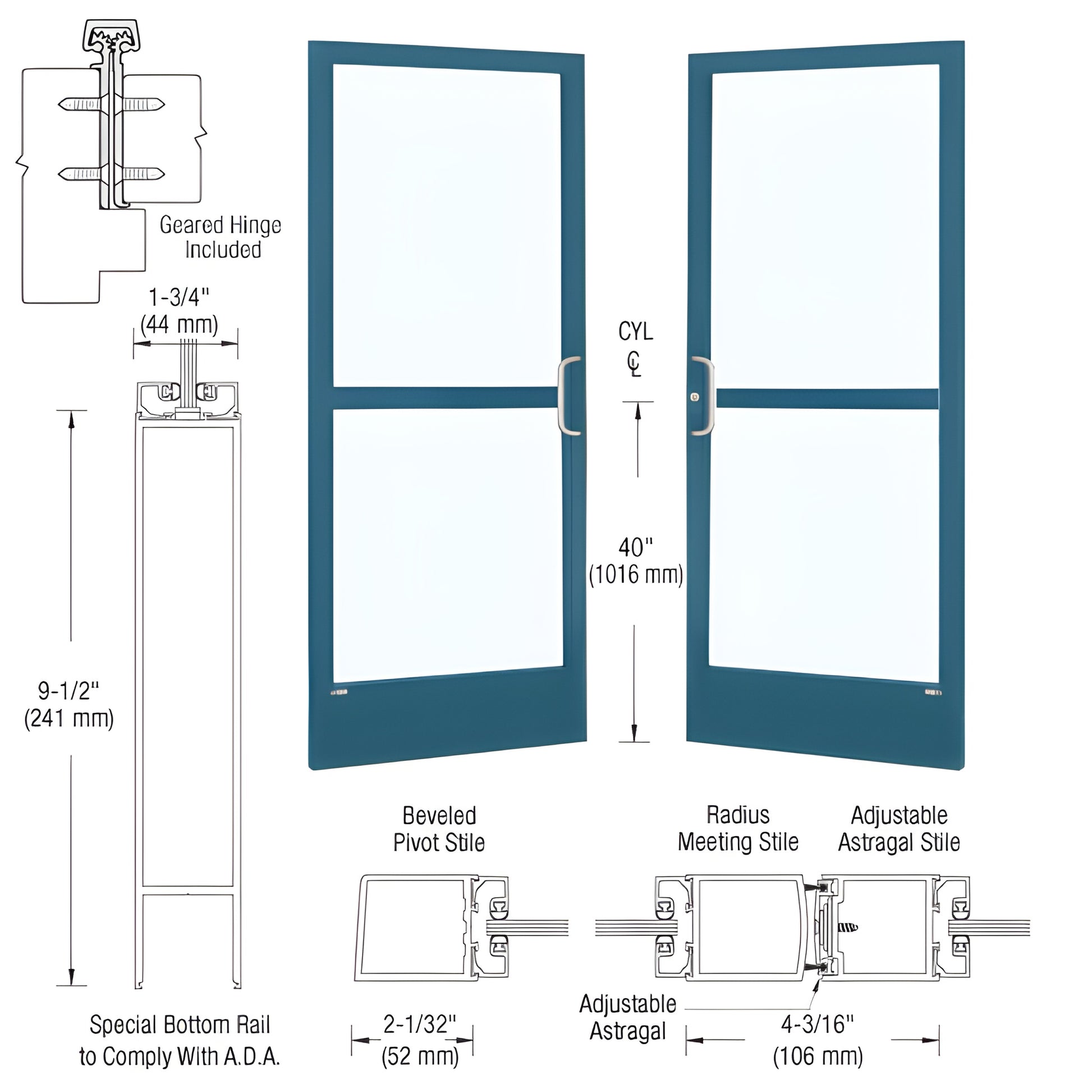

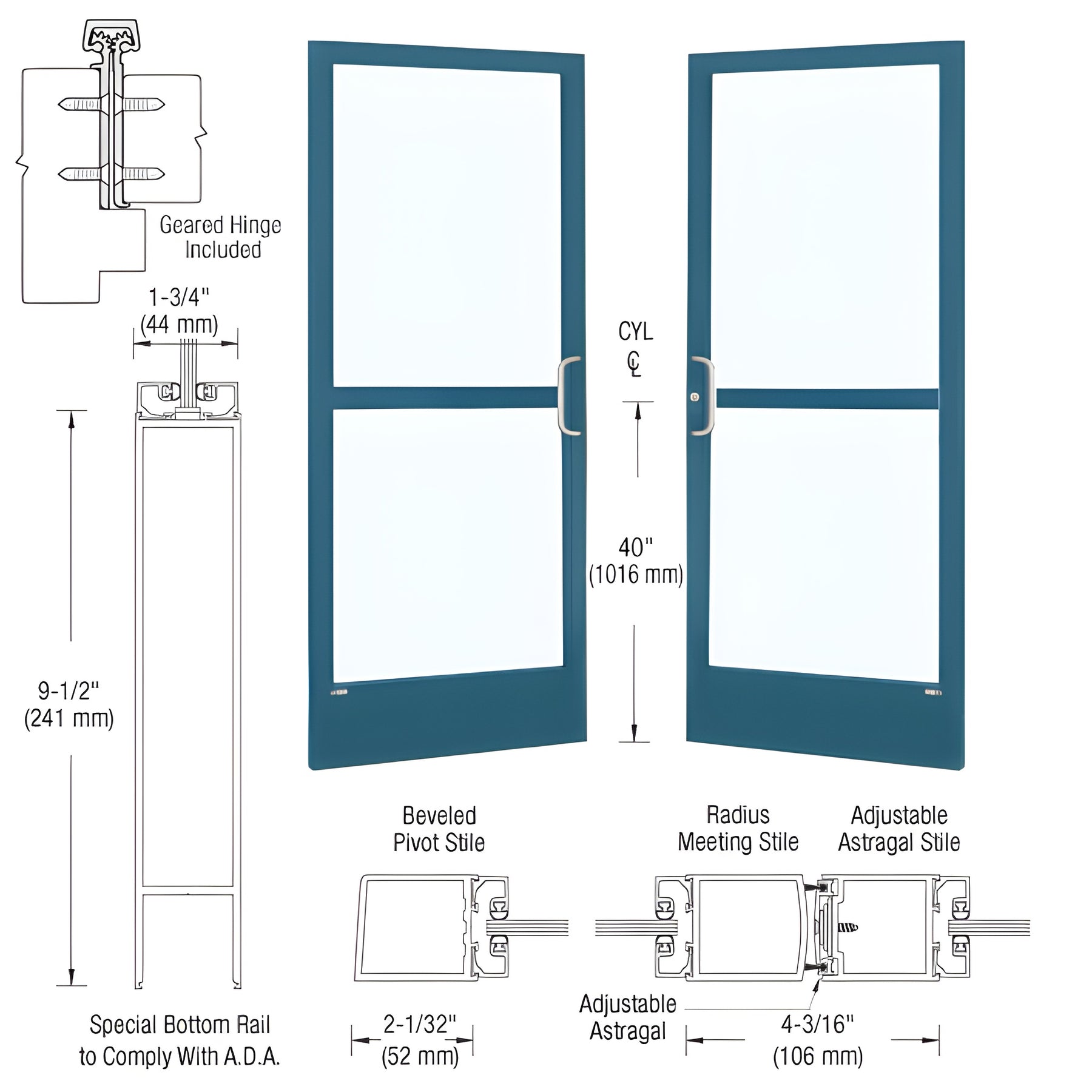

CRL Custom Narrow Stile Entrance Door (SKU: CZ22871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Built with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Designed for custom narrow-stile entrance door installations and ready for a wide range of optional hardware applications.
Hardware such as handles and pivots is boxed separately to prevent transit damage and must be installed by the customer.
Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Need customization, exact weight, or a quote for SKU CZ22871? Contact CRL Customer Service or order now.
