CRL-U.S. Aluminum 72x84 Pair Narrow-Stile Butt Hinges Black Anodized
CRL-U.S. Aluminum 72x84 Pair Narrow-Stile Butt Hinges Black Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ22522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)

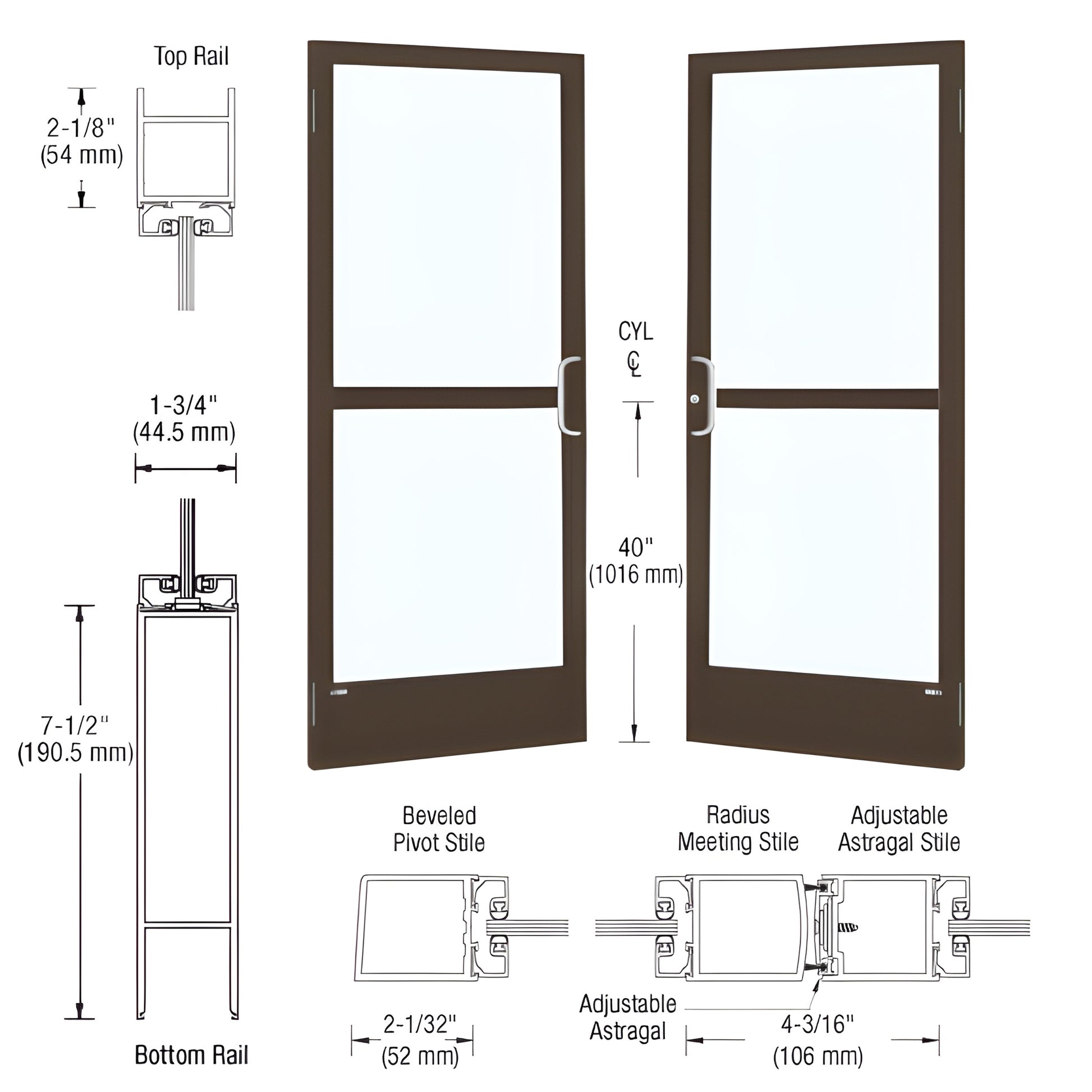

This Custom Narrow Stile Entrance Door (SKU: HZ22522) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom narrow-stile entrance applications, the door is ready for a wide range of optional hardware and panic-device installations.
Handles, pivots, and other protruding hardware are boxed separately to prevent transit damage and must be installed by the customer.
Order the HZ22522 custom narrow stile entrance door or contact us for pricing and hardware options.
Specifications
BIM Objects - rvt
