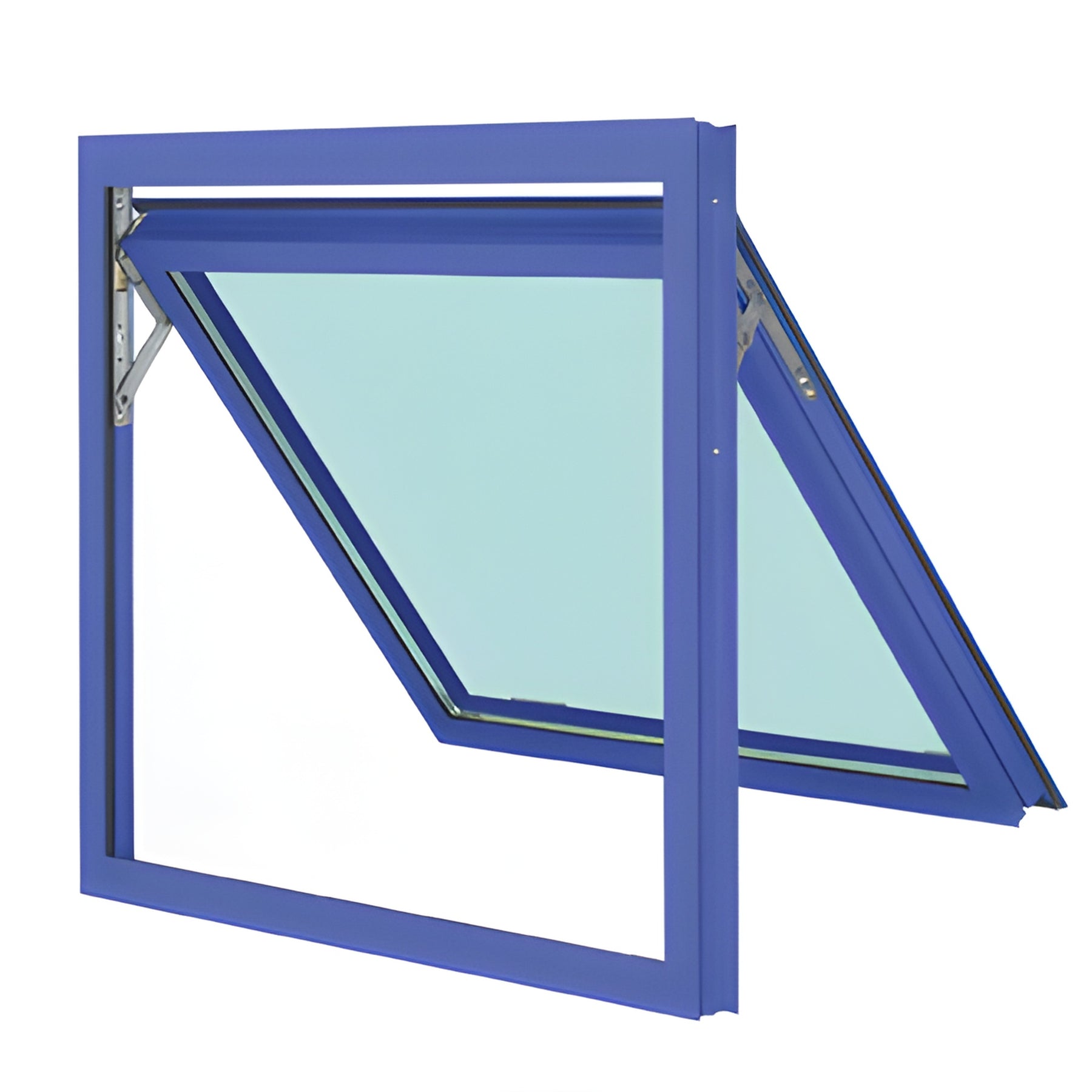

CRL-U.S. Aluminum Clear Anodized 7300 Series Project-Out Bottom Vent Window

Product Details

• .125" Nominal Wall Thickness
• Thermally Broken System for Exceptional Thermal Performance
• Reinforced Corners with an Aluminum Corner Key
• HC-75 AAMA Rated

All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside. Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.

Operating Hardware Includes: Stainless steel 4-bar hinges and cam locking handles

Optional Hardware Include: Roto operator, limit device, friction adjuster, lift handle lock, access control lock, Screens, wicket box

Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, and extruded sill flashing.
