Product Details
- HC-75 AAMA Rated for Casement and Projected Windows
- CW-90 AAMA Rated for Fixed Windows
- .125 Nominal Wall Thickness for All Vents
- Thermally Broken System for Exceptional Thermal Performance
- Reinforced Corners with Aluminum Corner Key on All Vents
All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside. Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.
Optional Hardware Include: Stainless steel 4-bar hinges, and cam locking handles, 90 degree 4-bar stainless steel (for casements with egress), 5 knuckle butt hinges, roto operator (for out-swing casement only), limit device, friction adjuster, lift handle lock, access control lock, screens, wicket box, two point locking handles, and security locks
Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, extruded sill flashing.
Window Configurations:
Fixed over Fixed
Fixed over Fixed

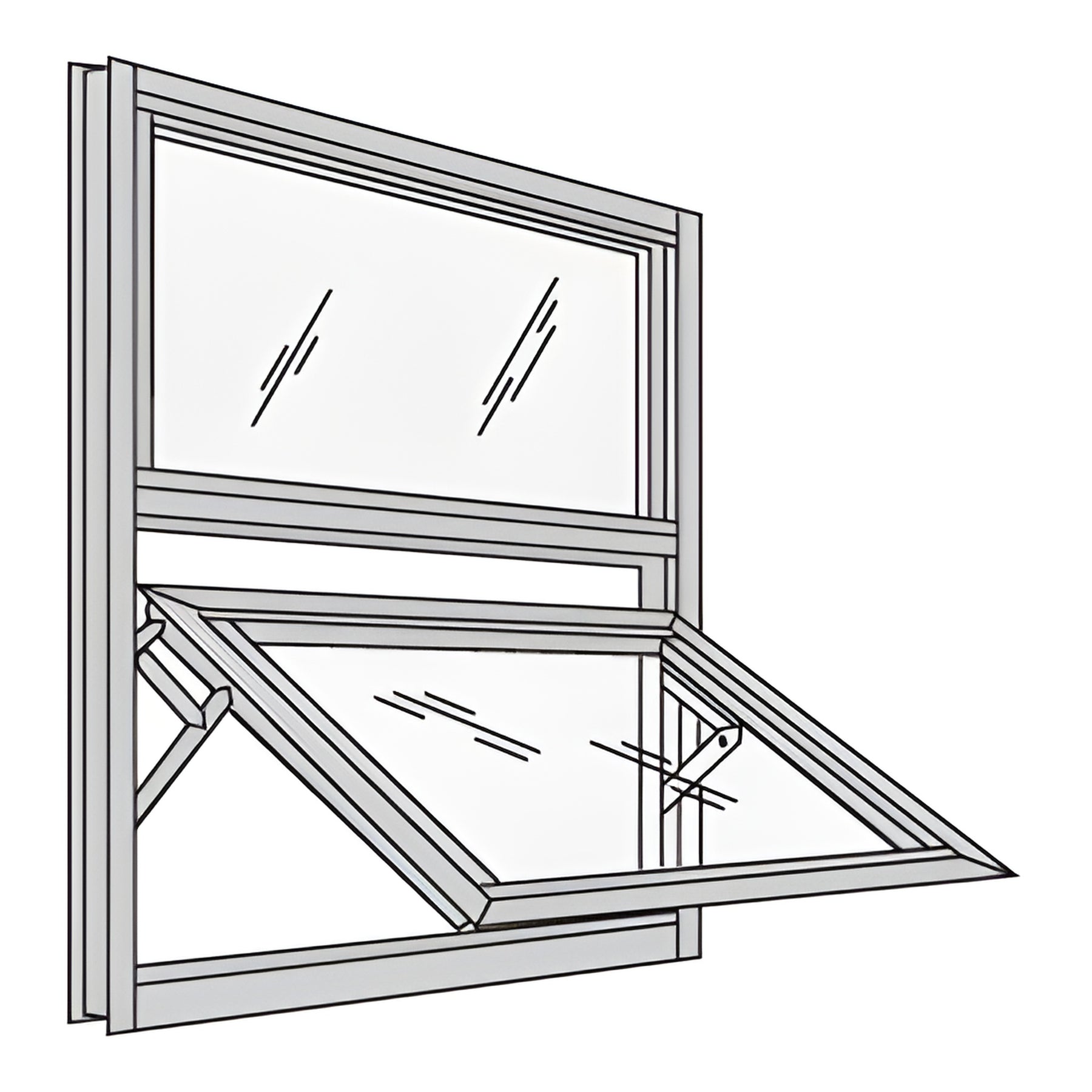

Fixed over Project-out
Fixed over Casement
Fixed over Project-in
Project-out over Fixed
Project-out over Project-out
Project-out over Casement
Project-out over Project-in
Casement over Fixed
Casement over Project-out
Casement over Casement
Casement over Project-in
Project-in over Fixed
Project-in over Project-out
Project-in over Casement
