Product Details
- HC-75 AAMA Rated
- .125" Nominal Wall Thickness
- Thermally Broken System for Exceptional Thermal Performance
- Reinforced Corners with an Aluminum Corner Key

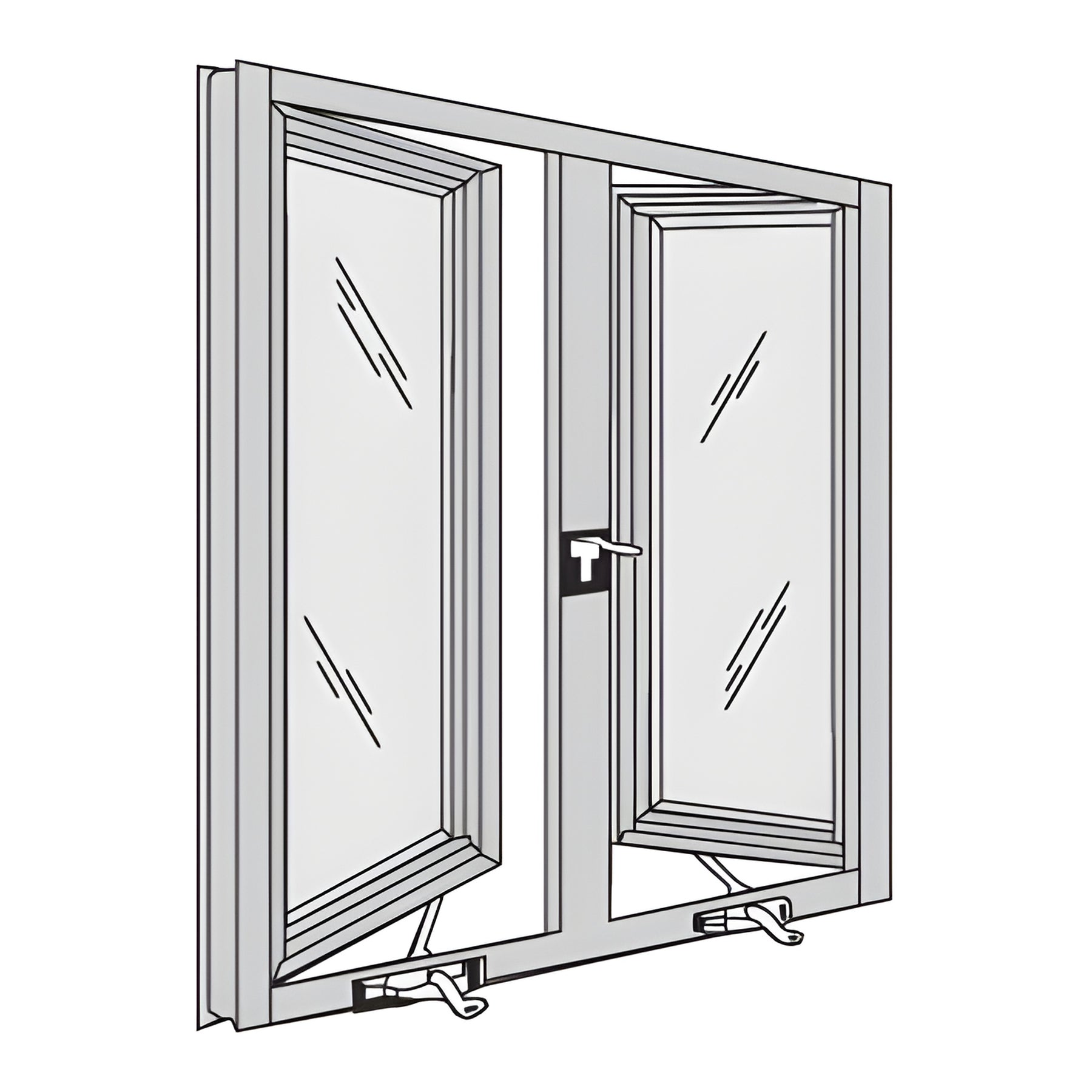

All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside. Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.
Operating Hardware Includes: Stainless steel 4-bar hinges, and cam locking handles
Optional Hardware Includes: 90 degree 4-bar stainless steel hinge (for egress), 5 knuckle butt hinges, roto operator, limit device, friction adjuster, lift handle lock, access control lock, screens
Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, extruded sill flashing
Optional Window Configuration: Non thermally broken for 1/4" Glazing.
