CRL-U.S. Aluminum 850 Durafront Clear Anodized Geared Hinge Door
CRL-U.S. Aluminum 850 Durafront Clear Anodized Geared Hinge Door
Regular price
$1,631.31 CAD
Regular price
Sale price
$1,631.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC91811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
- Custom fabricated to accept optional hardware applications
- 6-1/2" (165 mm) Bottom Rail

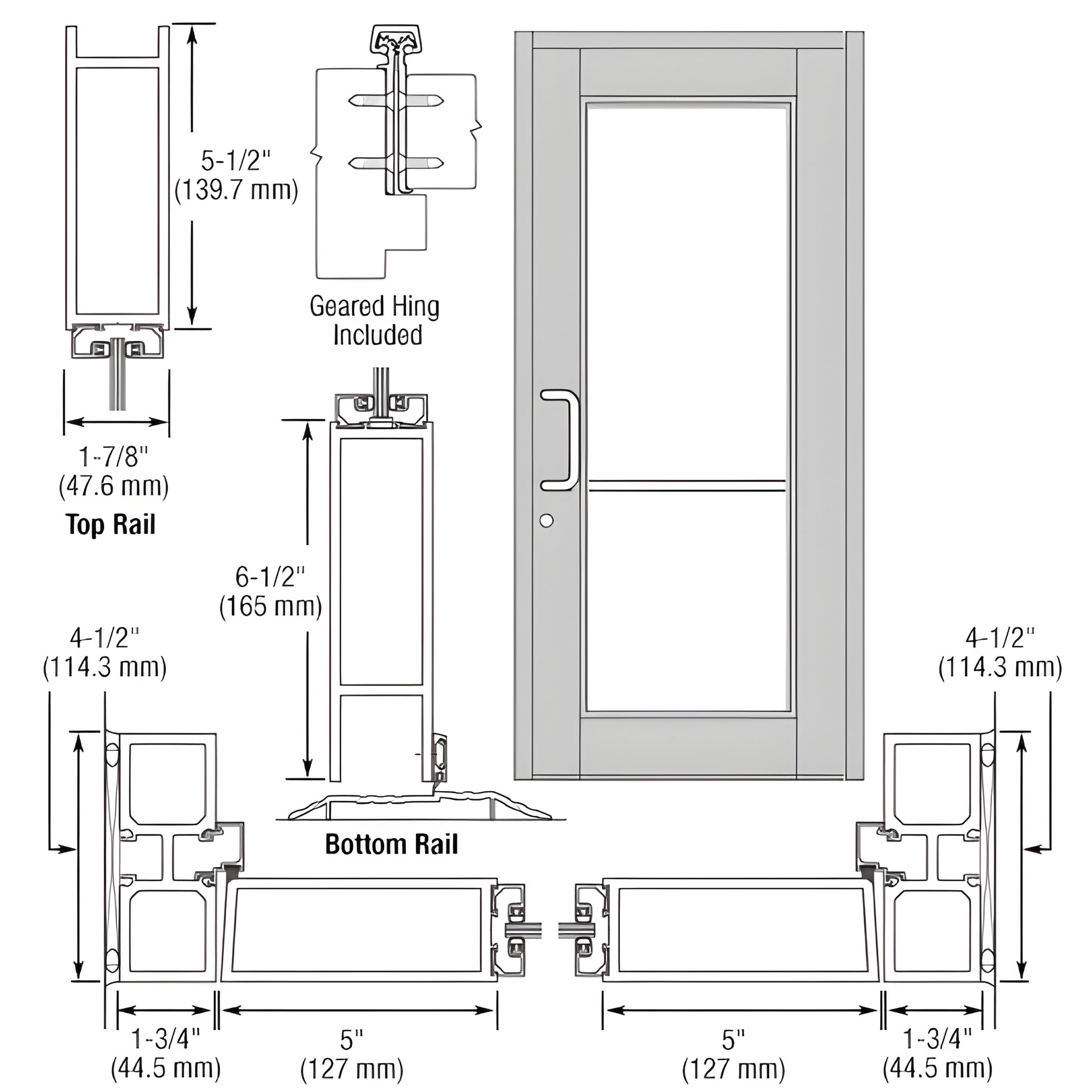

This Custom Durafront WS Entrance Door (SKU: DC91811) is designed for commercial and architectural use with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction includes stiles configured for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The unit is ready for custom fabrication to accommodate a wide range of optional hardware applications and commercial door configurations.
Customers must install the included protruding hardware (handles, pivots, etc.), which ships boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Specifications
BIM Objects - rvt
