CRL-U.S. Aluminum 850 KYNAR Wide-Stile Geared-Hinge Entrance Doors
Item# DC92871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
SKU: DC92871
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail option for ADA and Title 24 compliance
- Custom fabricated to accept a wide range of optional hardware applications

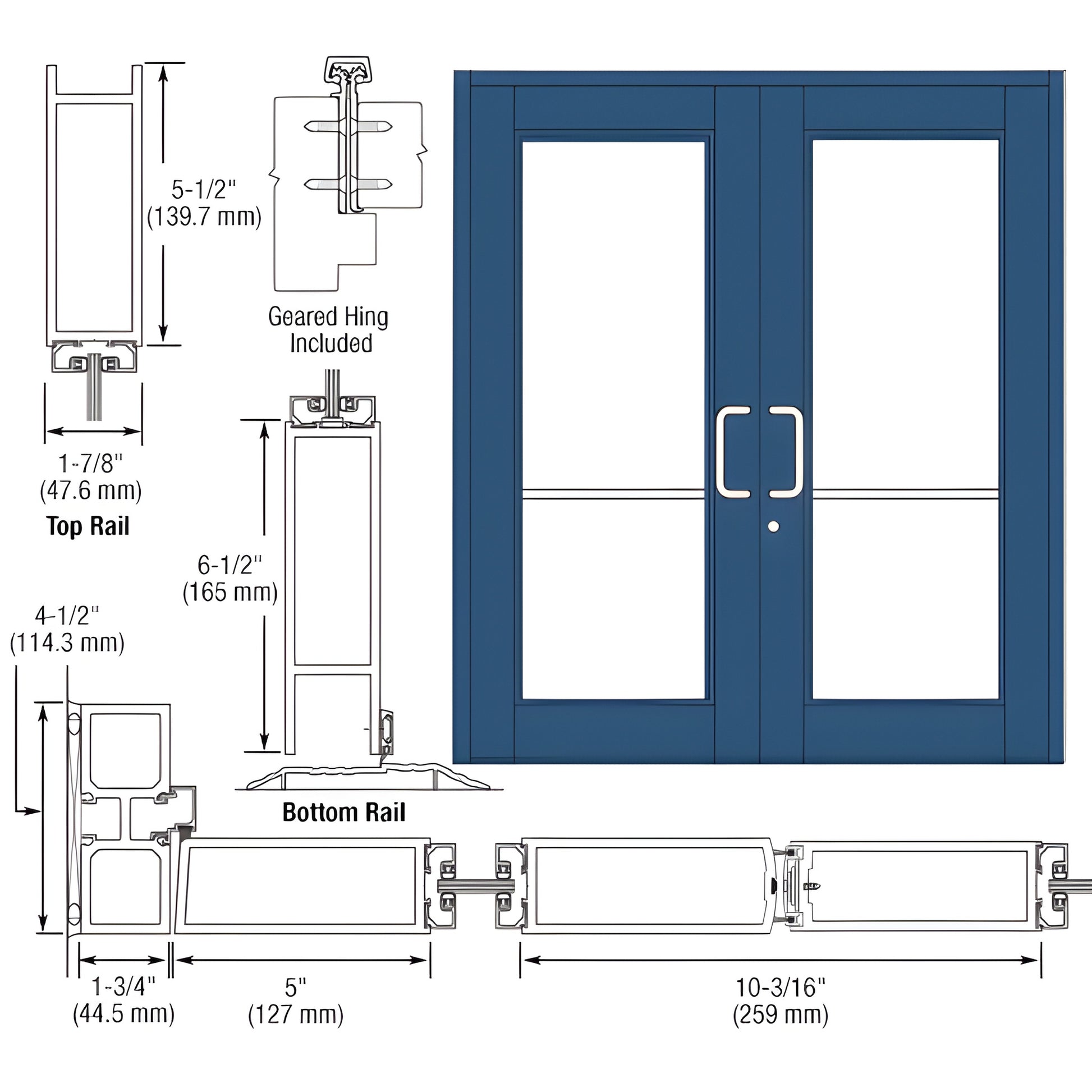

Custom Durafront WS Entrance Door built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Door is ready for custom fabrication to accommodate optional exterior and commercial door hardware.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer or installer upon delivery.
Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs before ordering, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.
Contact CRL Customer Service for exact weights, lead times, or to request custom hardware options.
