CRL-U.S. Aluminum 900 Clear Anodized Right-Hand Terrace Transom Hinge

CRL-U.S. Aluminum 900 Clear Anodized Right-Hand Terrace Transom Hinge

$4,519.15 CAD
$4,519.15 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# TND91511R0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 1" x 4-1/2" (25 x 144 mm) transom frame — compatible with standard commercial transom installations
  • Accepts 1" (25 mm) insulating glass — ready for 1" IG units (glass by others)
  • Thermally broken door and transom frame for improved energy efficiency
  • Five-point locking device and five-point locking hardware for enhanced security
  • Standard bottom rail and threshold designed for swing-out applications

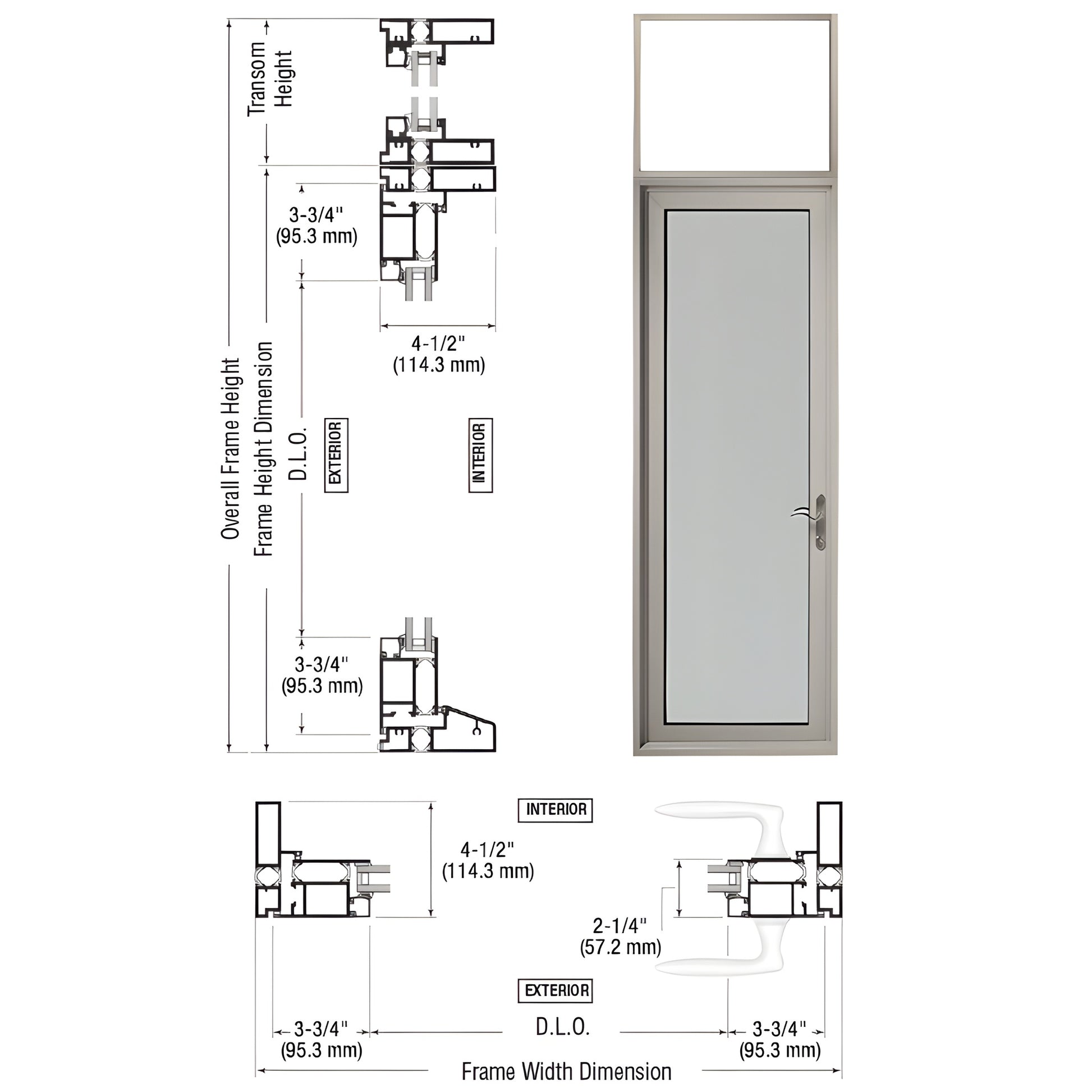

This CRL Series 900 Terrace Door Single Hinge Right Swing Out Transom (SKU: TND91511R0) features a 1" x 4-1/2" frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 3-3/4" (95 mm) bottom rail, and a standard threshold. Standard details include stiles for butt hinge hardware and glass stops sized for 1" (25 mm) tempered glass. Ideal for commercial and residential terrace door openings where thermal break, security, and compatibility with insulating glass are required.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Order the CRL Series 900 transom door (SKU: TND91511R0) or contact CRL for a quote and glazing recommendations.

Specifications

BIM Objects - rvt
Series 900 Terrace BIM.rvt
