CRL-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Pair Swing Out

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUTND92522P0
Pack Size1
Finish/Color:Black Bronze Anodized Class 1

Description

Product Details

  • Thermally Broken Door and Frame
  • Glass Stops for 1" Insulated Glass
  • Door and Frame Shipped Assembled
  • Seven-Point Locking Hardware
  • 1-1/2 Pair Five Knuckle Hinges with Non Removable Pins

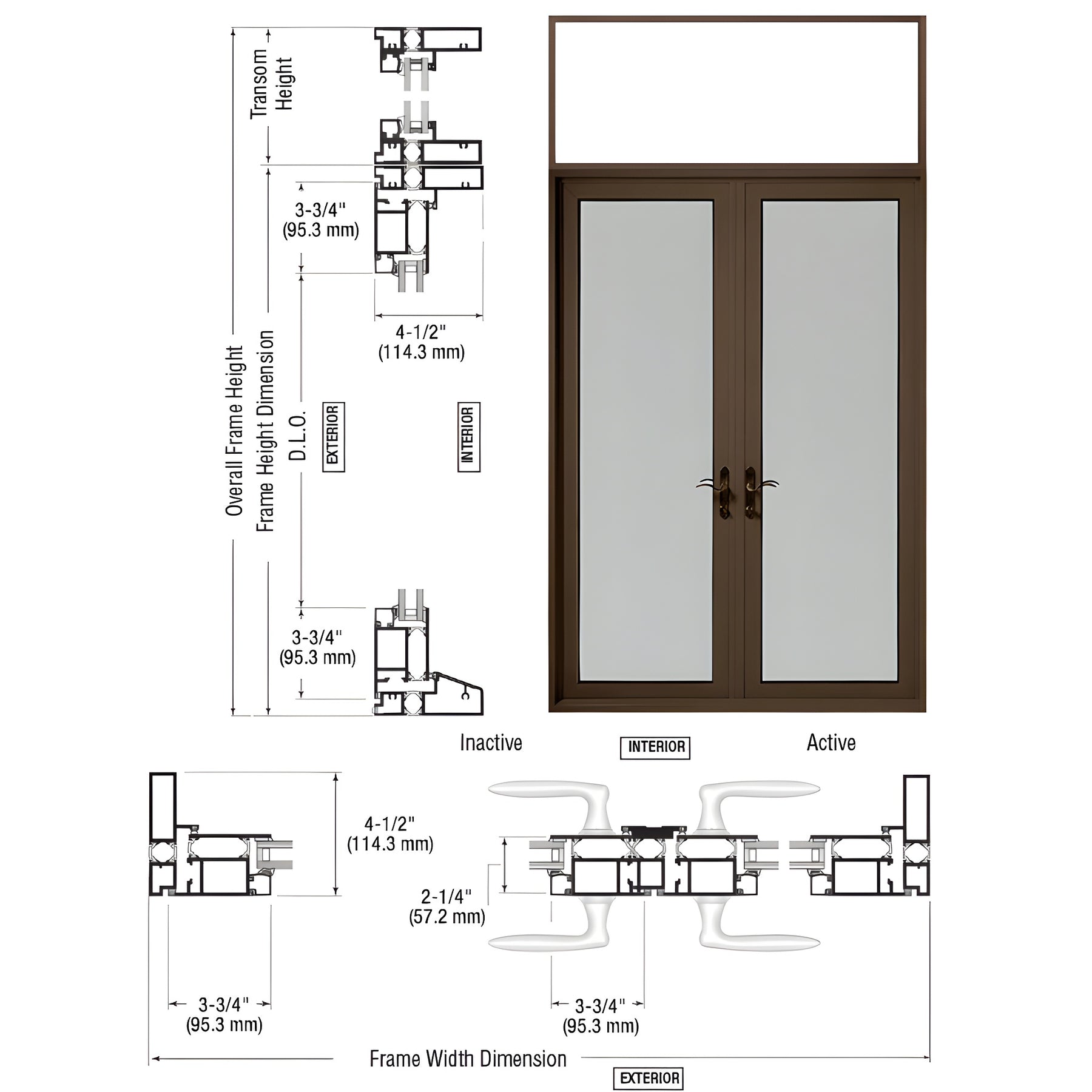

This CRL Series 900 Terrace Entrance is built with 1" x 4-1/2" (25 x 114.3) Transom Frame, 2-1/4"(57.2) Thick Door, 3.75" (95 mm) Stiles, 3.75" (95 mm) Top Rail, and 3.75" (95 mm) Bottom Rail. Standard features include stiles for Butt Hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and Five-Point Locking Hardware

Specifications

Technical Resources

Brochures & Literature

Installation Instructions

BIM Objects - rvt

BIM Objects - pdf

Quote Request Forms

Specifications

CAD Drawings - pdf

CAD Drawings - dwg

Engineering & Test Reports

Glazing Charts

Numbering Keys
