CRL-U.S. Aluminum 925 Clear Anodized Left Swing-Out Patio Door Hinge
CRL-U.S. Aluminum 925 Clear Anodized Left Swing-Out Patio Door Hinge
Regular price
$3,905.06 CAD
Regular price
Sale price
$3,905.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA91511L0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 1" x 4-1/2" (25 x 144 mm) framing
- Accepts 1" (25 mm) insulating glass
- Thermally broken door and frame for improved energy performance
- Five-point locking device for enhanced security
- 10" bottom rail and low-profile threshold for swing-out applications

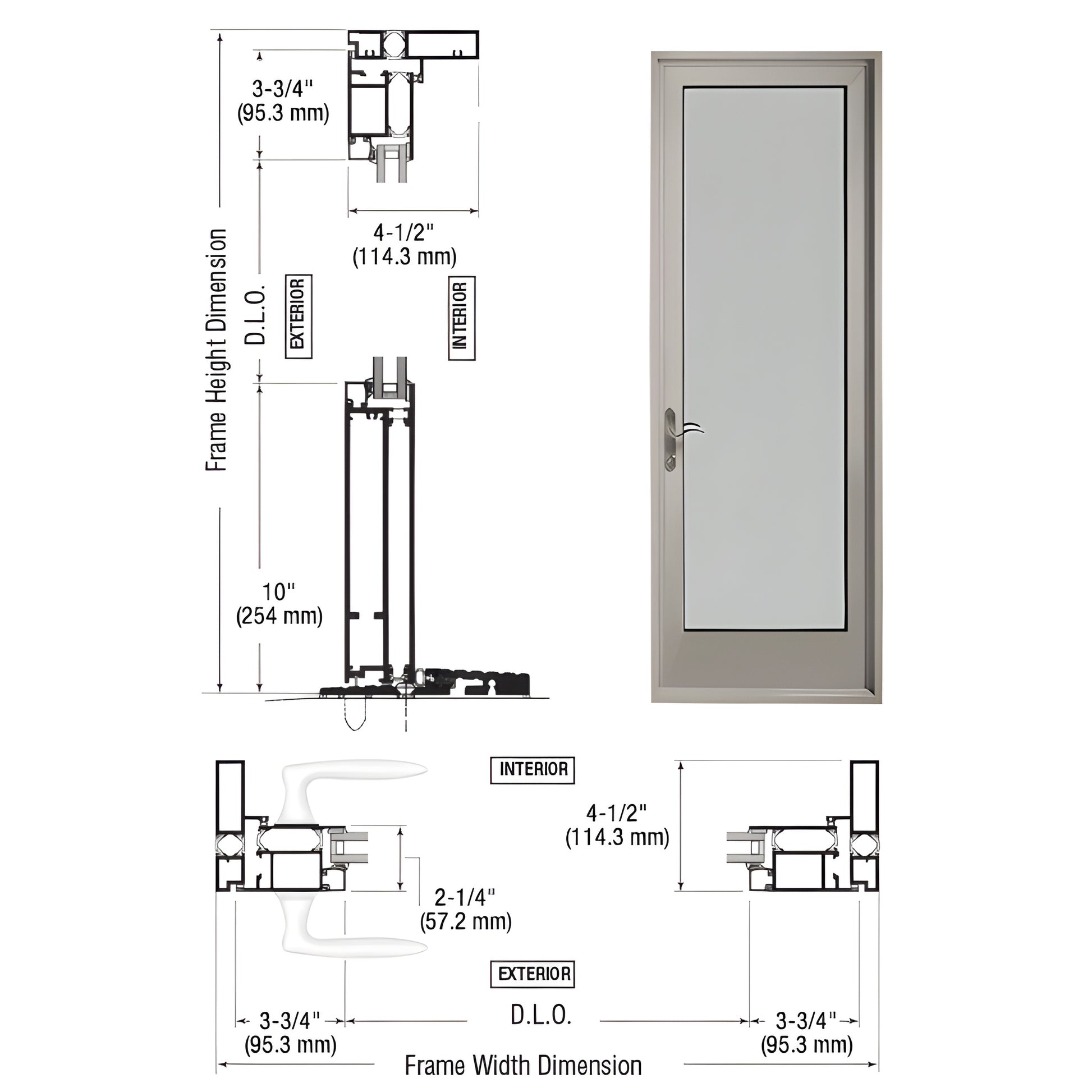

This CRL Series 925 Single Patio Door Entrance (SKU: PA91511L0) features a 1" x 4-1/2" frame, 2-1/4" thick door, 3.75" stiles, 3.75" top rail, 10" bottom rail, and a low-profile threshold. Standard features include stiles prepped for butt hinge hardware, glass stops to accept 1" tempered glass (by others), and five-point locking hardware—making it a thermally broken patio door solution ideal for energy-efficient single patio door entrances and secure residential or light-commercial applications.
Specifications
