CRL-U.S. Aluminum 925 KYNAR Single Transom Left-Swing Patio Hinge
CRL-U.S. Aluminum 925 KYNAR Single Transom Left-Swing Patio Hinge
Regular price
$4,649.63 CAD
Regular price
Sale price
$4,649.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PNL91571L0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
- Accepts 1" (25 mm) Insulating Glass
- Thermally Broken Door and Frame
- Five-Point Locking Device
- Standard 3" Bottom Rail and Low Profile Threshold for Out Swing Applications

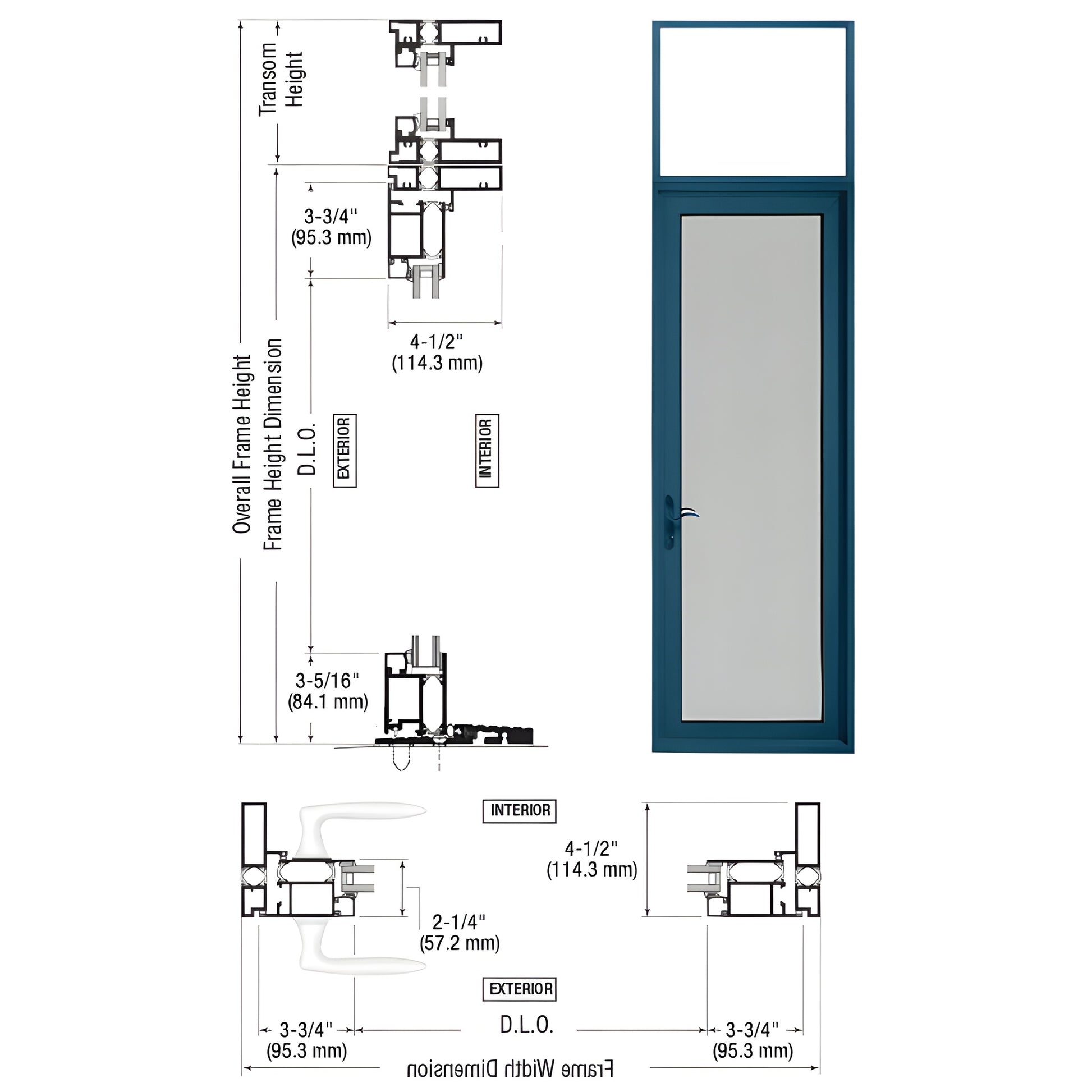

This CRL Series 925 Single Patio Entrance features a 1" x 4-1/2" (25 x 114.3 mm) transom frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 3" (76 mm) bottom rail, and a low profile threshold. Standard details include stiles prepared for butt hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and five-point locking hardware—ideal for projects specifying a thermally broken patio entrance door or a secure five-point locking patio door. SKU: PNL91571L0.
Order the CRL Series 925 Single Patio Entrance (SKU PNL91571L0) or contact CRL for a quote and lead time.
Specifications
