CRL-U.S. Aluminum Clear Anodized Series 925 Single Transom Patio Door Hinge Left Swing Out

Product Details

• 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Frame
• Five-Point Locking Device
• Standard 3" Bottom Rail and Low Profile Threshold for Out Swing Applications

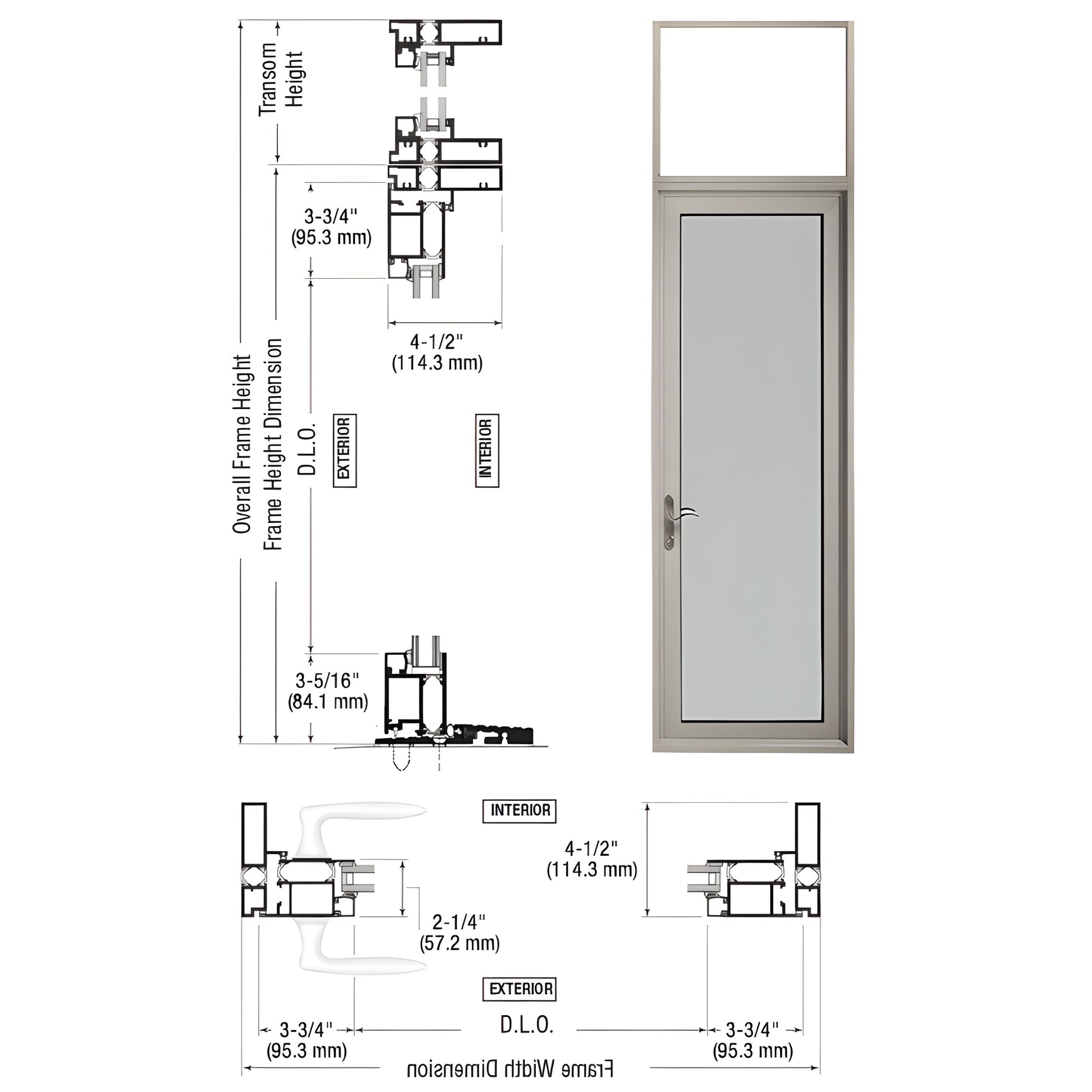

This CRL Series 925 Single Patio Entrance is built with 1" x 4-1/2" (25 x 114.3 mm) Transom Frame, 2-1/4" (57.2 mm) Thick Door, 3.75" (95 mm) Stiles, 3.75" (95 mm) Top Rail, 3" (76 mm) Bottom Rail, and Low Profile Threshold. Standard features include stiles for Butt Hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and Five-Point Locking Hardware.
