CRL-U.S. Aluminum 925 Left Swing-Out Patio Door Hinge Black Bronze
CRL-U.S. Aluminum 925 Left Swing-Out Patio Door Hinge Black Bronze
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PNL91522R0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
- Accepts 1" (25 mm) insulating glass
- Five-point locking device for enhanced security
- 1/2" low-profile threshold for seamless transitions
- For out-swing applications

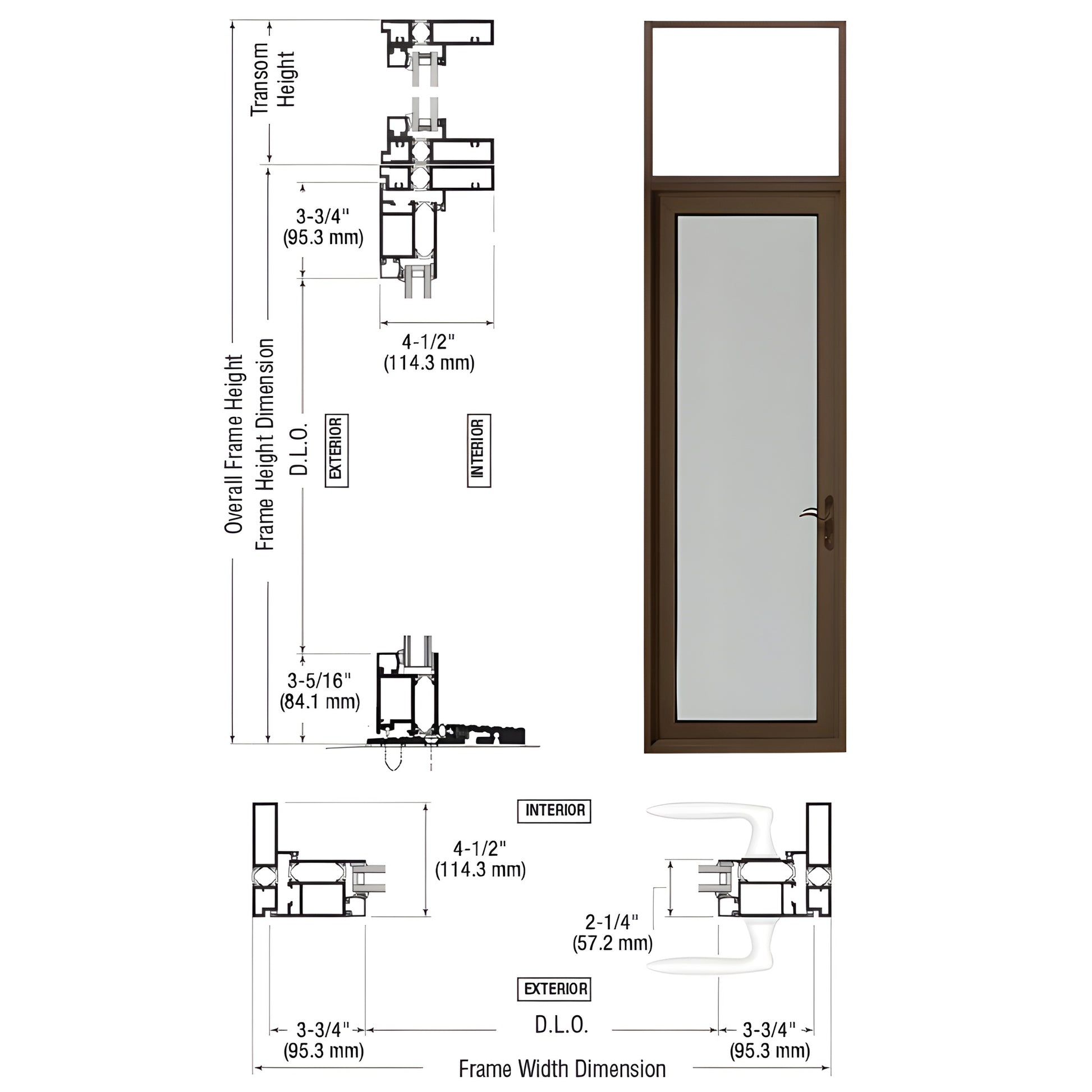

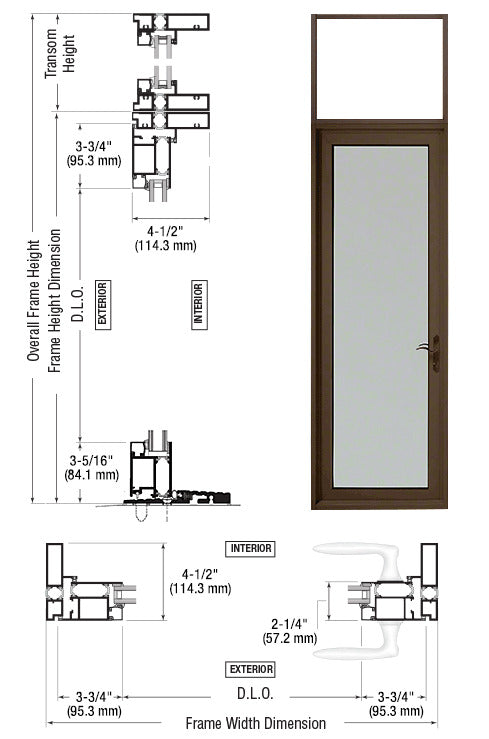

This CRL Series 925 Single Patio Entrance (SKU: PNL91522R0) features a 1" x 4-1/2" transom frame, a 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles and top rail, a 3" (76 mm) bottom rail, and a low-profile threshold. Standard highlights include stiles configured for butt hinge hardware, glass stops sized for 1" (25 mm) tempered glass (by others), and robust five-point locking hardware—making it a secure, energy-efficient out-swing single patio entrance ideal for commercial storefronts and heavy-use exterior doors.
