CRL-U.S. Aluminum 925 Left Swing-Out Patio Door Hinge Clear Anodized
CRL-U.S. Aluminum 925 Left Swing-Out Patio Door Hinge Clear Anodized
Regular price
$4,795.41 CAD
Regular price
Sale price
$4,795.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PNA91511L0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 1" x 4-1/2" (25 x 144 mm) Transom Frame
- Accepts 1" (25 mm) Insulating Glass
- Thermally Broken Door and Frame
- Five-Point Locking Device
- 10" Bottom Rail and Low Profile Threshold for Out Swing Applications

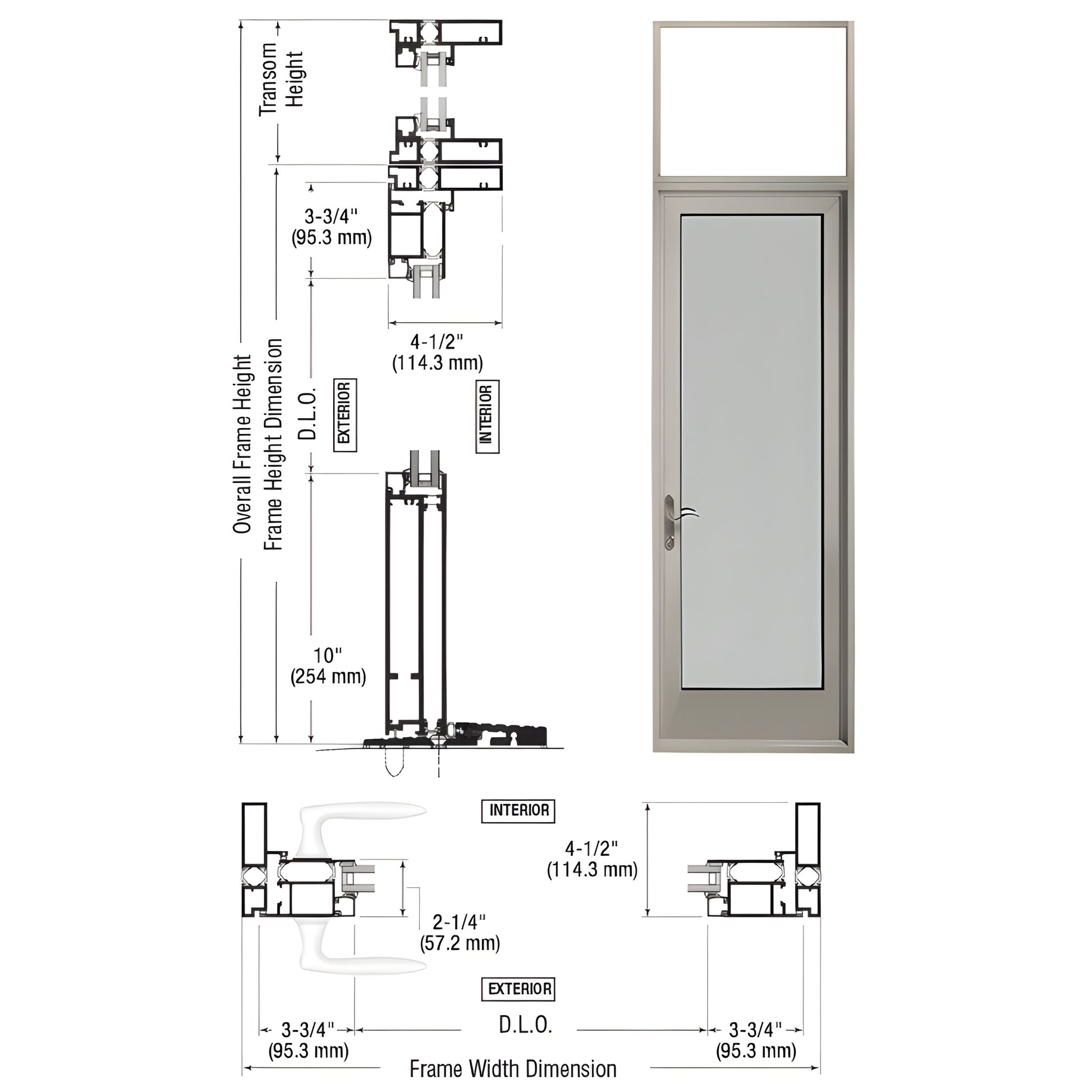

CRL Series 925 Single Patio Door Entrance — durable, thermally broken patio door engineered for energy efficiency and security. Built with a 1" x 4-1/2" (25 x 114.3 mm) transom frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 10" (254 mm) bottom rail, and a low profile threshold. Standard features include stiles configured for butt hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and five-point locking hardware for enhanced perimeter security. Ideal for installations needing thermally broken patio doors with insulating glass and a low-threshold out-swing configuration. SKU: PNA91511L0.
Ready to specify the CRL Series 925 thermally broken patio door? Contact CRL Customer Service or request a quote today.
Specifications
