CRL-U.S. Aluminum 925 Left-Swing Patio Hinge, Bronze Anodized
CRL-U.S. Aluminum 925 Left-Swing Patio Hinge, Bronze Anodized
Regular price
$4,623.59 CAD
Regular price
Sale price
$4,623.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PNL91522L0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
- Accepts 1" (25 mm) Insulating Glass
- Thermally Broken Door and Frame
- Five-Point Locking Device; Standard 3" Bottom Rail and Low Profile Threshold for Out Swing Applications

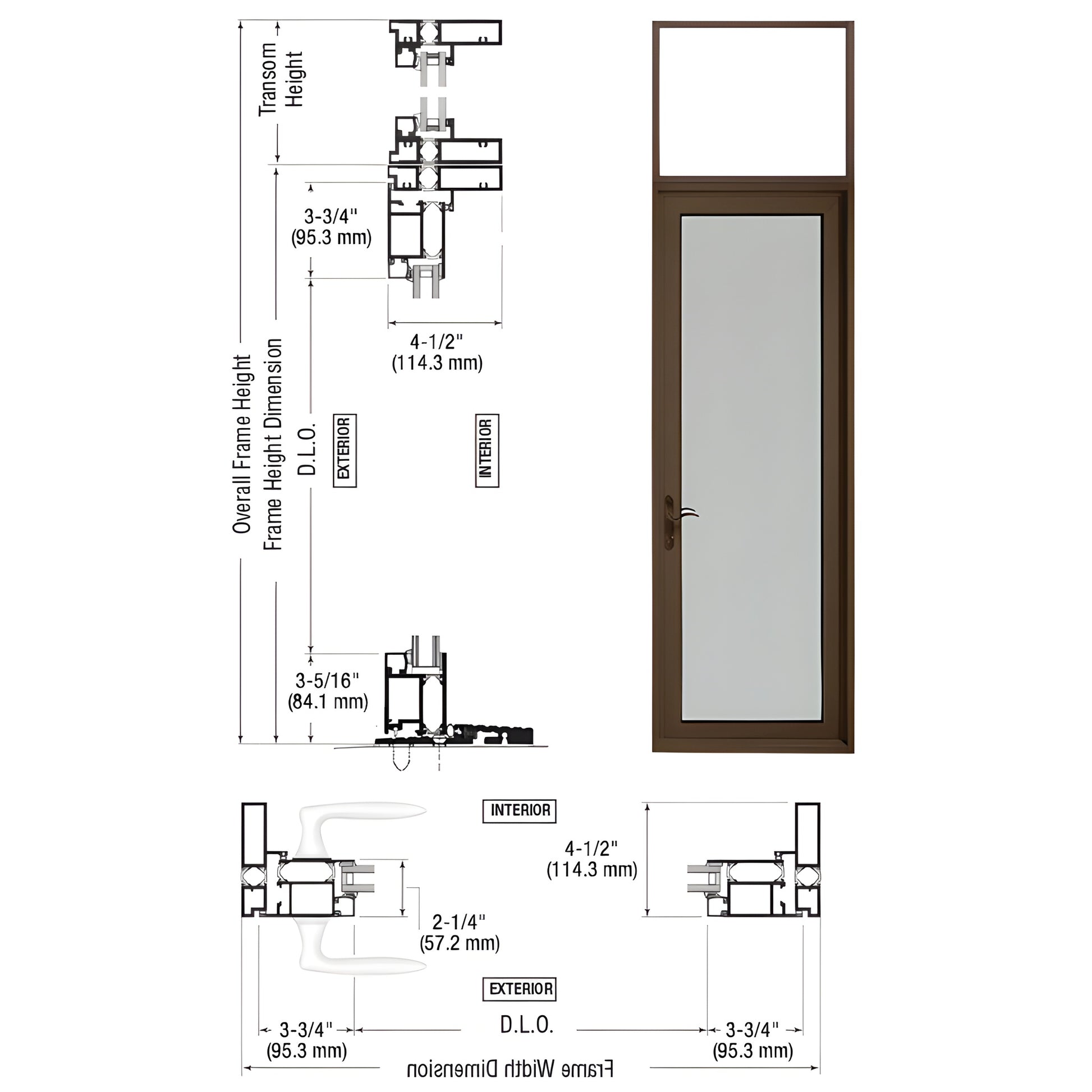

This CRL Series 925 Single Patio Entrance (SKU: PNL91522L0) features a 1" x 4-1/2" (25 x 114.3 mm) transom frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 3" (76 mm) bottom rail, and a low profile threshold. Designed for commercial and residential use, the thermally broken frame improves energy performance while the five-point locking hardware and butt hinge stiles provide enhanced security and reliable operation. Glass stops accommodate 1" (25 mm) tempered insulating glass (by others). Ideal long-tail searches: thermally broken patio entrance door with insulating glass, five-point lock patio door, low profile threshold outswing patio entrance.
Contact CRL or your local distributor to confirm options and place an order.
