CRL-U.S. Aluminum 925 RH Patio Door Hinge, Bronze Black Anodized
CRL-U.S. Aluminum 925 RH Patio Door Hinge, Bronze Black Anodized
Regular price
$5,050.54 CAD
Regular price
Sale price
$5,050.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PNA91522R0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
- Accepts 1" (25 mm) insulating glass
- Thermally broken door and frame for improved energy efficiency
- Five-point locking device for enhanced security
- 10" bottom rail and low-profile threshold for outswing applications

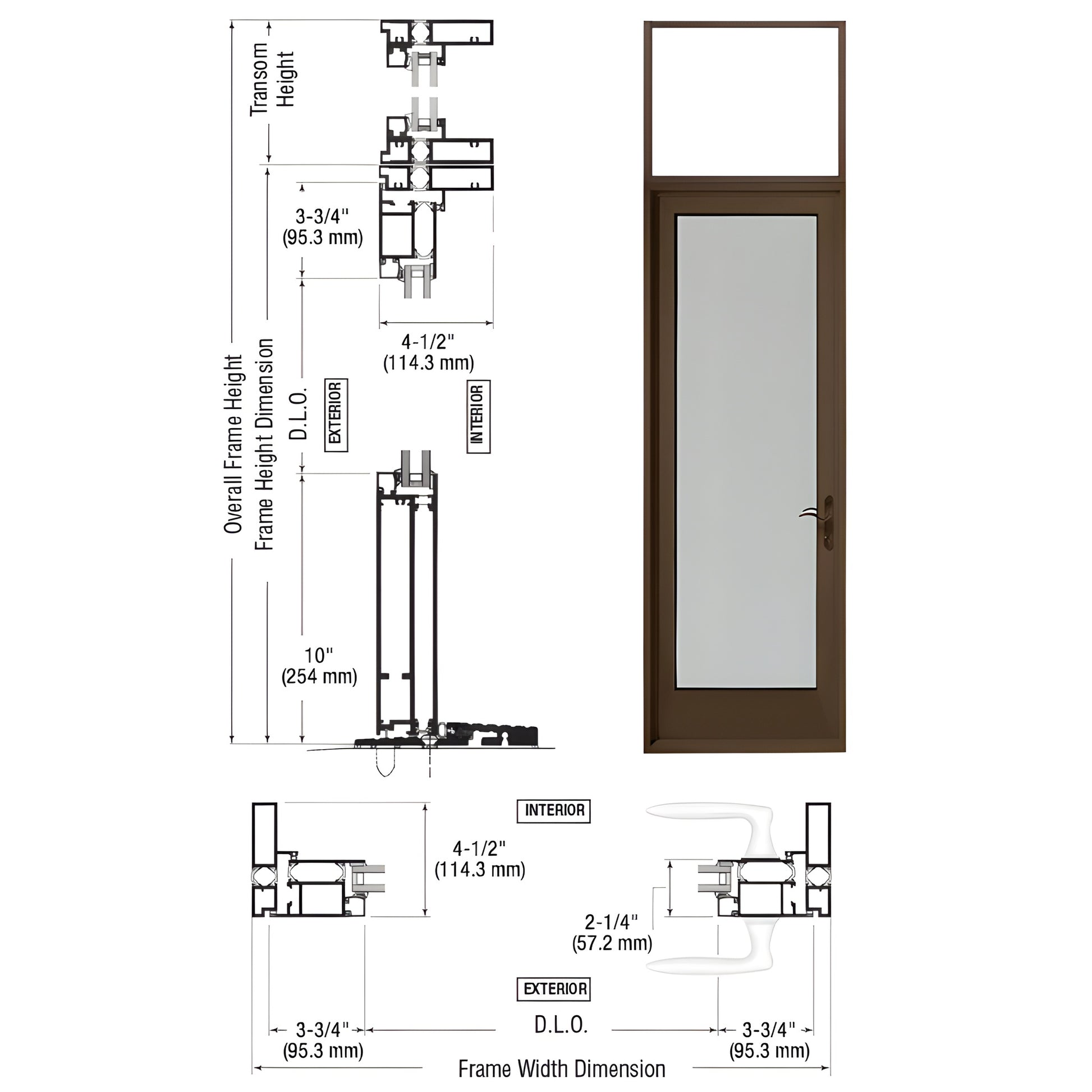

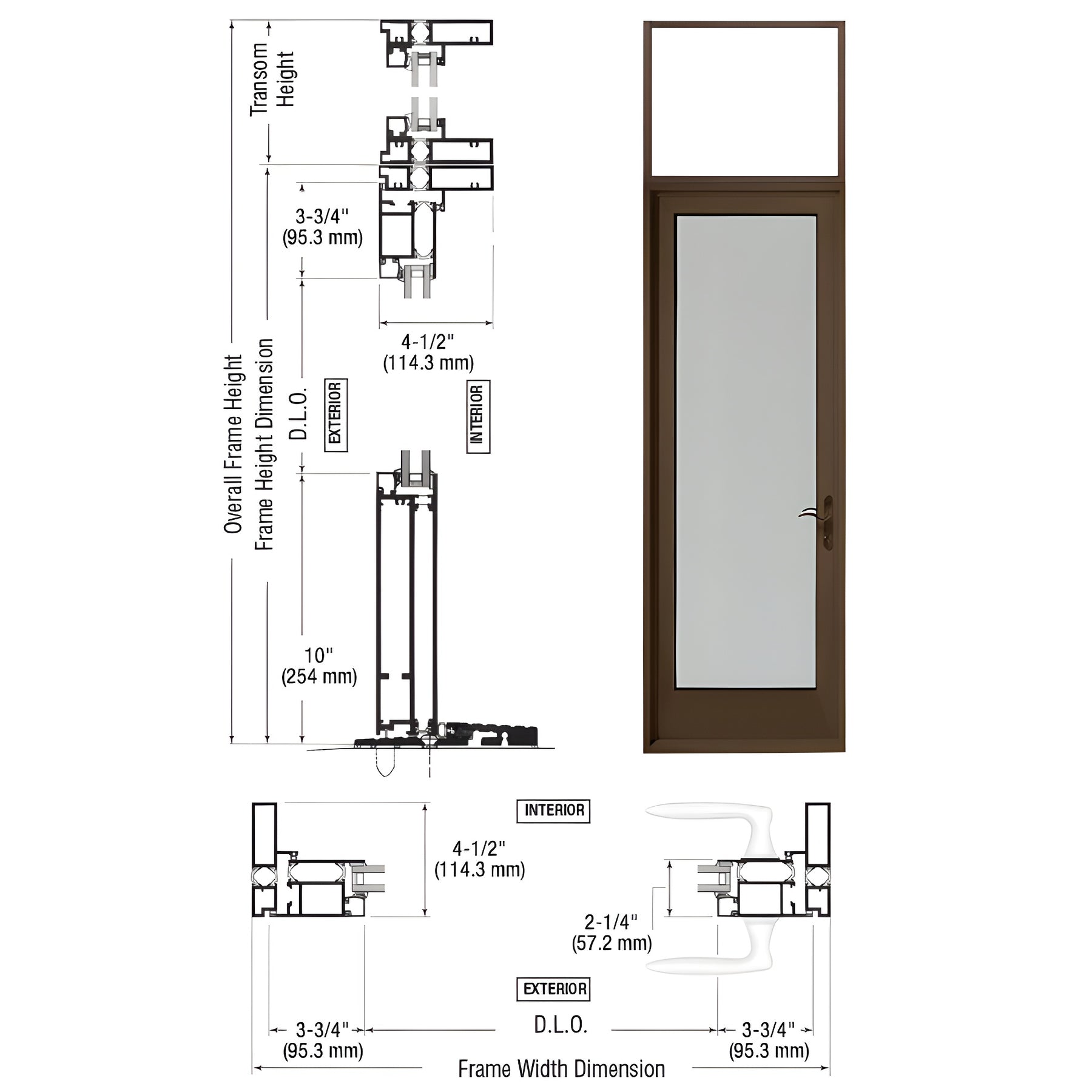

This CRL Series 925 Single Patio Entrance features a 1" x 4-1/2" (25 x 114.3 mm) transom frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 10" (254 mm) bottom rail, and a low-profile threshold. Standard details include stiles configured for butt-hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and five-point locking hardware—making this patio entrance a secure, thermally efficient option for commercial and residential outswing applications. SKU: PNA91522R0.
Order or request a quote for SKU PNA91522R0 today.
Specifications
