CRL-U.S. Aluminum Bronze 550 Black Anodized Offset Pivot Entrance Door
Item# DE51222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

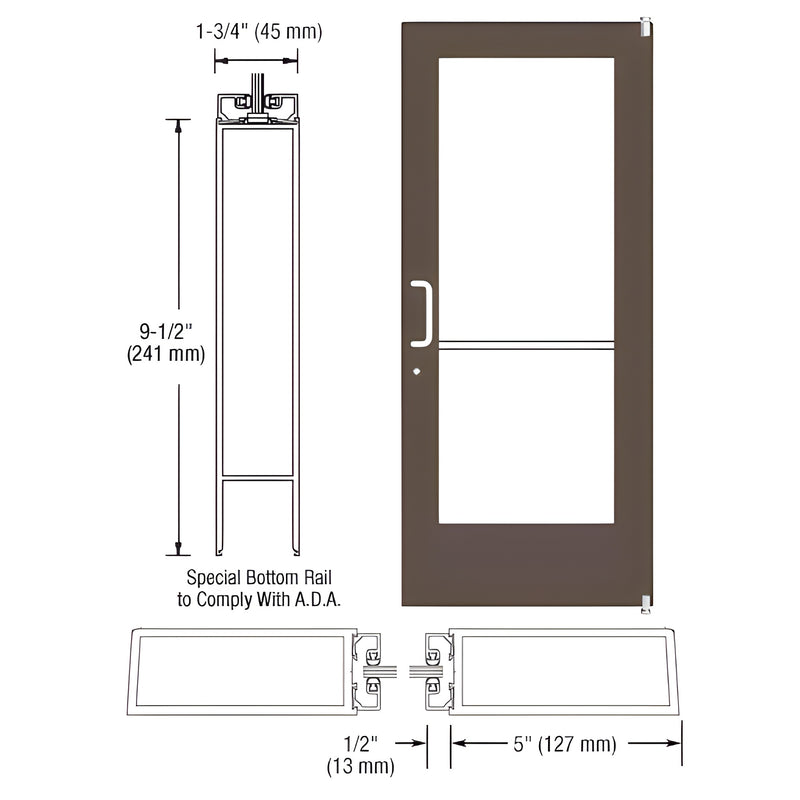

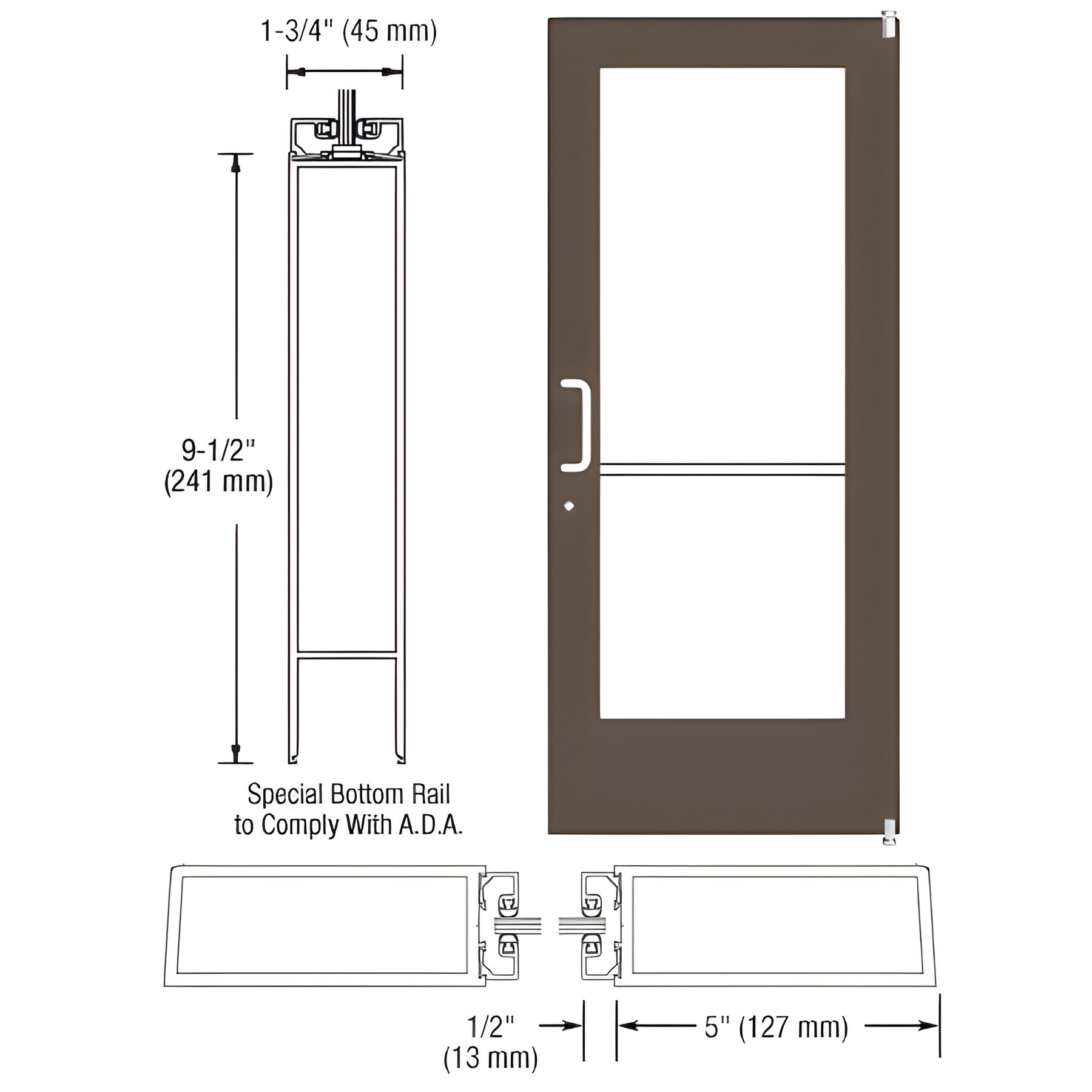

This Custom Wide Stile Entrance Door (SKU: DE51222) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard configuration includes stiles prepared for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accommodate optional commercial hardware applications.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor.
Designed for commercial entrances and storefronts that require a custom wide stile door for tempered glass and ADA compliance. Contact us to confirm options and place your order.
