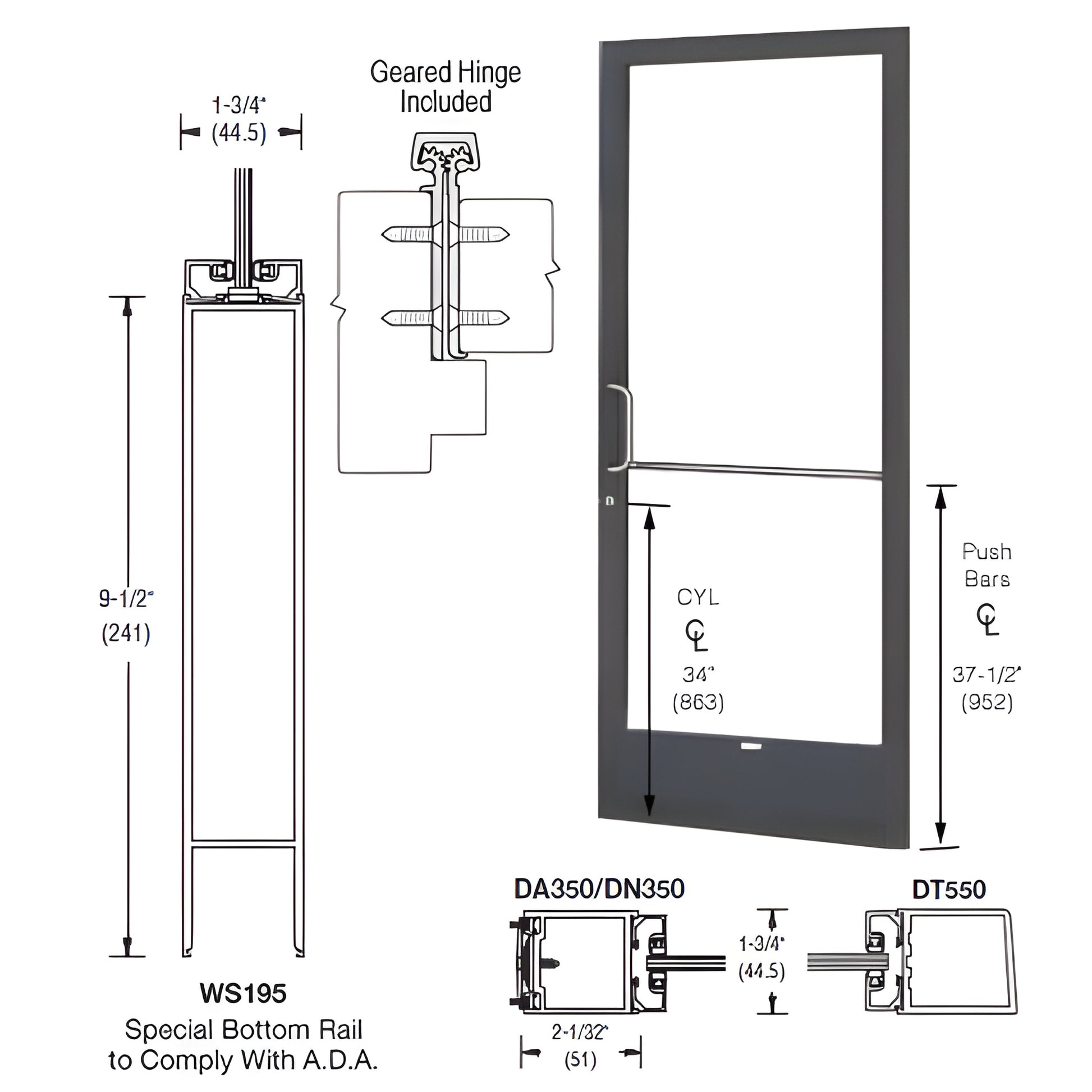

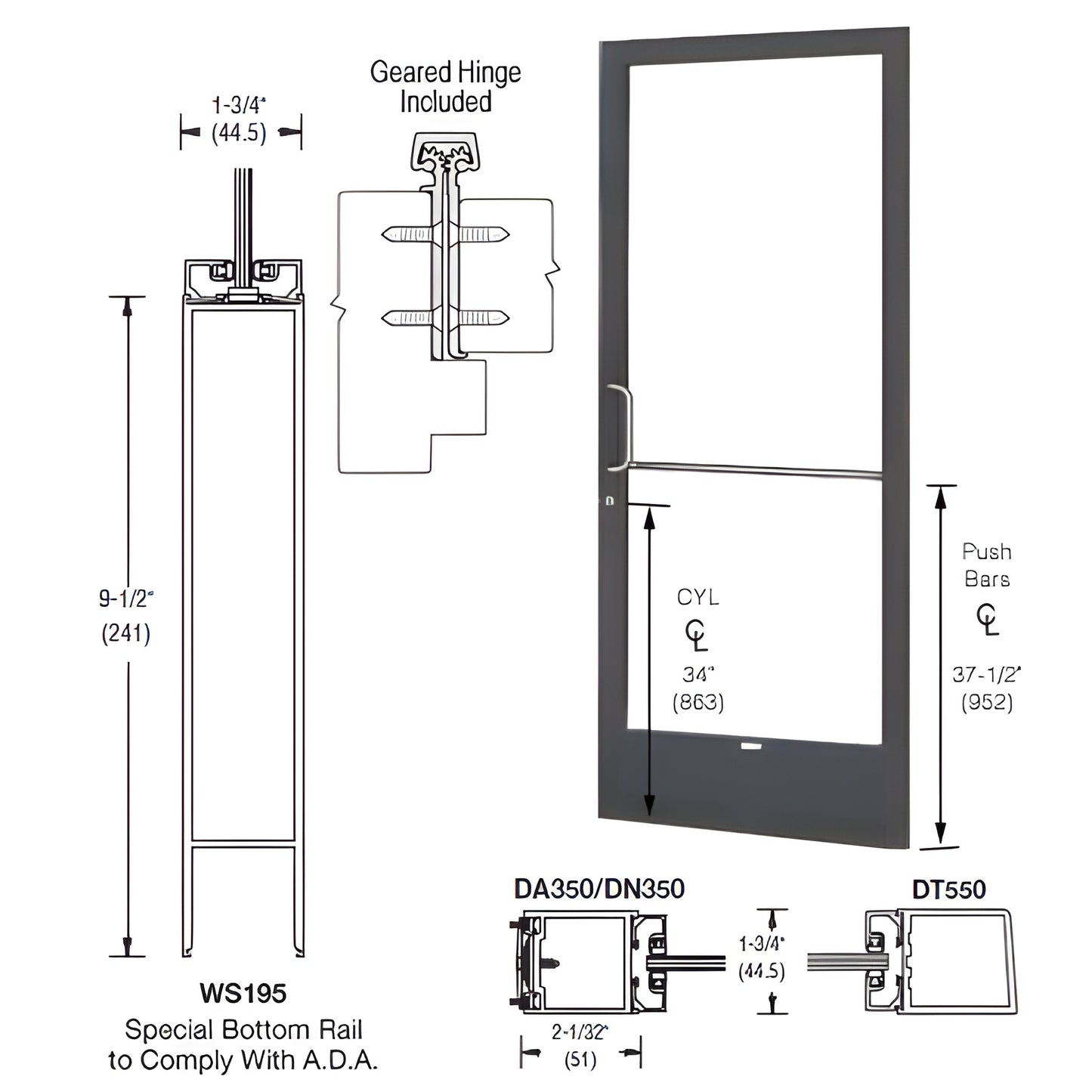

CRL-U.S. 250 Alum Bronze Narrow 3'x7' ADA Glass Door, Geared Hinge

• 250 Narrow Stile Door with 9-1/2" (241 mm) ADA Bottom Rail for a 36" x 84" (914 mm x 2.13 m) active leaf of pair
• Prepped for DH299 geared hinges (included)
• Prepped for standard DH184 3-point lock, DH004 cylinders, LI001 indicator, and cylinder guard (included)
• Prepped for standard PR032/PR034 push-pull hardware (included)
• Accommodates 1" (25 mm) glazing (not included); 1/4" or 3/16" (6 or 5 mm) also available

Stock program for fast delivery: When you need a quality narrow stile aluminum door in a hurry, our Stocking Program provides ready-to-ship 250 Narrow Stile Doors for exterior and interior applications. Available in Clear Anodized and Bronze Anodized finishes, sold as single doors or pairs in Offset Pivot and Center Pivot configurations.

Doors include standard 2" (51 mm) stiles, 2-1/8" (54 mm) top rails, and 9-1/2" (241 mm) ADA access bottom rails. Standard hardware and glazing-ready features: push bar, offset pull handle, panic exit devices (select models), lock cylinder, glass stops, and glazing gaskets. You supply the glazing. Doors are packed for immediate shipment or pick up from U.S. Aluminum and CRL Service Centers.

Standard features: Offset pivots – Push bar and offset pull handle – Hookbolt lock (single doors) – Three-point lock (paired doors) – Lock indicator – Cylinders – Cylinder guard – Glazing gaskets

Available options: Panic devices – Continuous geared hinges – Butt hinges – Vanguard Security astragal

SKU: 1CD22822LA36

Ready to order or need lead-time details? Contact CRL Customer
