CRL-U.S. Aluminum 250 Series 3'x7' Narrow Stile Active, Geared Hinge

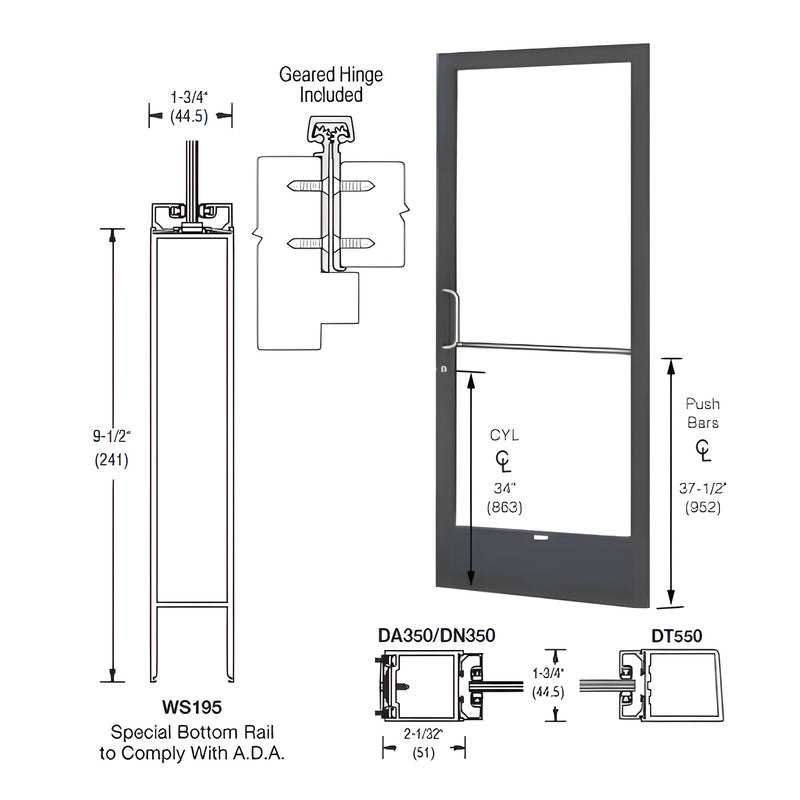

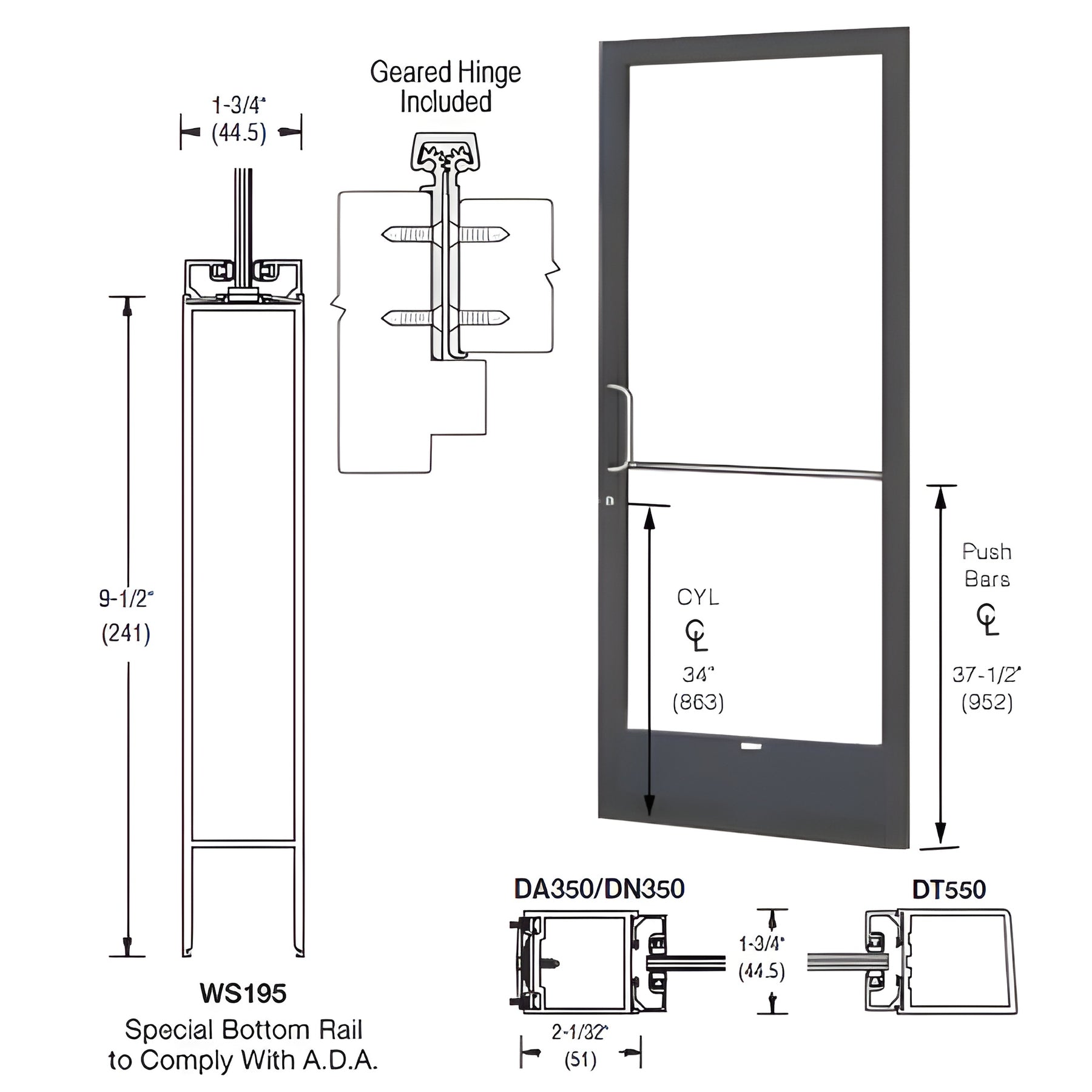

• 250 Narrow Stile Door with 9-1/2" (241 mm) ADA bottom rail for a 36" x 84" (914 mm x 2.13 m) active leaf of pair — ideal narrow stile aluminum door for commercial entrances
• Accommodates 1/4" or 3/16" (6 or 5 mm) glazing (glass not included); 1" (25 mm) glazing option also available
• Prepped for DH299 geared hinges (included)
• Prepped for standard DH184 three-point lock, DH004 cylinders, LI001 indicator, and cylinder guard (included)
• Prepped for standard PR032/PR034 push-pull hardware (included)

When you need a quality door in a hurry, our Stocking Program provides fast availability. U.S. Aluminum offers stock-size narrow stile doors for exterior and interior applications in Clear Anodized and Bronze Anodized finishes. Available as single doors or pairs in Offset Pivot and Center Pivot configurations.

Offset Pivot doors feature 2" (51 mm) stiles, 2-1/8" (54 mm) top rails, and a 9-1/2" (241 mm) ADA access bottom rail. Standard hardware includes a push bar, offset pull handle, lock, lock indicator, cylinder and cylinder guards, glass stops, and glazing gaskets. You supply the glass. Doors are packed for immediate shipment or pickup from U.S. Aluminum and CRL Service Centers. Contact U.S. Aluminum for pricing.

STANDARD FEATURES:

• Push bar and offset pull handle
• Hookbolt lock (single doors)
• Three-point lock (paired doors)
• Lock indicator
• Cylinders and cylinder guards
• Glazing gaskets

AVAILABLE OPTIONS:

• Panic devices
• Continuous geared hinges
• Butt hinges
• Vanguard security astragal
